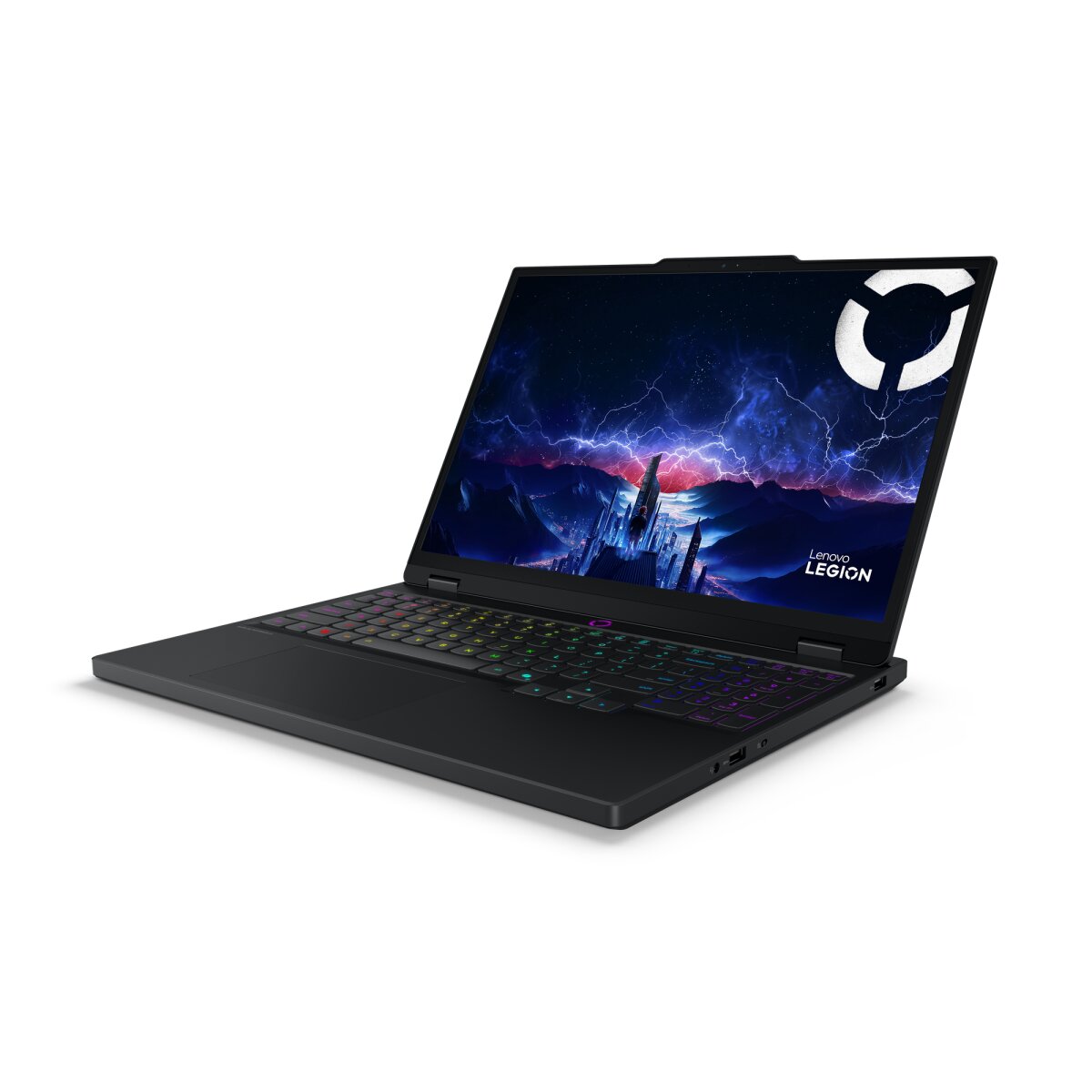

Lenovo Legion 5 - 83F0001AMZ
Lenovo Legion 5
Product code: 83F0001AMZ
- 💻Display diagonal: 15.1 inch
- 🔳Processor model: 255HX
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 1.9 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Display | |
| Display diagonal | 15.1 inch |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 500 cd/m² |
| Panel type | OLED |
| Display surface | Gloss |
| HD type | WQXGA |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 600, Dolby Vision |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Low Blue Light technology | Yes |
| Brand | Lenovo |
| Family | Legion |
| Model name | 5 |
| Part Number | 83F0001AMZ |
| EAN/UPC code | 0198157266810, 198157266810 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Motherboard chipset | Intel HM870 |
| Processor boost frequency | 5.2 GHz |
| Processor model | 255HX |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor cache | 30 MB |
| Processor generation | Intel Core Ultra (Series 2) |
| Efficient-core base frequency | 1.8 GHz |
| Efficient cores | 12 |
| Performance cores | 8 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.5 GHz |
| Maximum turbo power | 160 W |
| Processor base power | 55 W |
| Performance-core base frequency | 2.4 GHz |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory channels | Dual-channel |
| Graphics | |
| Discrete graphics memory type | GDDR7 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 5070 |
| On-board graphics card model | Intel Graphics |
| On-board graphics card family | Intel Graphics |
| Discrete graphics card memory | 8 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Storage media | SSD |
| NVMe | Yes |
| M.2 SSD size | 2242 (22 x 42 mm) |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WWAN | Not installed |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Nahimic Audio |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3287 |
| Speakers manufacturer | Harman Kardon |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard language | Swiss |
| Keyboard backlit zone | 24-zone RGB |
| Copilot key | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system language | German, English, French, Italian |
| Bundled software | Office Trial + Lenovo AI Now |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Continuous video playback time | 10.8 h |
| Battery life (max) | 4.4 h |
| Battery capacity | 80 Wh |
| Fast charging | Yes |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height (rear) | 2.15 cm |
| Height (front) | 2 cm |
| Depth | 255.3 mm |
| Width | 344.9 mm |
| Power | |
| AC adapter power | 245 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 65 W |
| USB Type-C required charging power (max) | 100 W |
| Security | |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) version | 2.0 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 33 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
