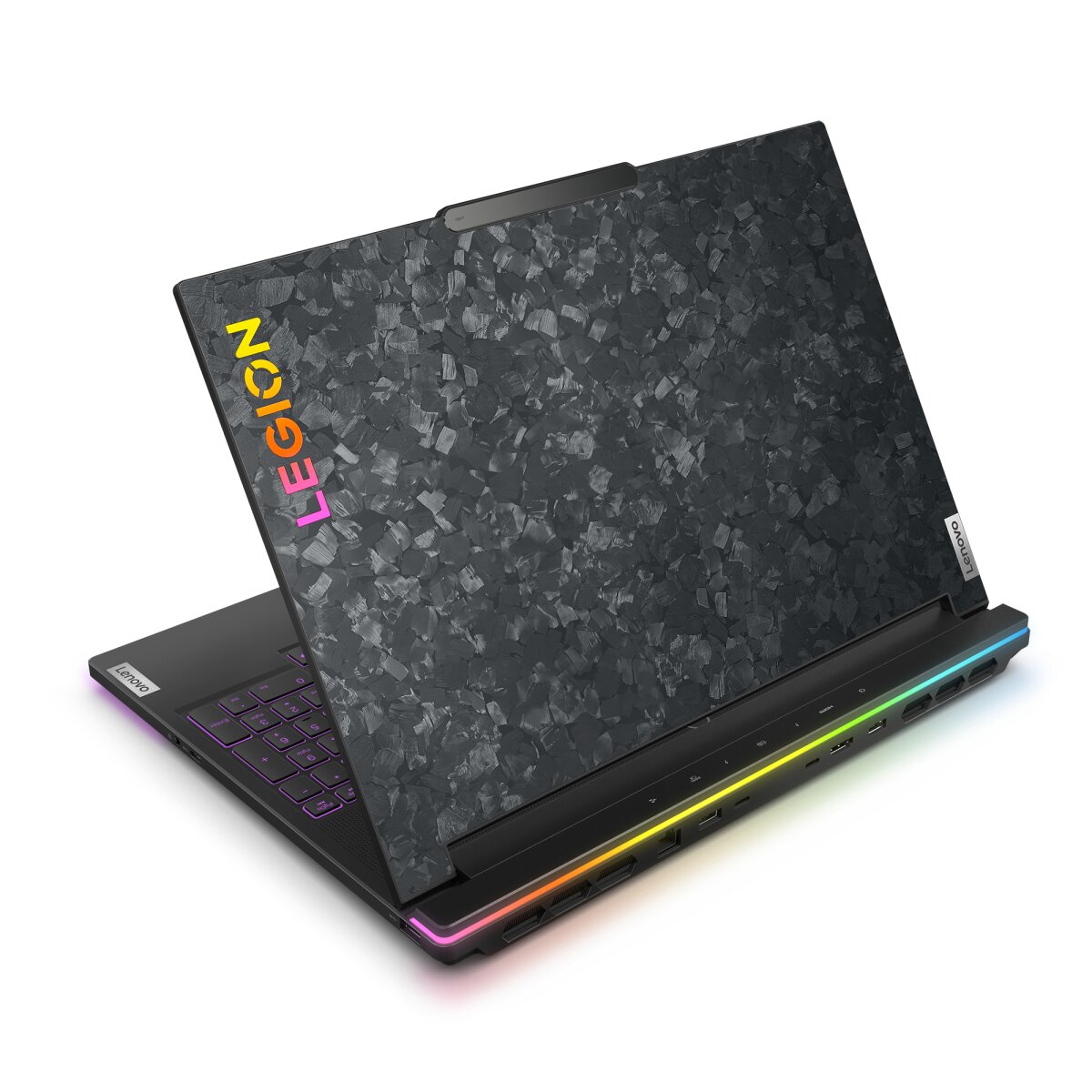

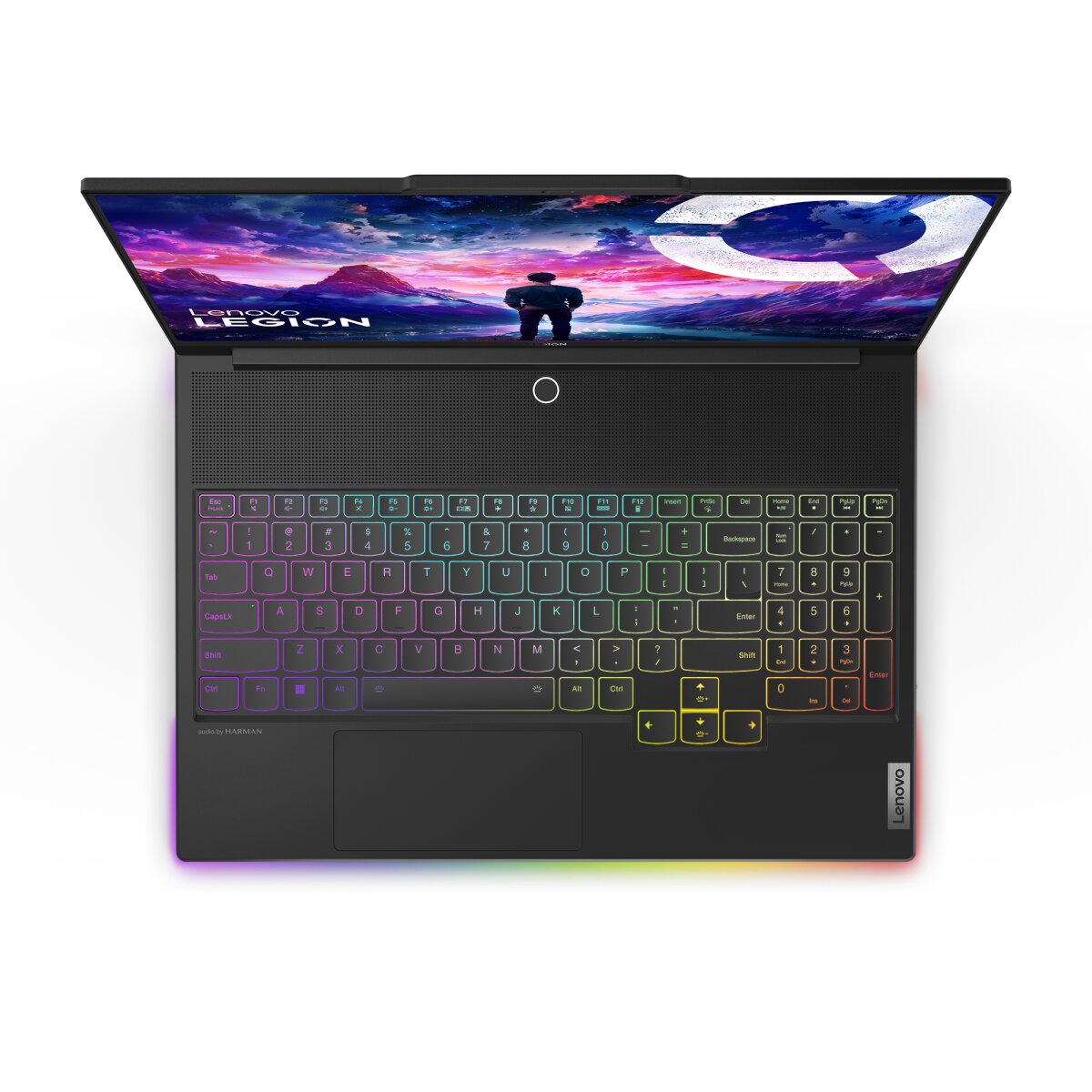

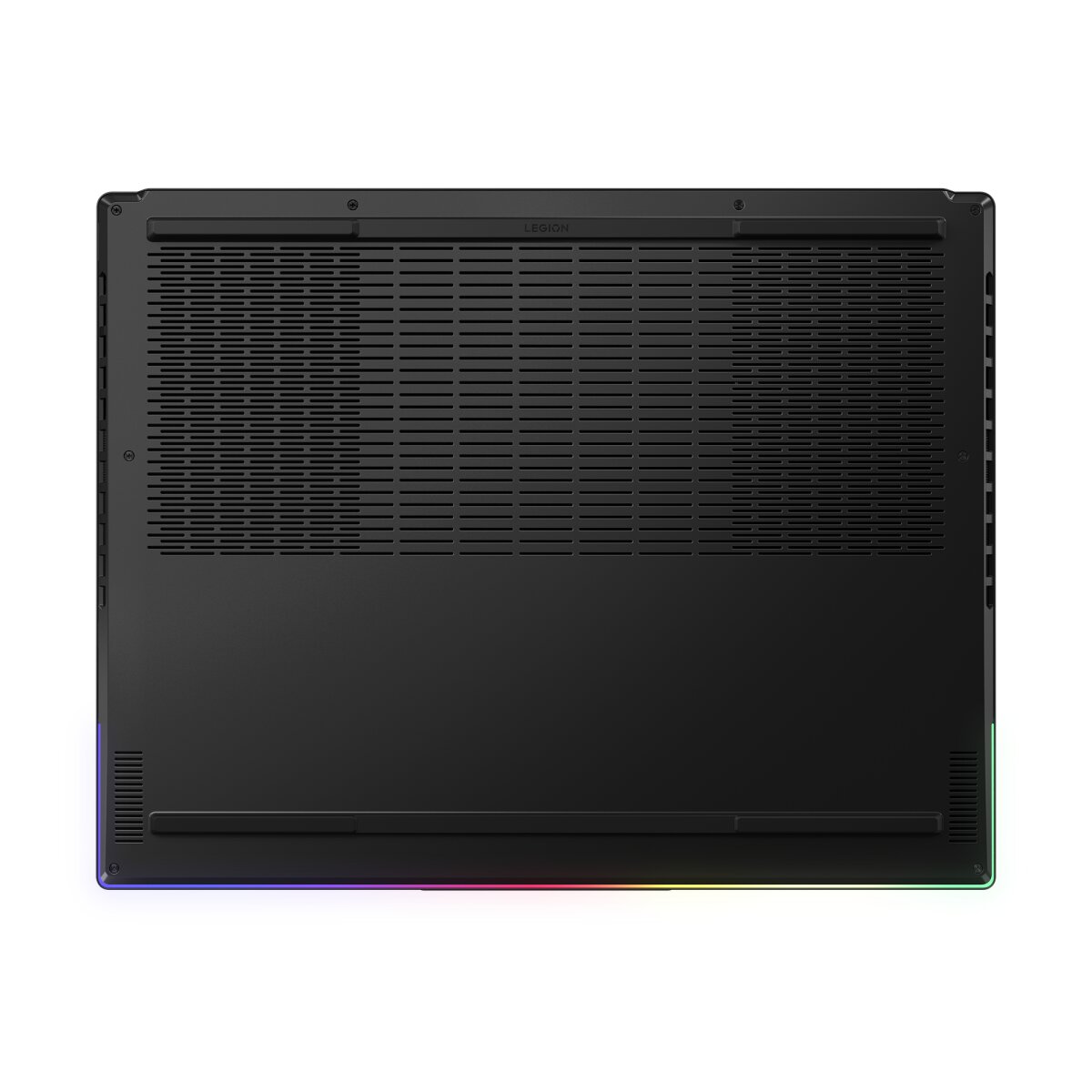

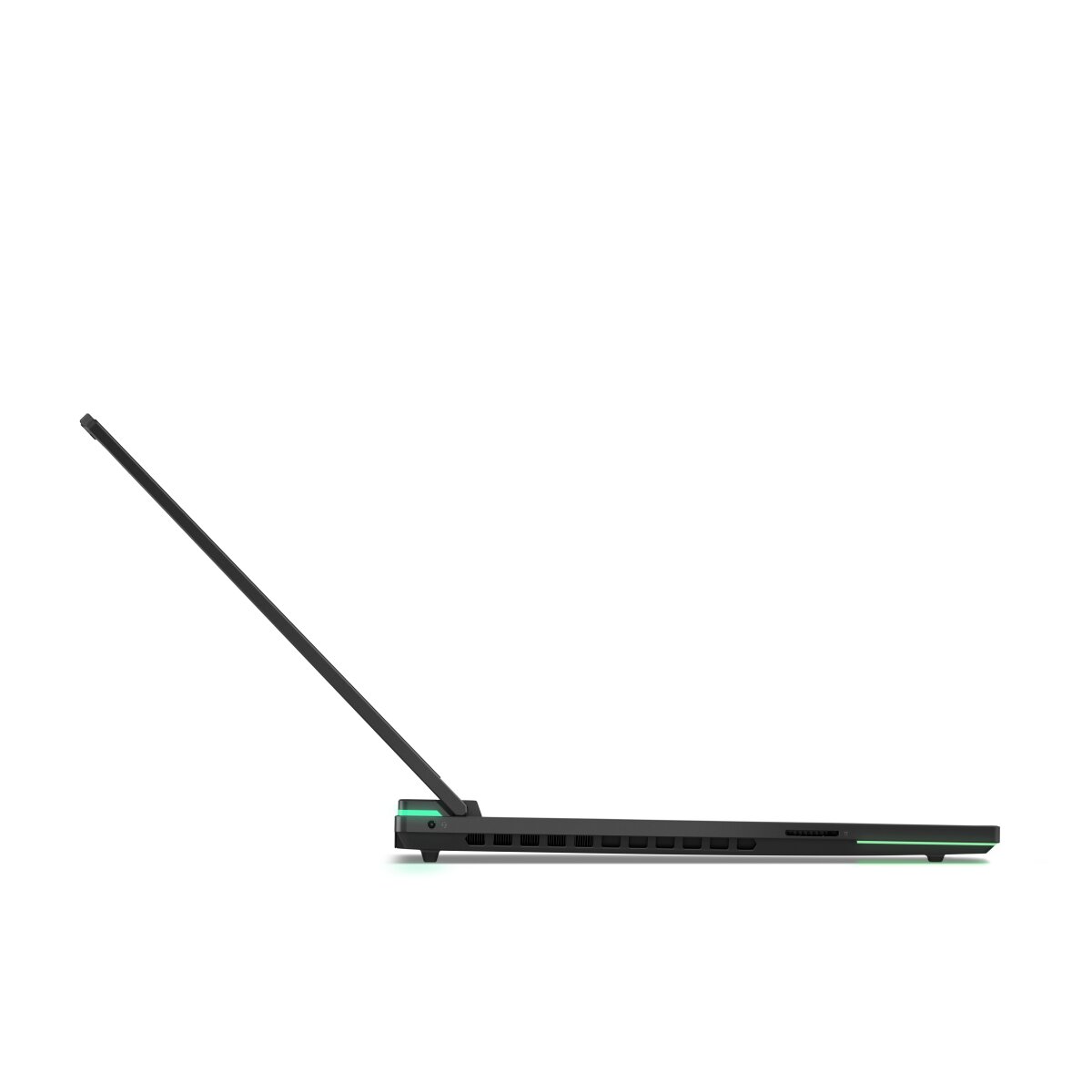

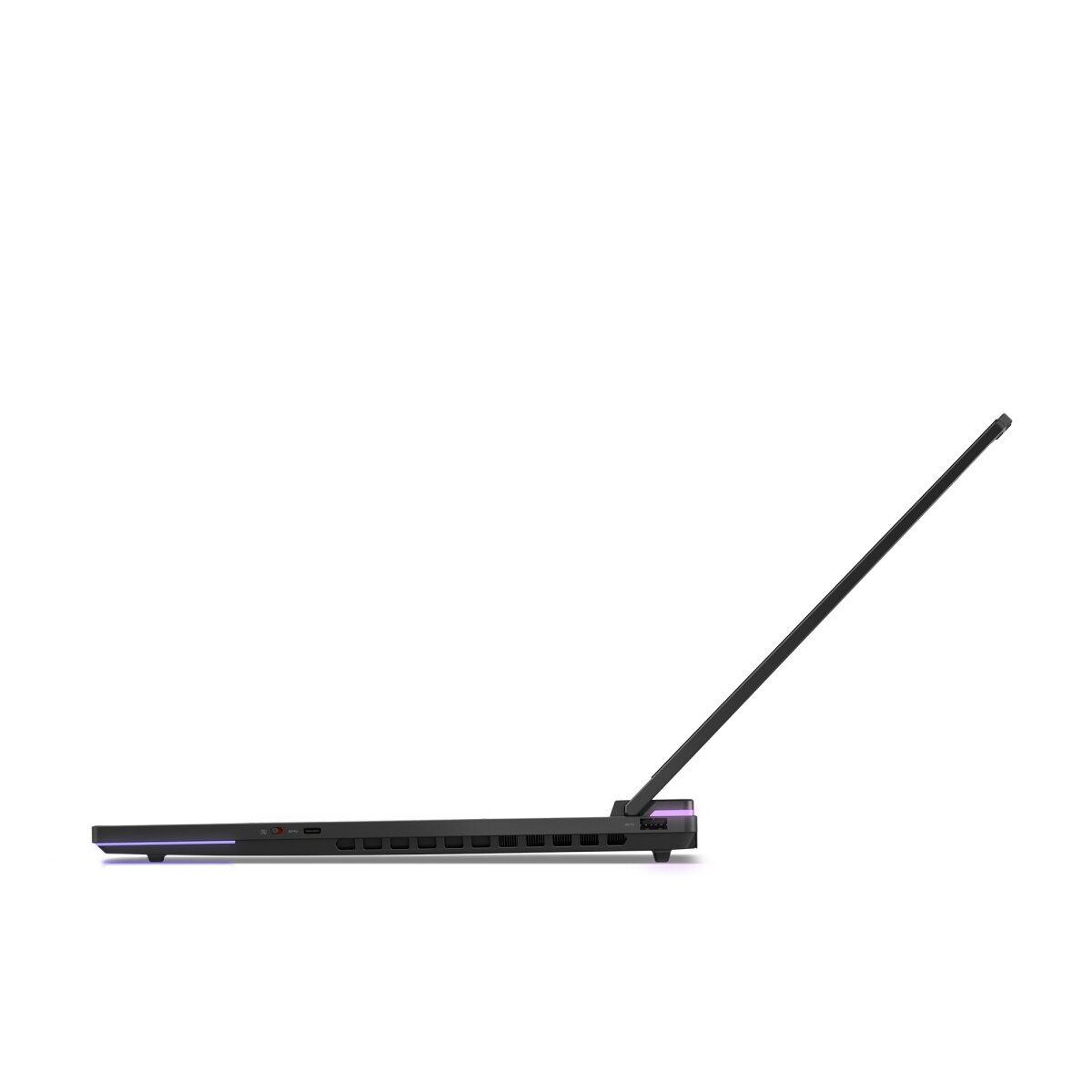

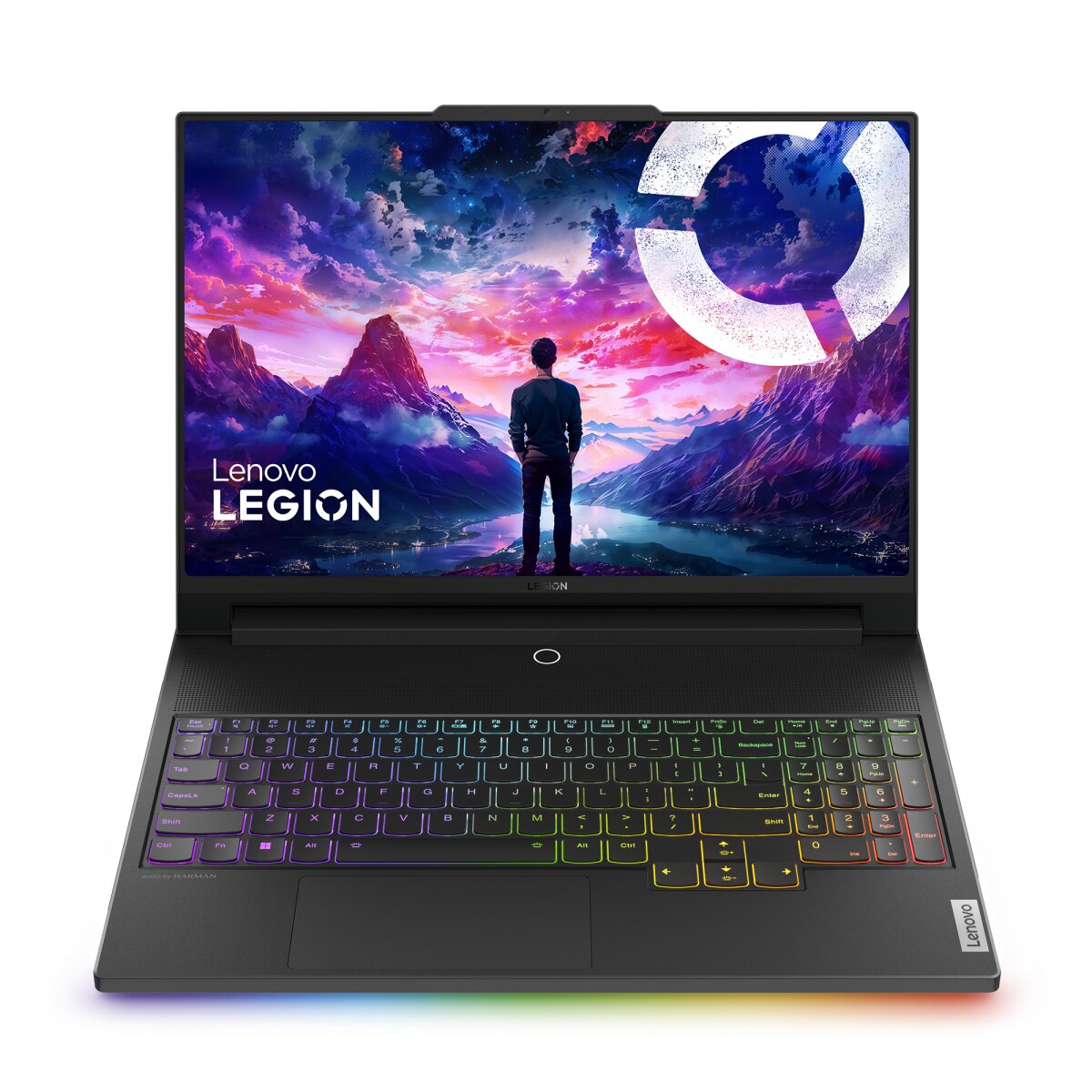

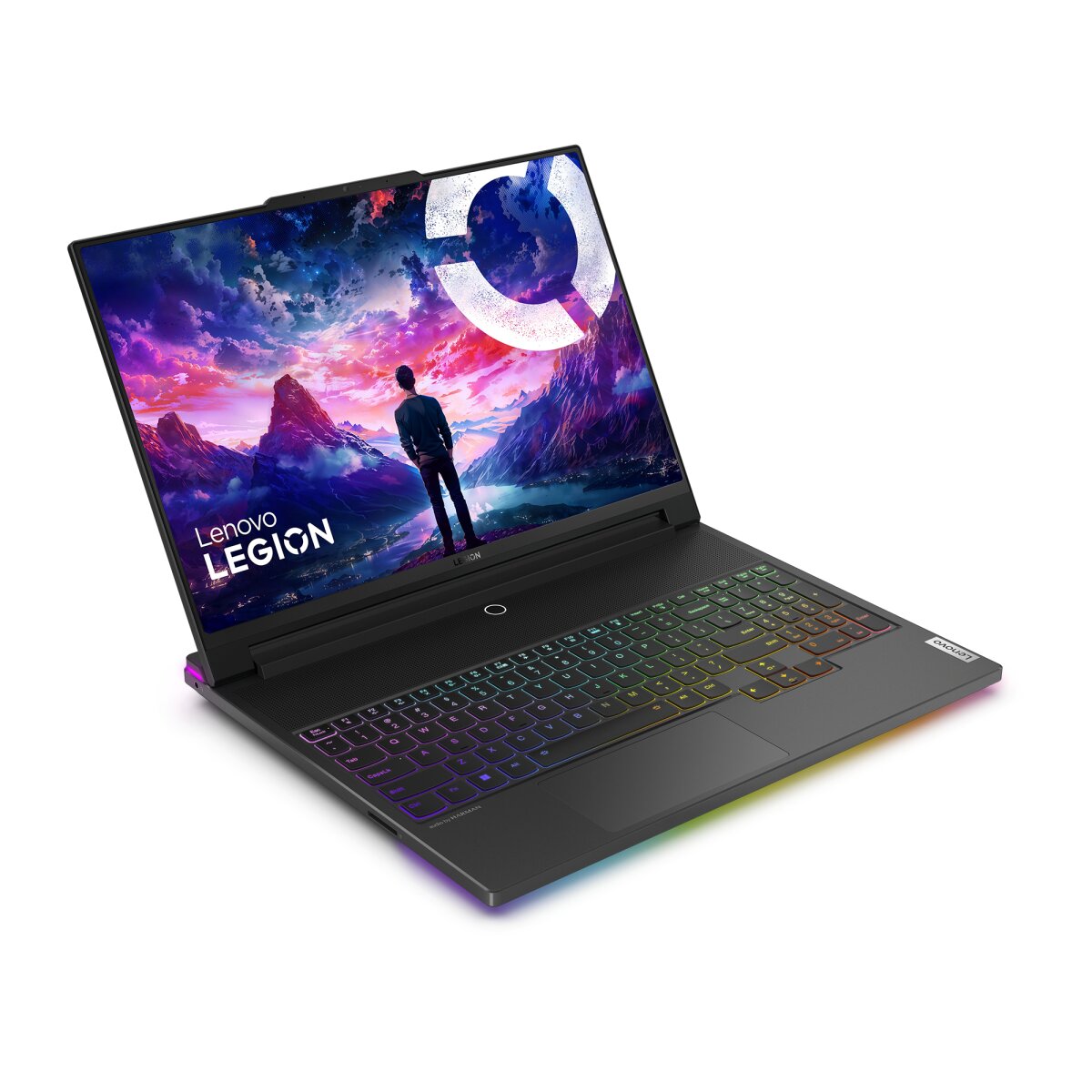

Lenovo Legion 9 - 83AG003YMB
Lenovo Legion 9
Product code: 83AG003YMB
- 💻Display diagonal: 16 inch
- 🔳Processor model: i9-13980HX
- 🎫Internal memory: 64 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 2.56 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 165 Hz |
| Display brightness | 1200 cd/m² |
| Panel type | Mini LED |
| HD type | 3.2K |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 3200 x 2000 pixels |
| High Dynamic Range (HDR) technology | Dolby Vision |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Brand | Lenovo |
| Family | Legion |
| Series | 9 |
| Model name | 9 |
| Part Number | 83AG003YMB |
| EAN/UPC code | 0197531014870, 197531014870 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i9 |
| Motherboard chipset | Intel WM790 |
| Processor boost frequency | 5.6 GHz |
| Processor model | i9-13980HX |
| Processor cores | 24 |
| Processor threads | 32 |
| Processor cache | 36 MB |
| Processor generation | 13th gen Intel Core i9 |
| Efficient cores | 16 |
| Performance cores | 8 |
| Performance-core Max Turbo Frequency | 5.6 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Maximum turbo power | 157 W |
| Processor base power | 55 W |
| Memory | |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 64 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 32 GB |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4080 |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| Discrete graphics card memory | 12 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100, 1000, 2500 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Not installed |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 2.1 |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Front camera HD type | Full HD |
| Privacy type | Privacy shutter |
| Front camera resolution | 1920 x 1080 pixels |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard language | Belgian |
| Keyboard backlit zone | Per-key RGB |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system language | German, Dutch, English, French |
| Operating system architecture | 64-bit |
| Trial software | Office |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 99.9 Wh |
| Weight & dimensions | |
| Weight | 2.56 kg |
| Height | 18.9 mm |
| Depth | 277.7 mm |
| Width | 357.7 mm |
| Power | |
| AC adapter power | 330 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| Security | |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
