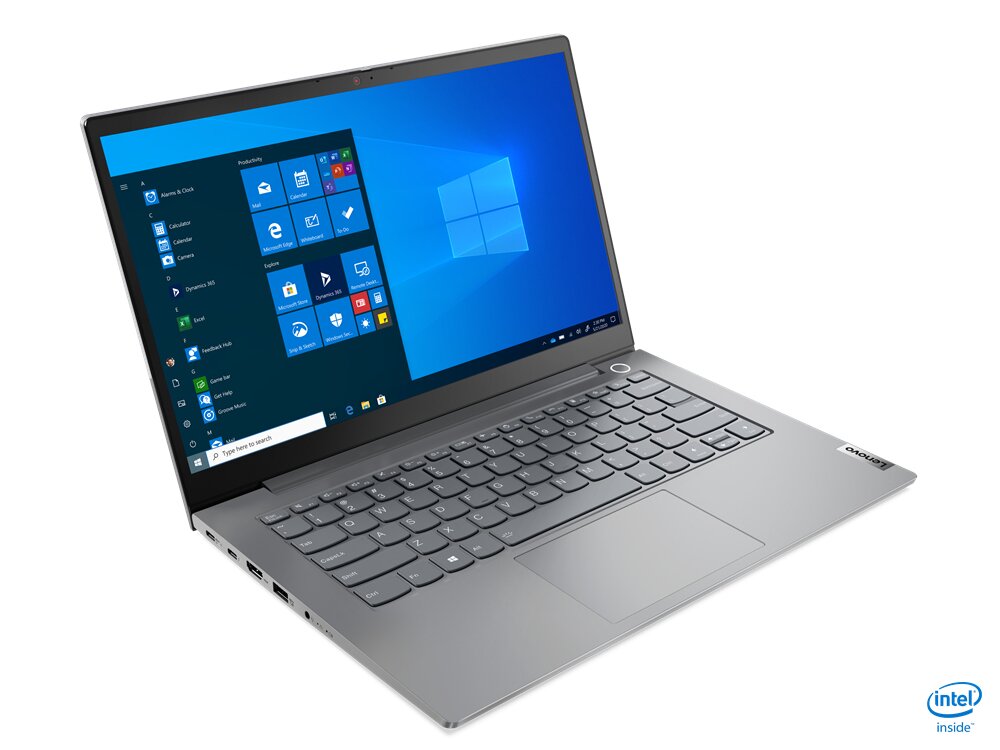

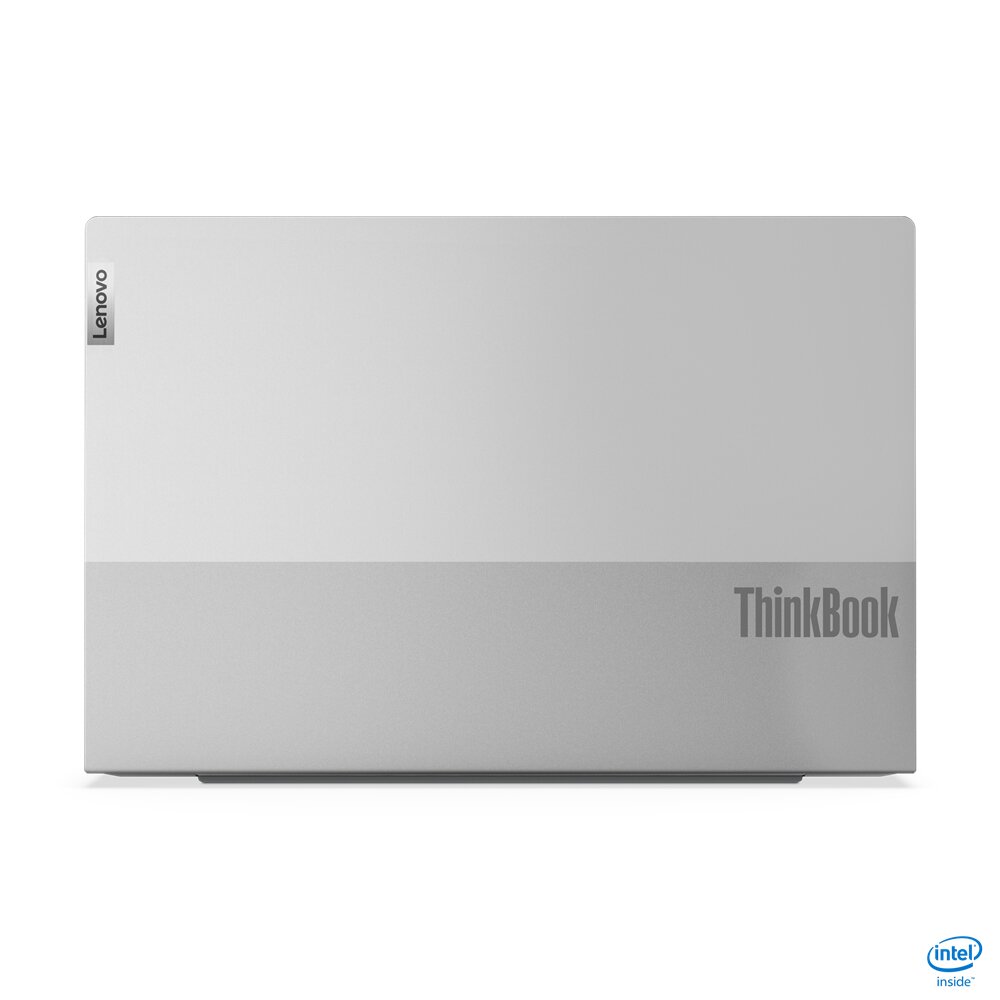

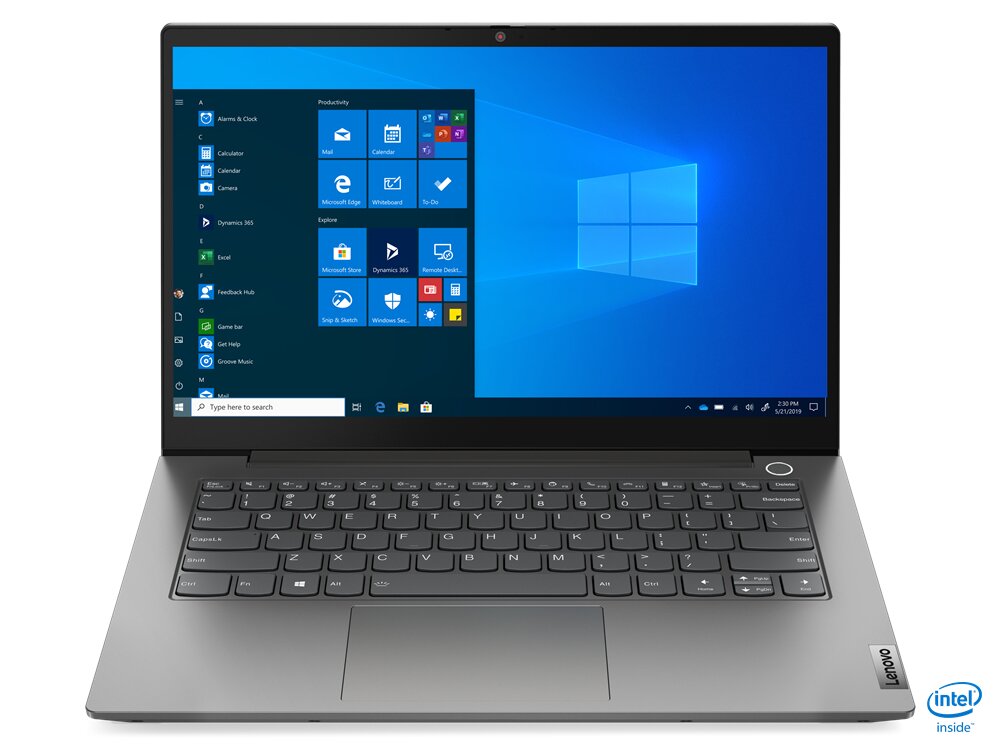

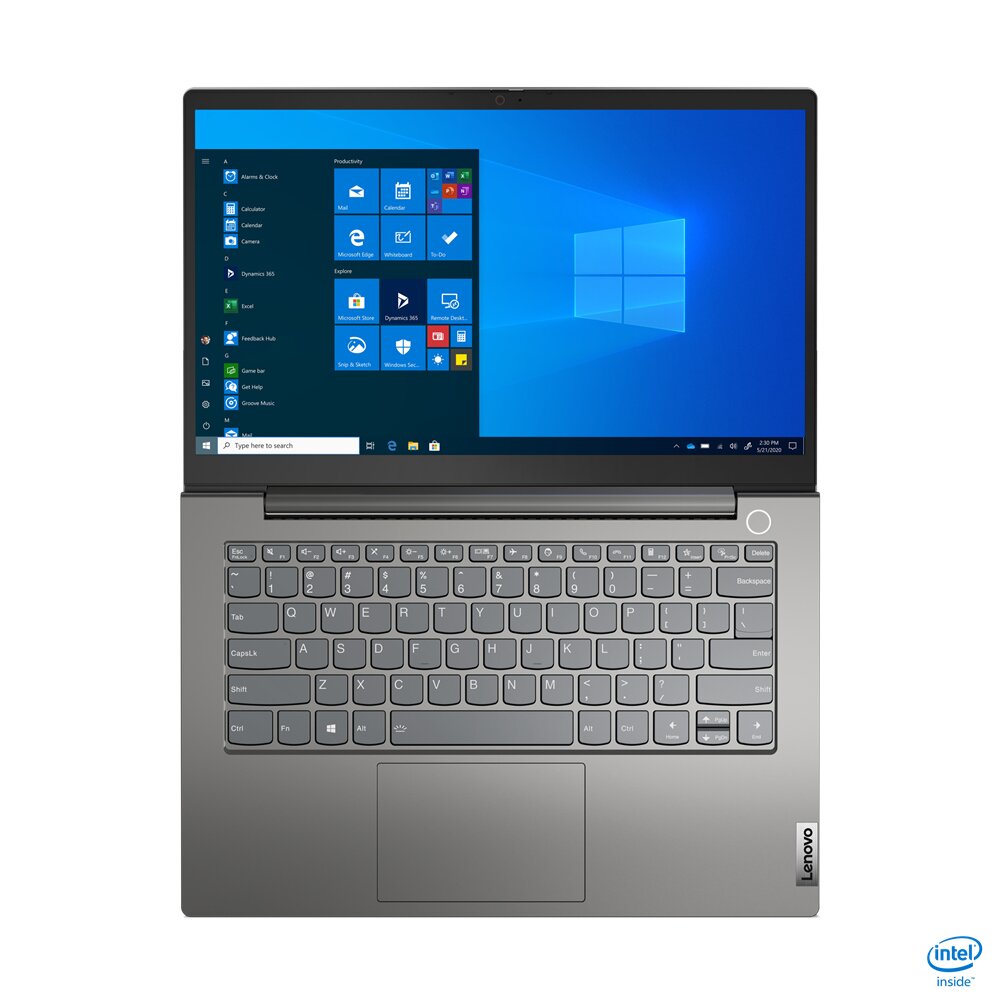

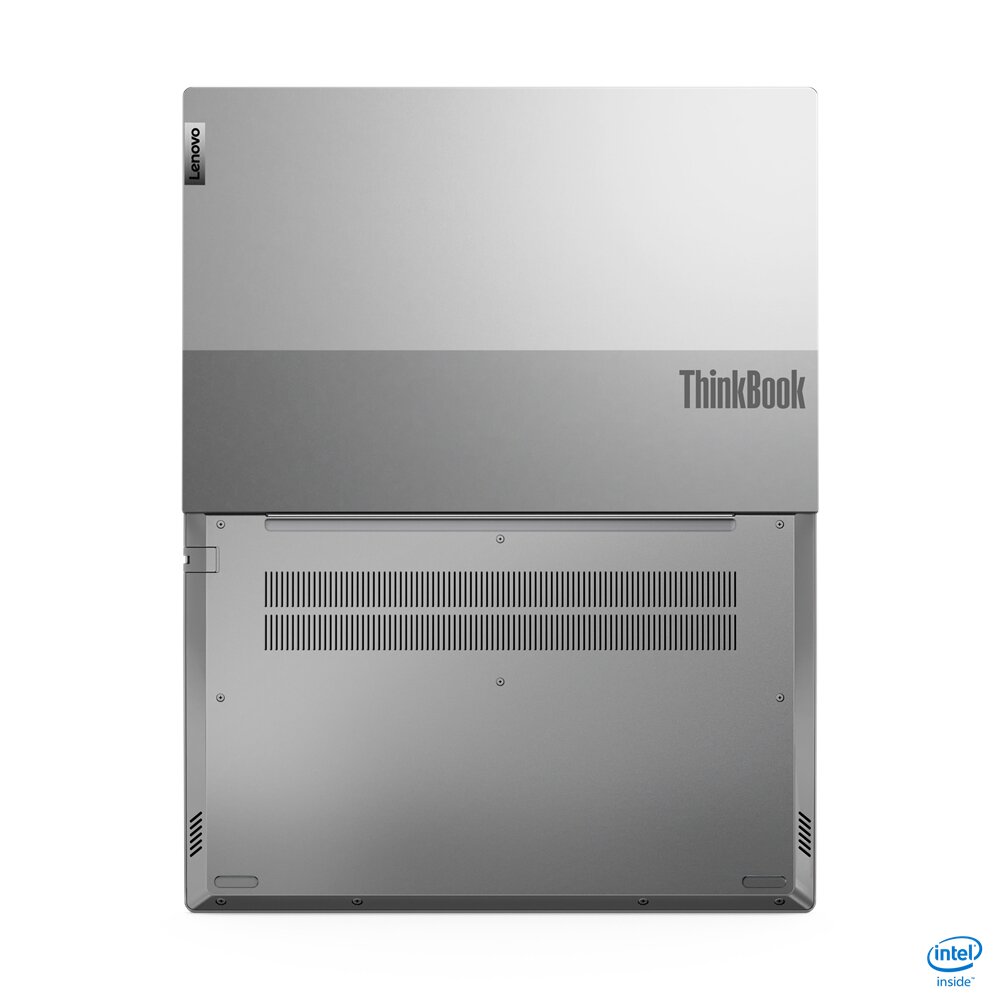

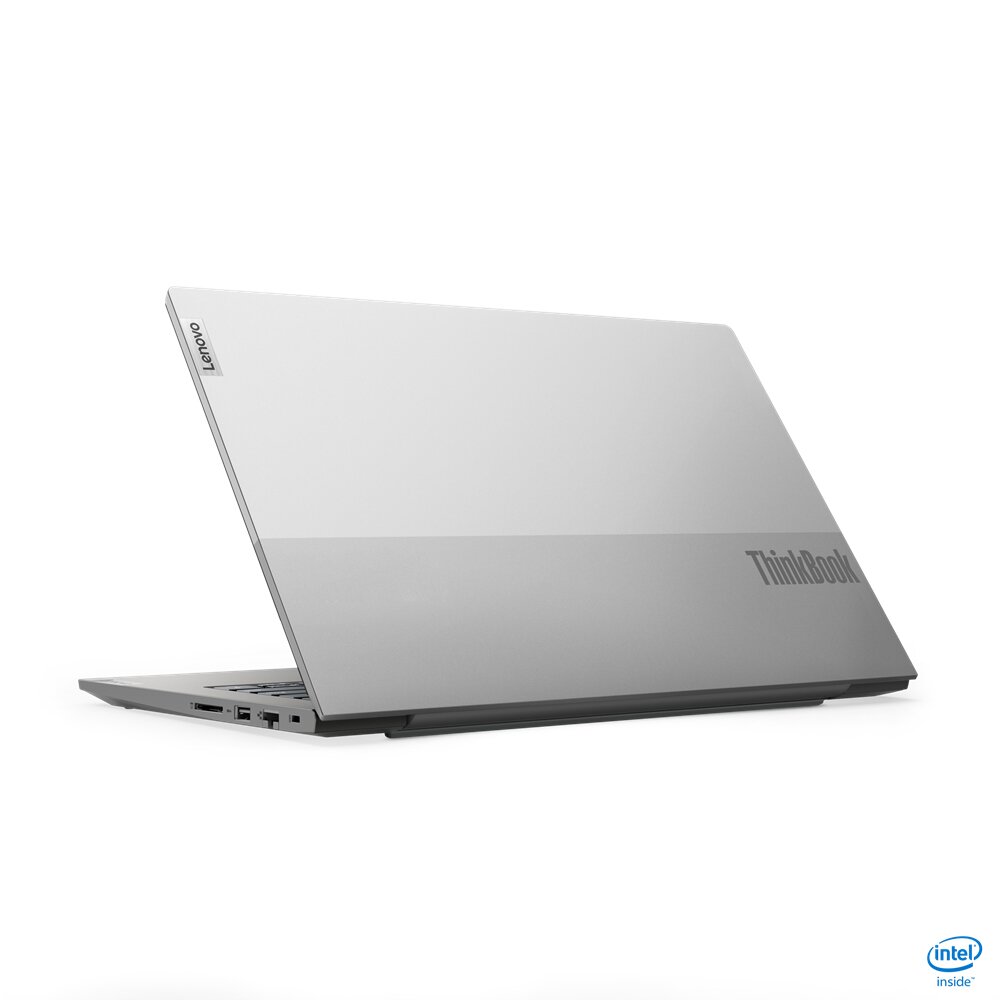

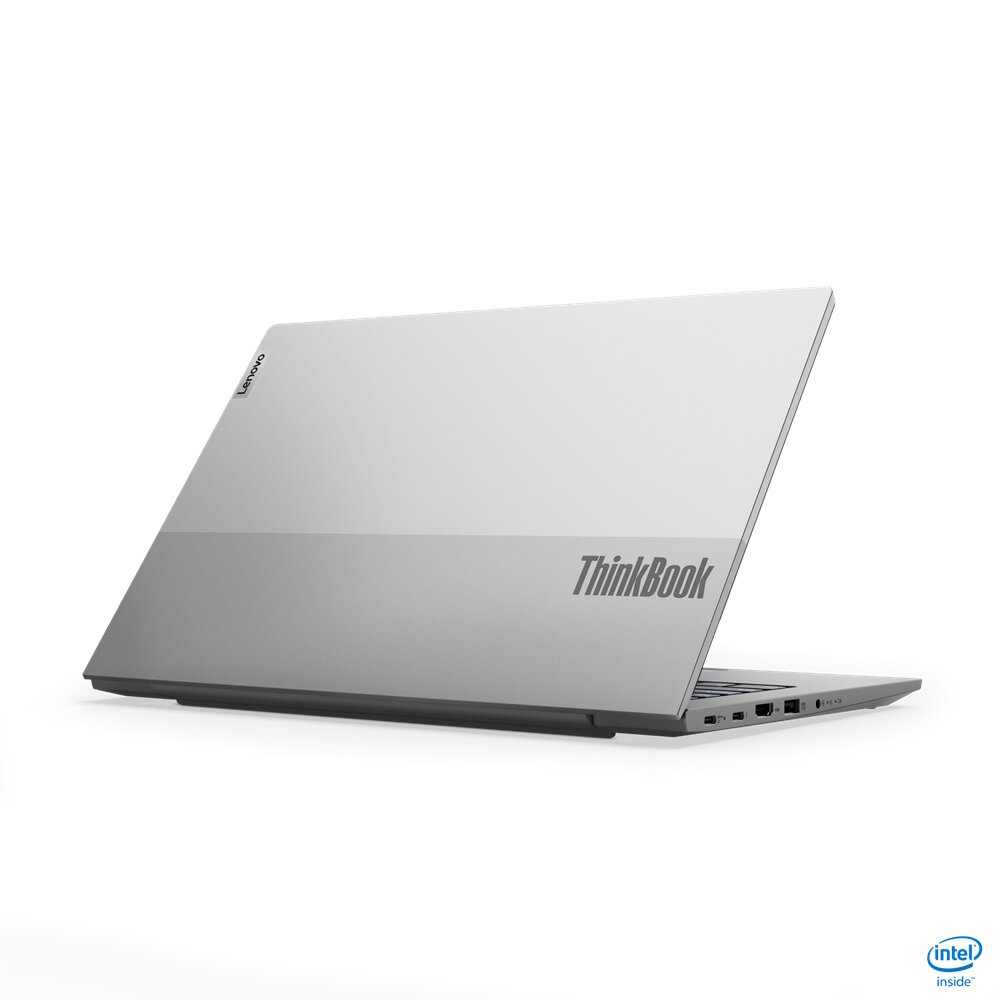

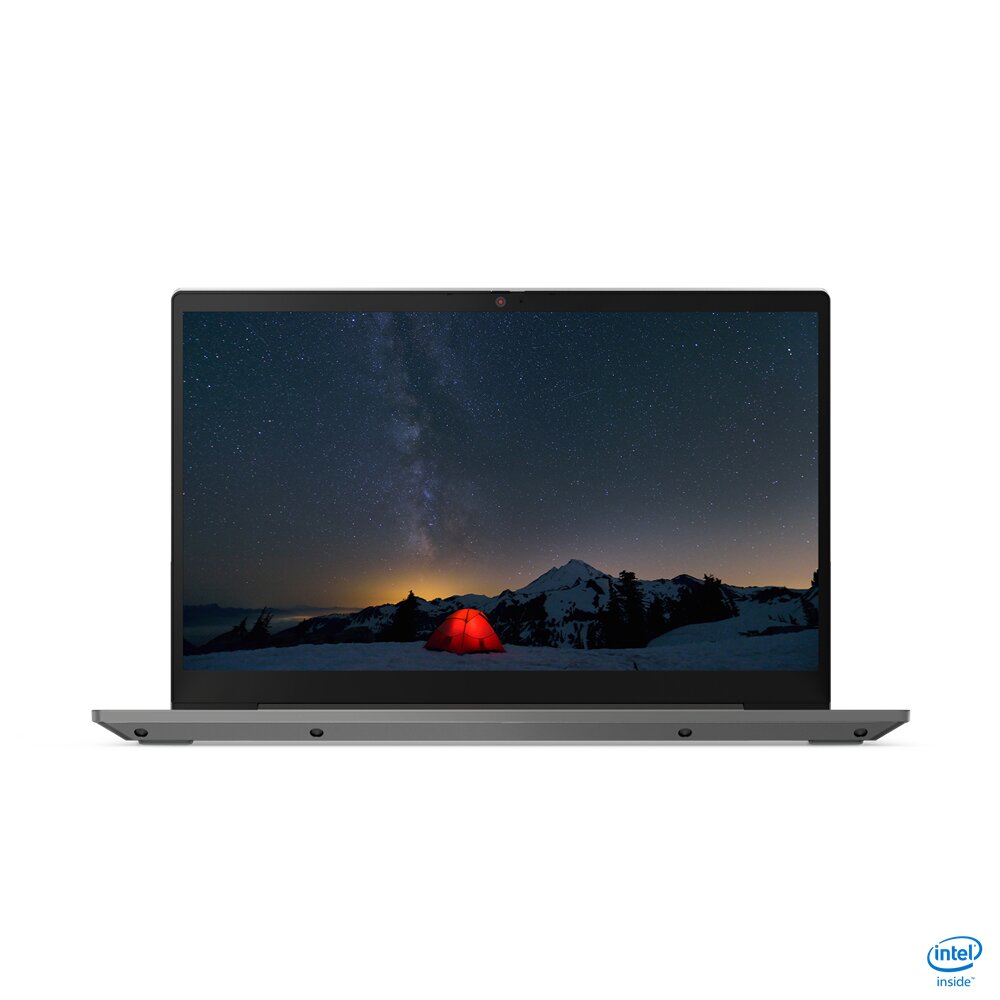

Lenovo ThinkBook 14 - 20VD01D2LM/CUSTOM1
Lenovo ThinkBook 14
Product code: 20VD01D2LM/CUSTOM1
- 💻Display diagonal: 14 inch
- 🔳Processor model: i3-1115G4
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 1.4 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Grey |
| Product type | Laptop |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 14 inch |
| Contrast ratio (typical) | 500:1 |
| Display brightness | 220 cd/m² |
| Panel type | TN |
| HD type | Full HD |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkBook |
| Model name | 14 |
| Part Number | 20VD01D2LM/CUSTOM1 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i3 |
| Processor frequency | 3 GHz |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 4.1 GHz |
| Processor model | i3-1115G4 |
| Processor cores | 2 |
| Processor cache | 6 MB |
| Configurable TDP-up frequency | 3 GHz |
| Configurable TDP-up | 28 W |
| Processor generation | 11th gen Intel Core i3 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 40 GB |
| Memory channels | Dual-channel |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100, 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Not installed |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 1.4b |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Audio |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3287 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Front camera HD type | HD |
| Privacy type | Privacy shutter |
| Front camera resolution | 1280 x 720 pixels |
| Keyboard | |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | No |
| Pointing device | Touchpad |
| Keyboard language | Spanish |
| Software | |
| Operating system installed | Windows 11 Pro |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 6 h |
| Battery capacity | 45 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Weight & dimensions | |
| Weight | 1.4 kg |
| Height | 17.9 mm |
| Depth | 218 mm |
| Width | 323 mm |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
