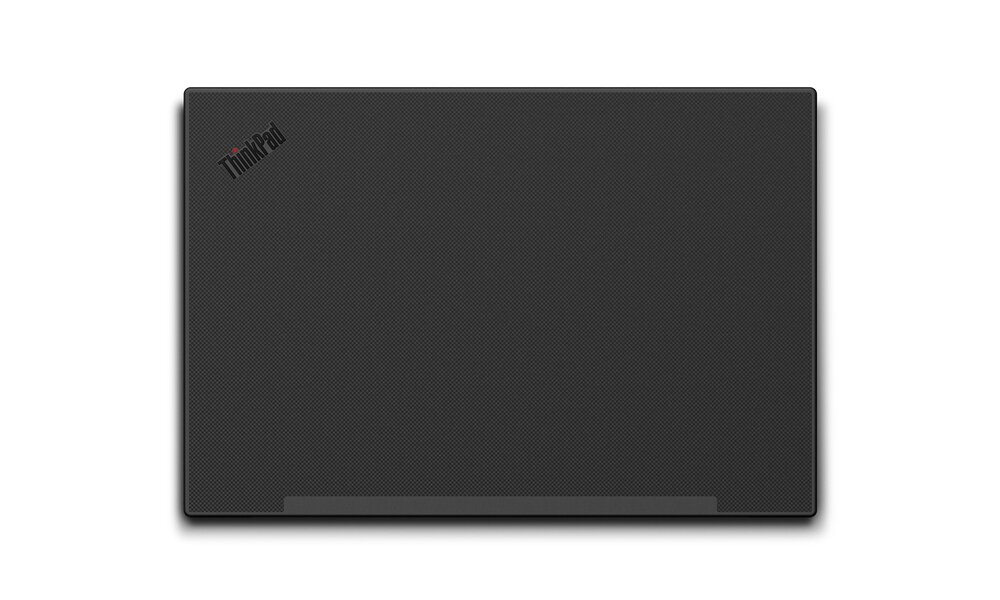

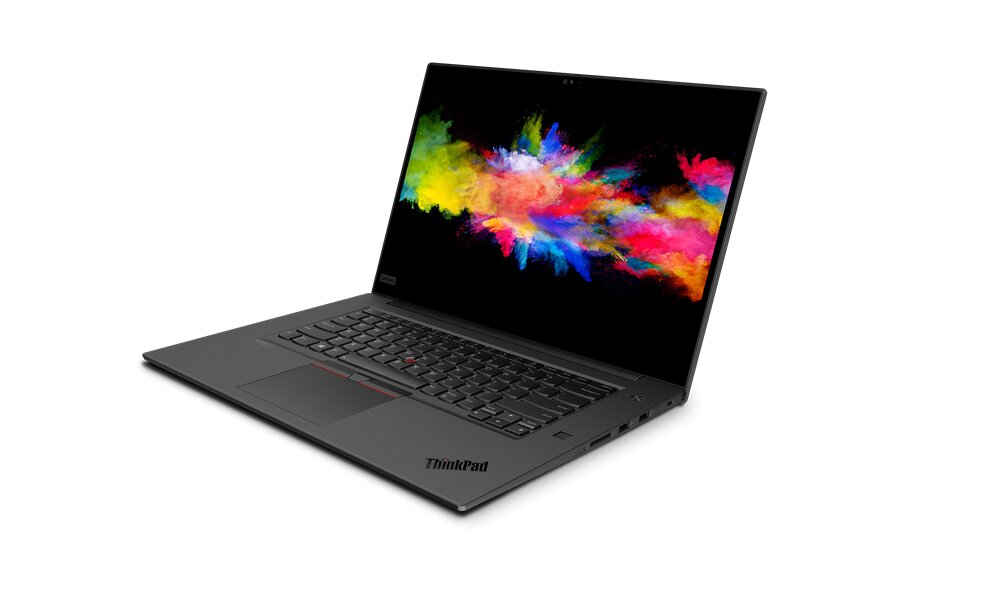

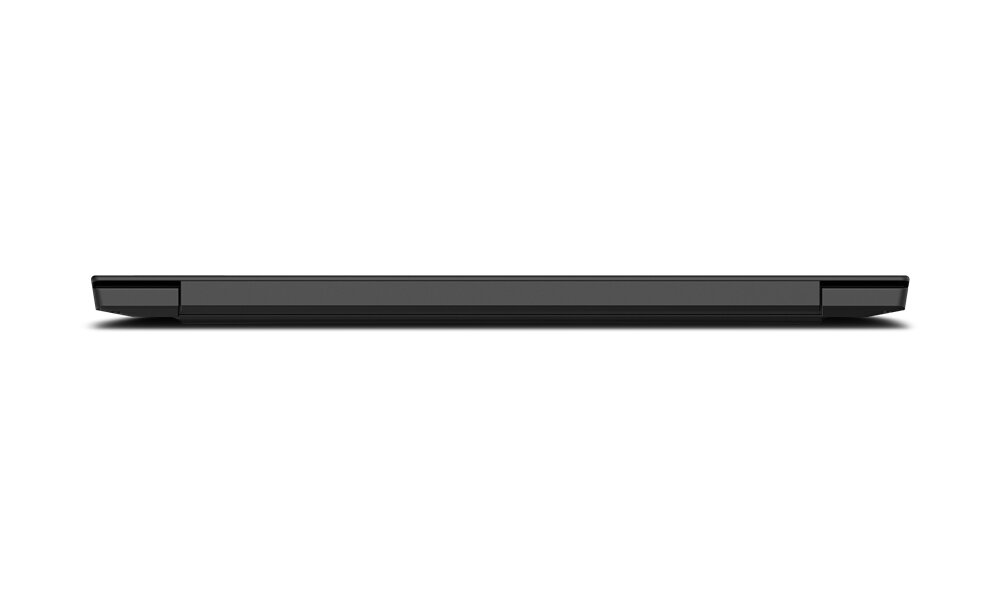

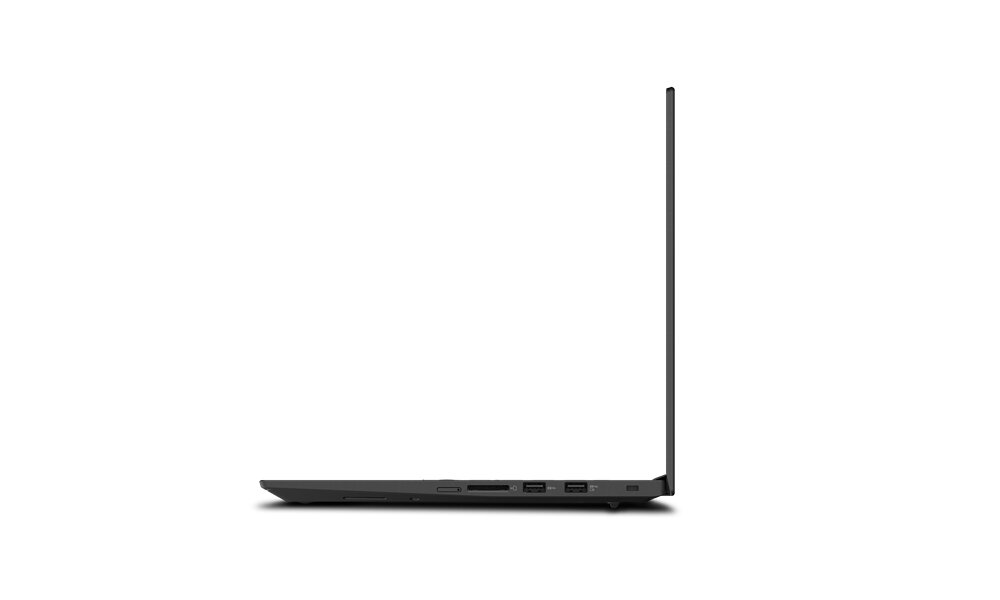

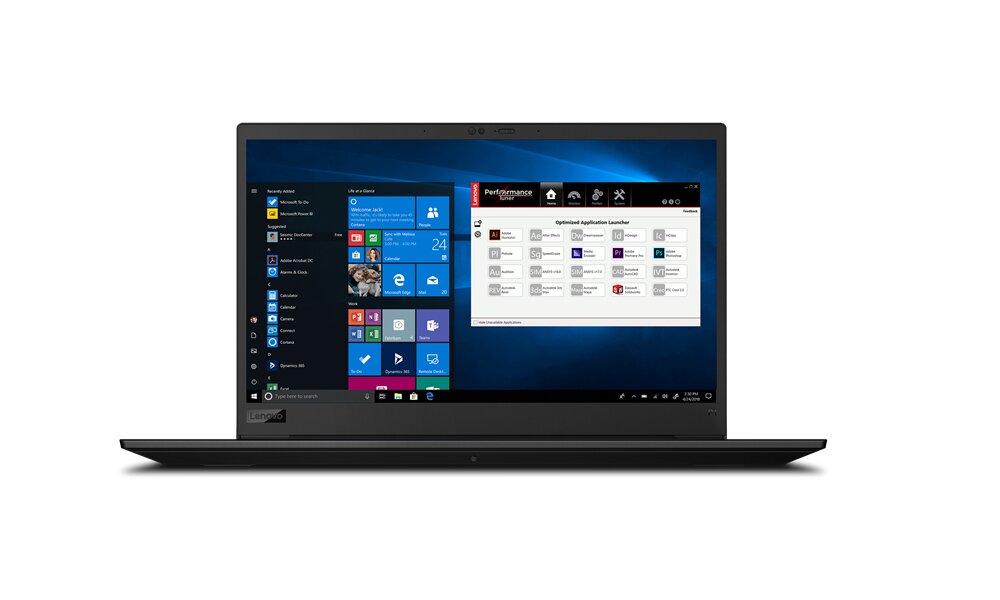

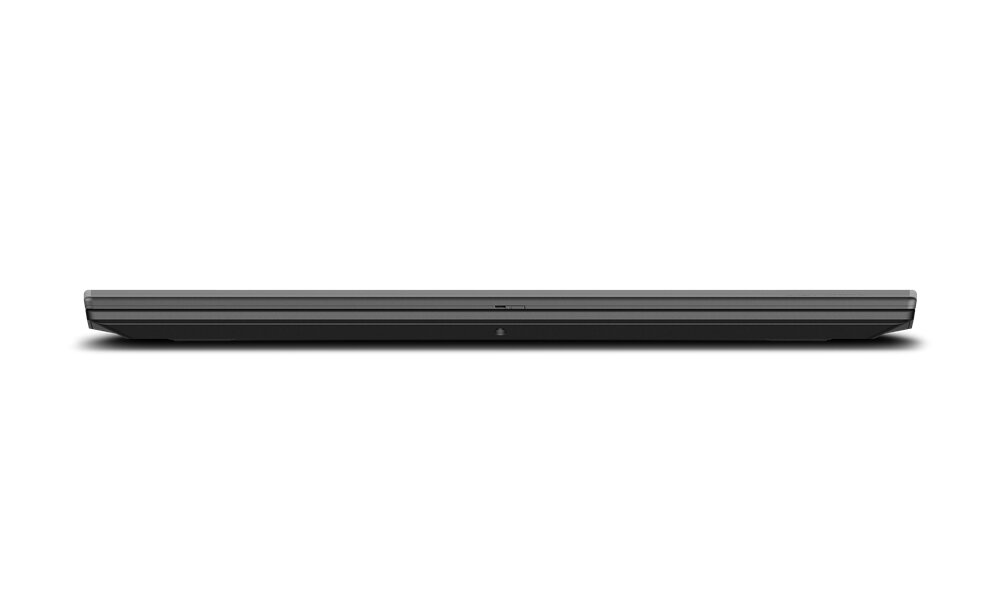

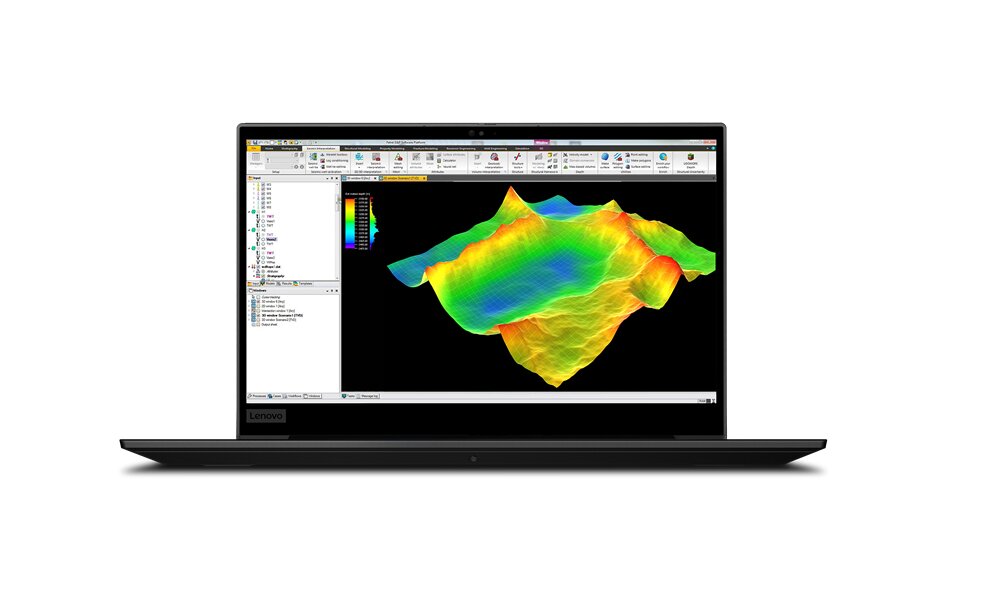

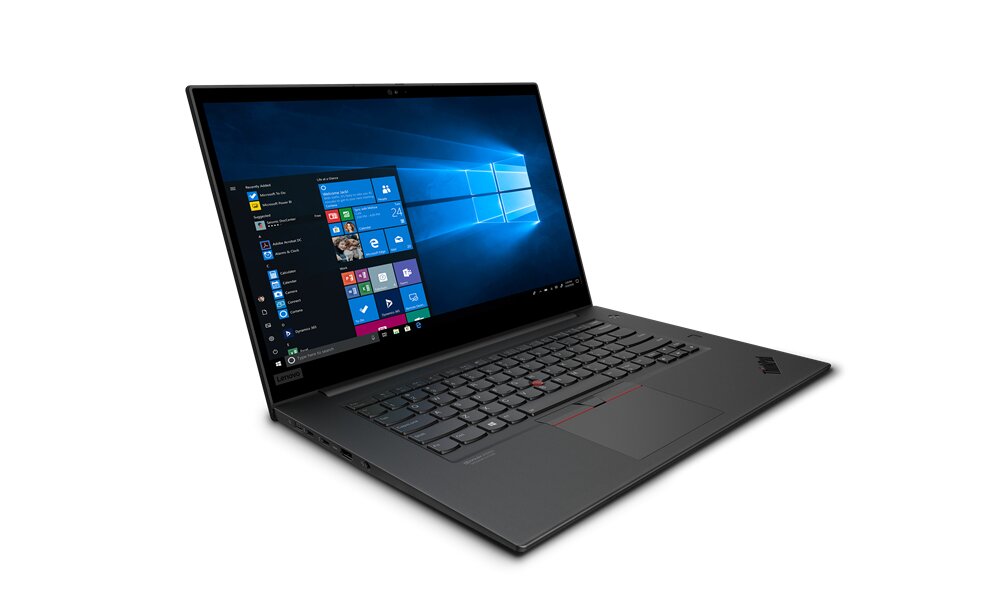

Lenovo ThinkPad P1 Gen 3 - 20TH0046PB
Lenovo ThinkPad P1 Gen 3
Product code: 20TH0046PB
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: W-10855M
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 1.7 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Housing material | Carbon fibre, Polycarbonate (PC), Polyphenylene sulfide (PPS) |
| Display | |
| Display diagonal | 15.6 inch |
| Contrast ratio (typical) | 1400:1 |
| Display brightness | 600 cd/m² |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Display resolution | 3840 x 2160 pixels |
| High Dynamic Range (HDR) technology | Dolby Vision |
| RGB colour space | Adobe RGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:9 |
| High Dynamic Range (HDR) supported | Yes |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | P |
| Model name | P1 Gen 3 |
| Part Number | 20TH0046PB |
| Release Date | 28 February 2022 |
| EAN/UPC code | 0195235938522, 195235938522 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon |
| Processor frequency | 2.8 GHz |
| Motherboard chipset | Intel WM490 |
| Processor boost frequency | 5.1 GHz |
| Processor model | W-10855M |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2933 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory channels | Dual-channel |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro T2000 Max-Q |
| On-board graphics card model | Intel UHD Graphics |
| On-board graphics card family | Intel UHD Graphics |
| Discrete graphics card memory | 4 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Installed |
| Near Field Communication (NFC) | No |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| HDMI version | 2.0 |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| USB Sleep-and-Charge | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3286 |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |
| Privacy type | Privacy shutter |
| Front camera resolution | 1280 x 720 pixels |
| Keyboard | |
| Numeric keypad | No |
| Keyboard layout | QWERTY |
| Keyboard backlit | Yes |
| Pointing device | ThinkPad UltraNav |
| Keyboard language | English |
| Software | |
| Operating system installed | Windows 10 Pro for Workstations |
| Operating system language | English, Polish |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 80 Wh |
| Weight & dimensions | |
| Weight | 1.7 kg |
| Height | 18.4 mm |
| Depth | 245.7 mm |
| Width | 361.8 mm |
| Power | |
| AC adapter power | 135 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | Power on, Supervisor, HDD |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
