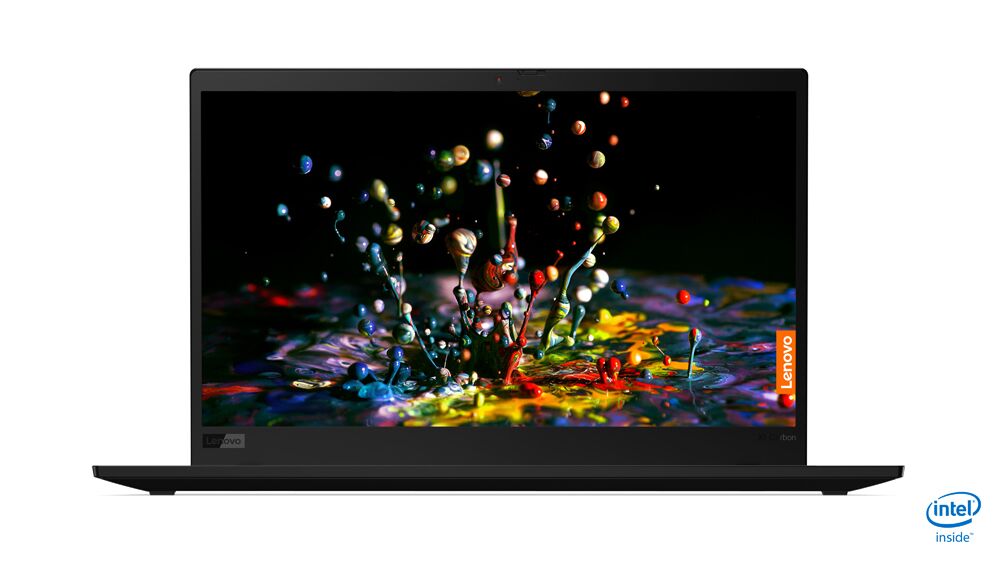

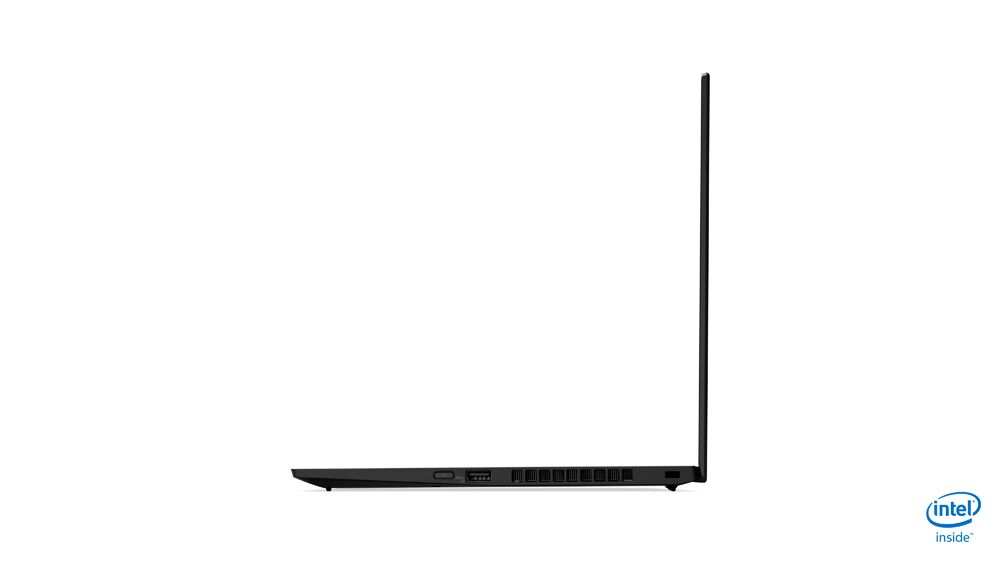

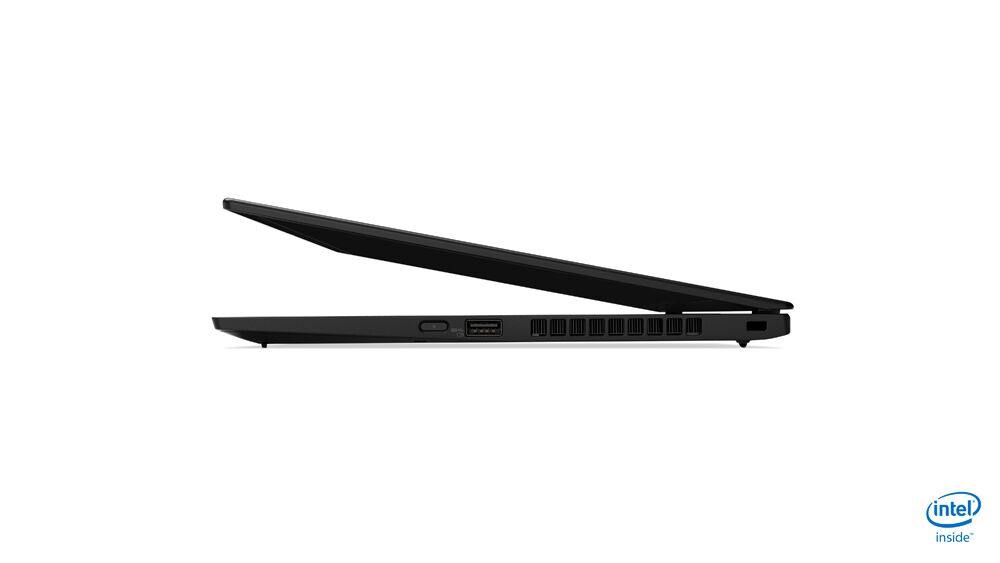

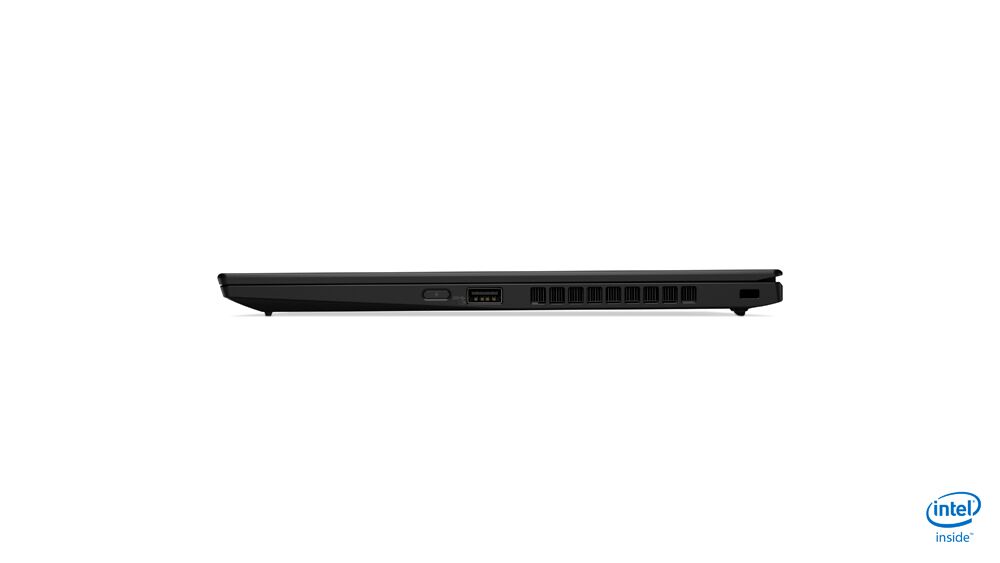

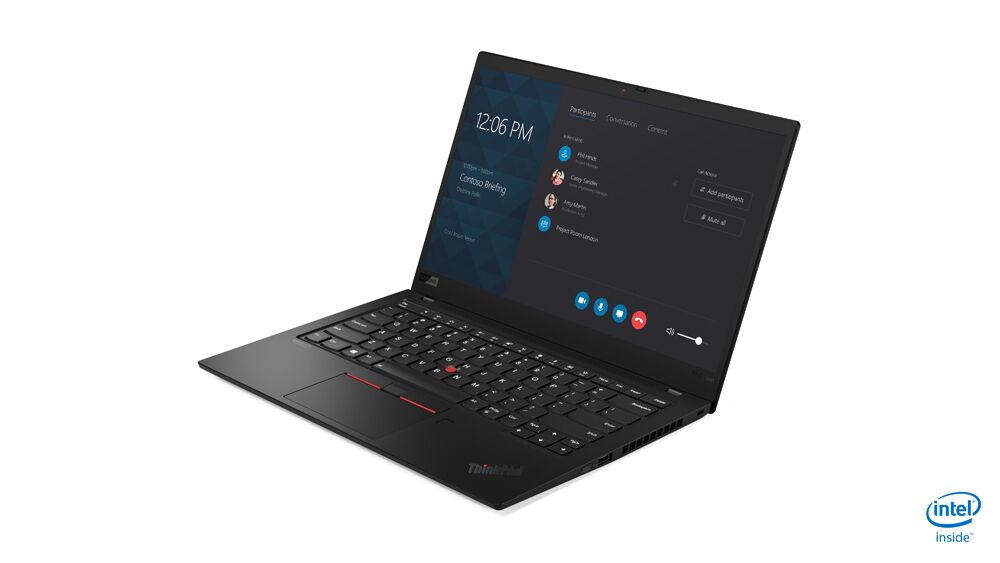

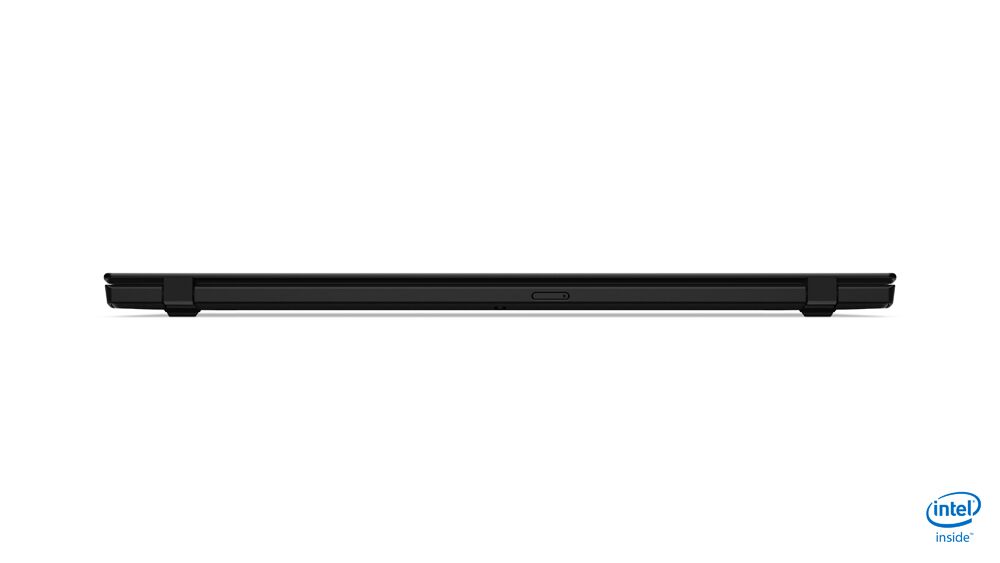

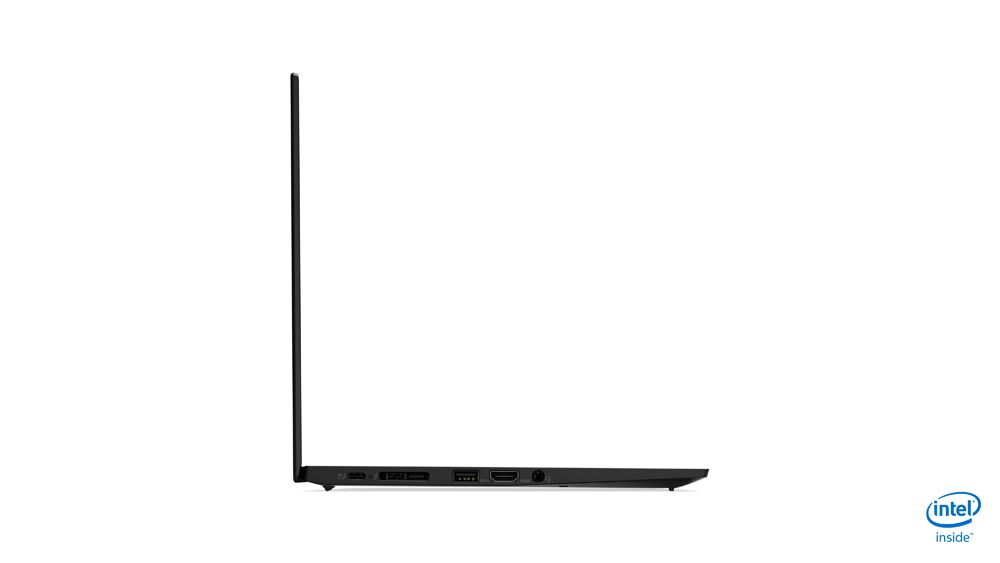

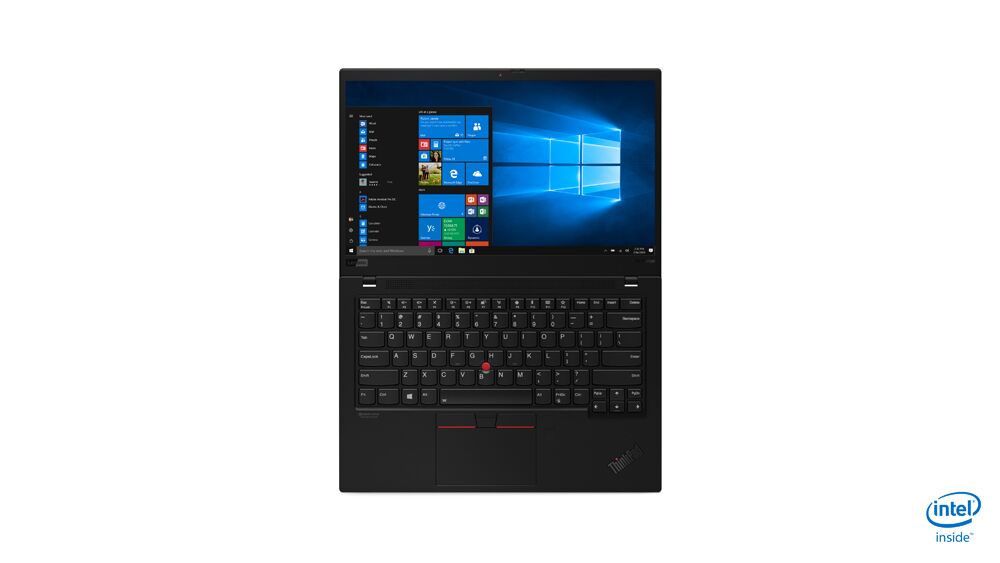

Lenovo ThinkPad X1 Carbon - 20QDCTO1WW-C73-L5
Lenovo ThinkPad X1 Carbon
Product code: 20QDCTO1WW-C73-L5
- đģDisplay diagonal: 14 inch
- đŗProcessor model: i7-8665U
- đĢInternal memory: 16 GB
- đŽOn-board graphics adapter model: Intel UHD Graphics 620
- đŽDiscrete graphics adapter model:
- đŊTotal storage capacity: 512 GB
- âī¸Weight:
đ Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Housing material | Carbon fibre, Magnesium |
| Display | |
| Display diagonal | 14 inch |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | X |
| Model name | X1 Carbon |
| Part Number | 20QDCTO1WW-C73-L5 |
| Release Date | 18 January 2020 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 1.9 GHz |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 4.8 GHz |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-8665U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 8 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Configurable TDP-up frequency | 2.1 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 2133 MHz |
| Maximum internal memory | 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Headphone outputs | 1 |
| Microphone in | No |
| HDMI version | 1.4b |
| USB Sleep-and-Charge ports | 1 |
| Docking connector | Yes |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 4 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3286 |
| Number of microphones | 4 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Front camera HD type | HD |
| Privacy type | Privacy shutter |
| Keyboard | |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Pointing device | ThinkPad UltraNav |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity (Watt-hours) | 51 Wh |
| Battery life (max) | 18.3 h |
| Battery capacity | 51 Wh |
| Weight & dimensions | |
| Depth | 217 mm |
| Width | 323 mm |
| Security | |
| Cable lock slot | Yes |
| Smart card reader | No |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
