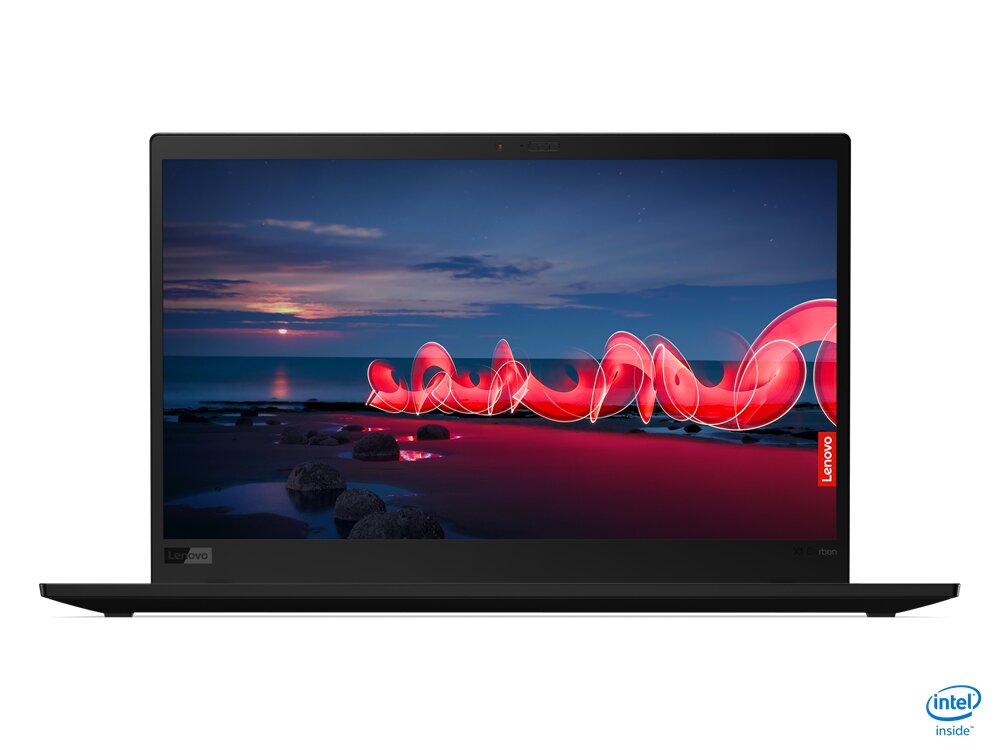

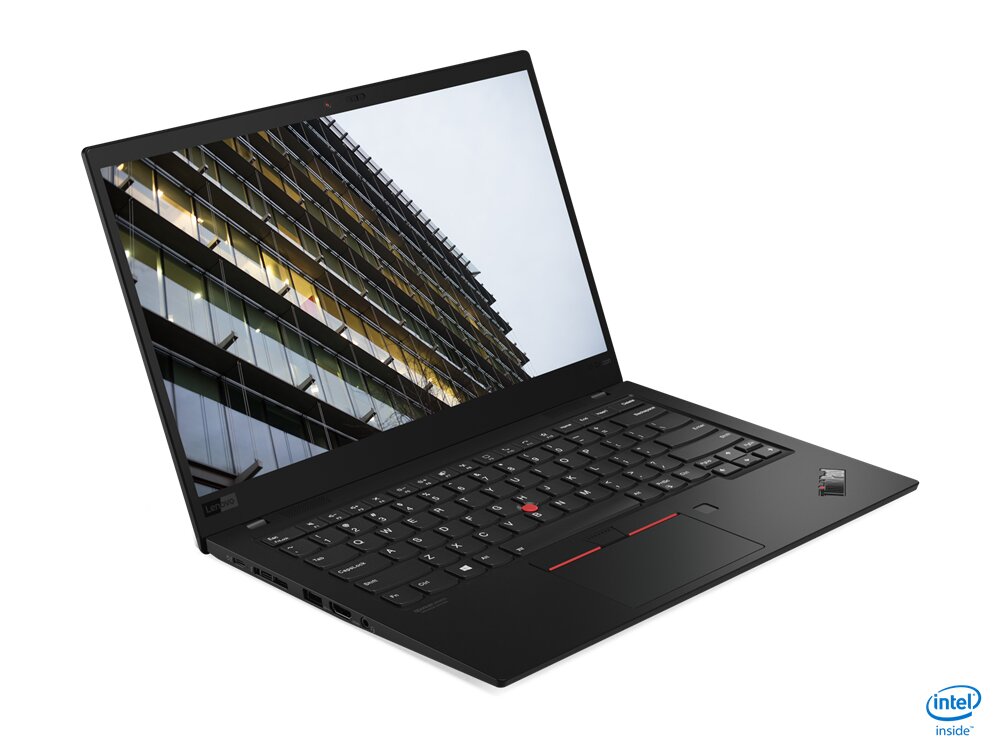

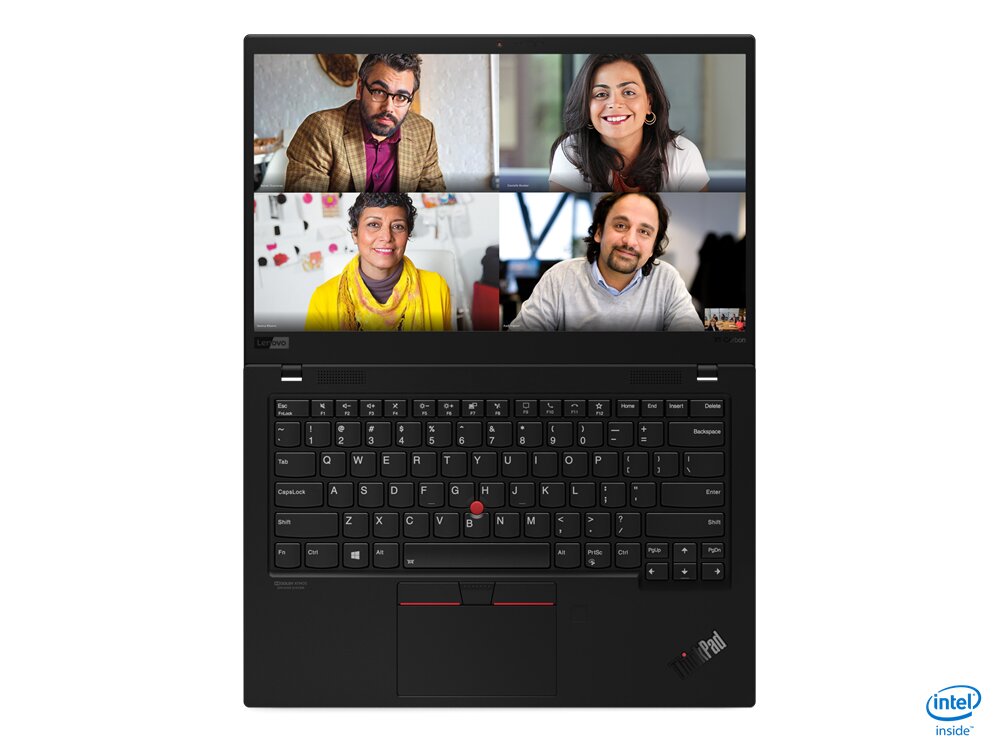

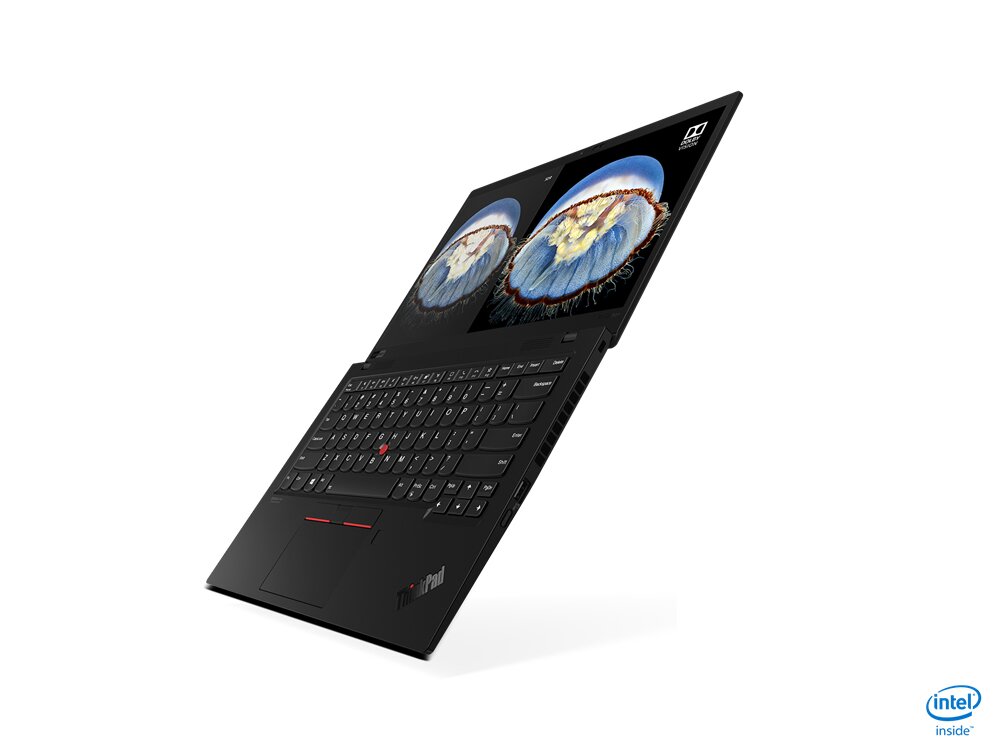

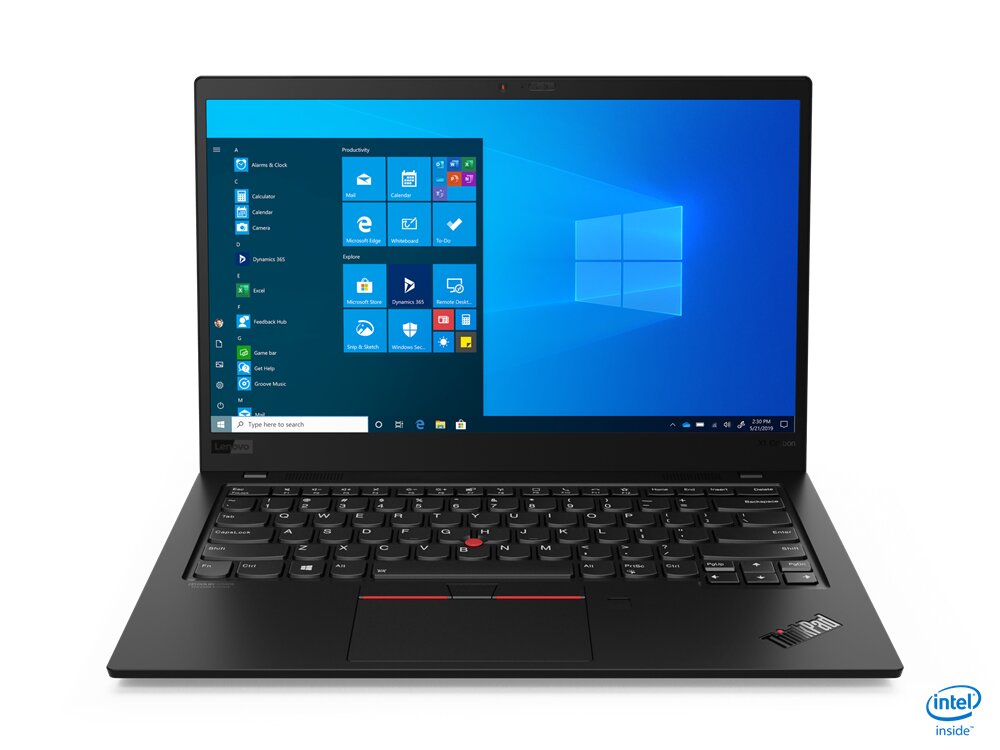

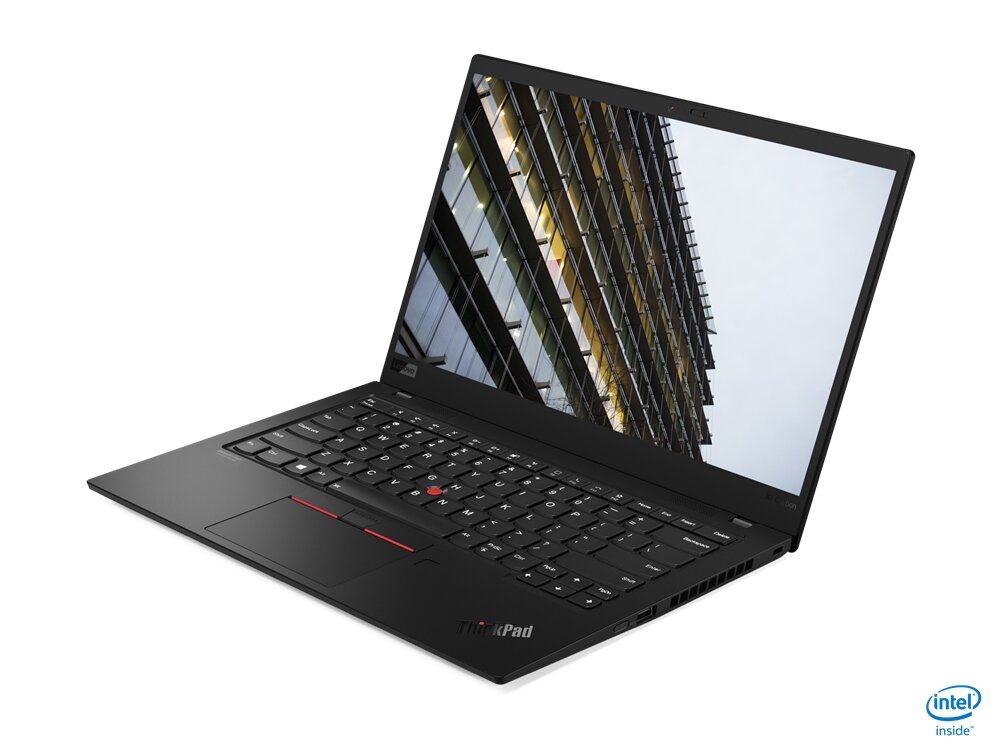

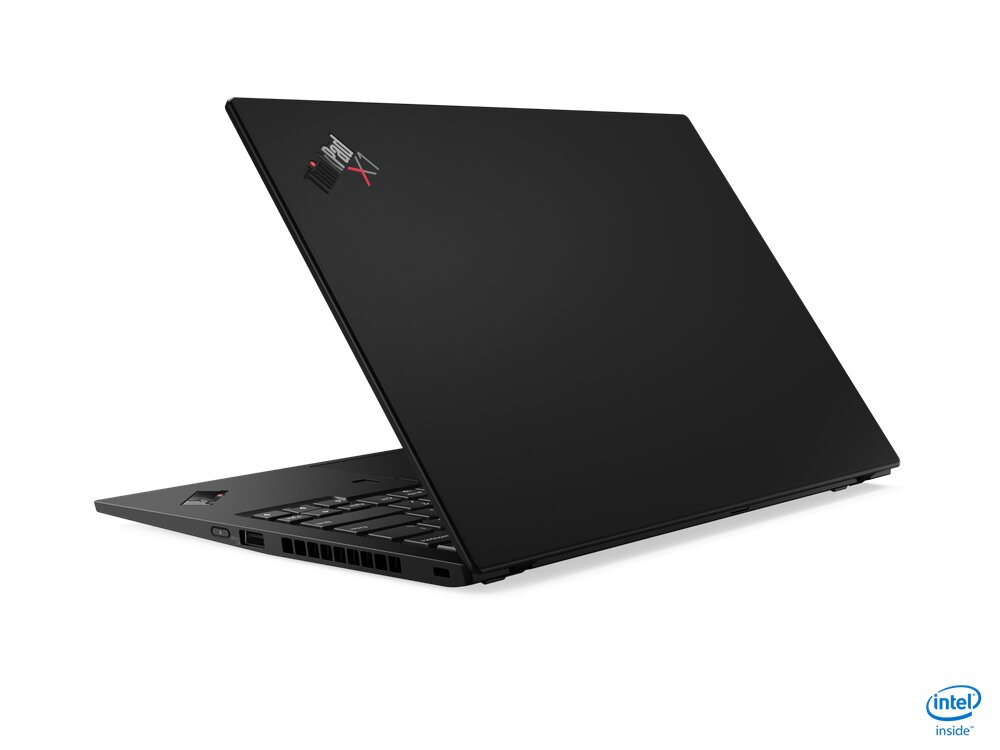

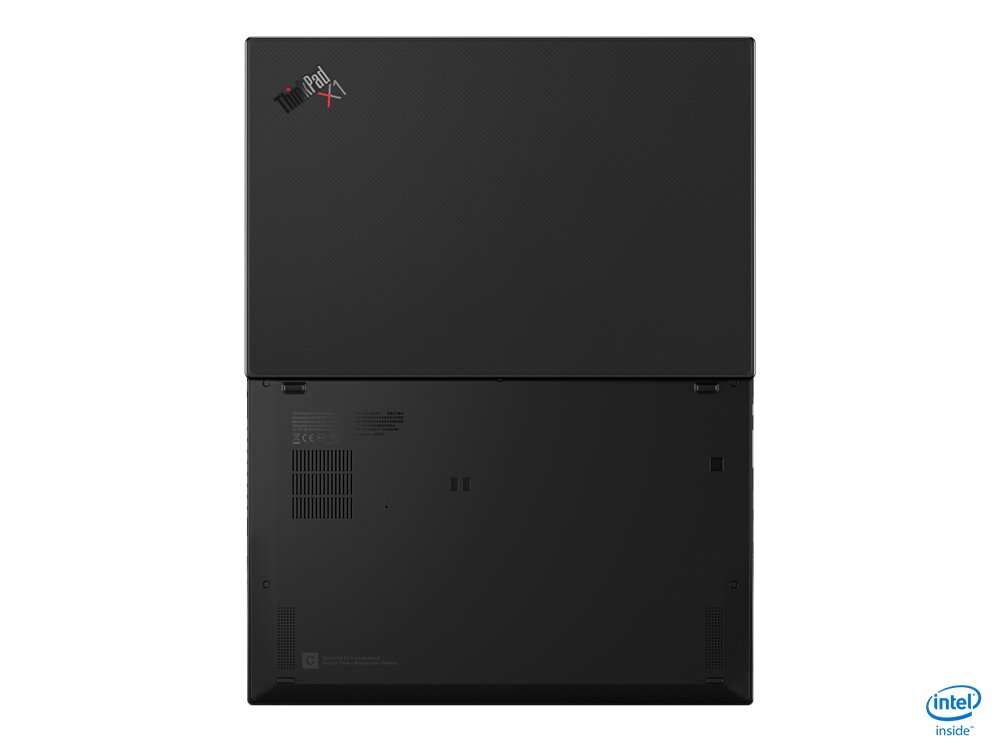

Lenovo ThinkPad X1 Carbon Gen 8 - 20U9006DMH

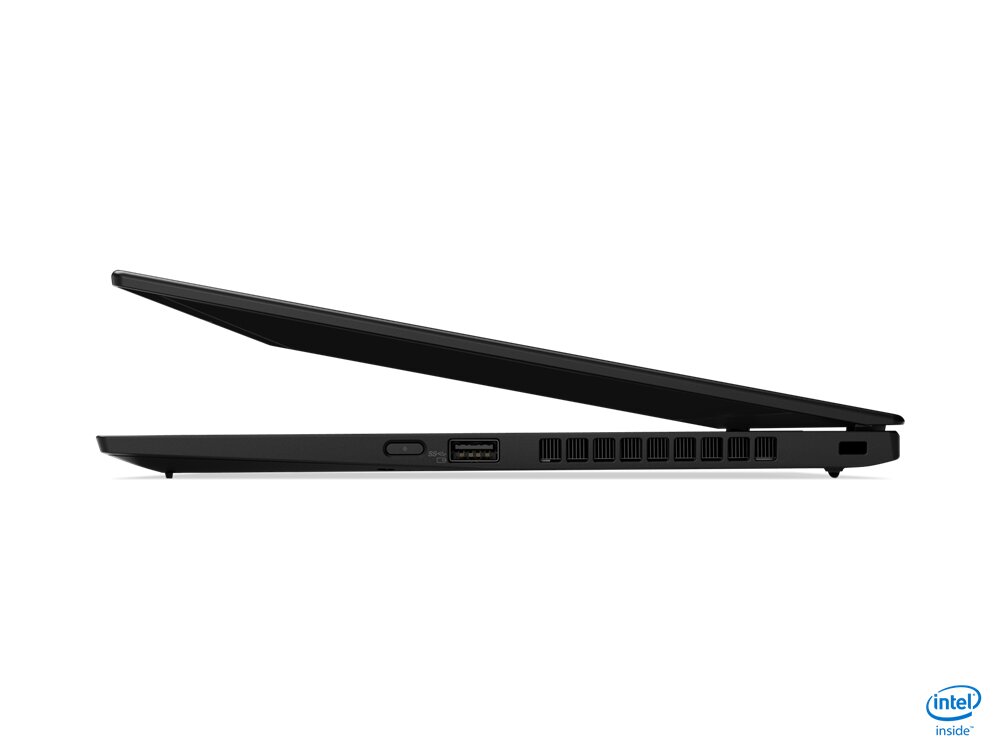

Lenovo ThinkPad X1 Carbon Gen 8
Product code: 20U9006DMH
- 💻Display diagonal: 14 inch
- 🔳Processor model: i5-10210U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 256 GB
- ⚖️Weight: 1.09 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Laptop |
| Form factor | Clamshell |
| Housing material | Carbon fibre, Magnesium |
| Display | |
| Display diagonal | 14 inch |
| Display brightness | 400 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | X |
| Model name | X1 Carbon Gen 8 |
| Part Number | 20U9006DMH |
| EAN/UPC code | 0195348022187, 195348022187 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 1.6 GHz |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 4.2 GHz |
| Processor model | i5-10210U |
| Processor cores | 4 |
| Processor cache | 6 MB |
| Configurable TDP-up frequency | 2.1 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 10th gen Intel Core i5 |
| Memory | |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100, 1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| WWAN | Installed |
| Near Field Communication (NFC) | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone outputs | 1 |
| HDMI version | 1.4b |
| USB Sleep-and-Charge ports | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 4 |
| Audio system | Dolby Atmos |
| Number of microphones | 4 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Privacy type | Privacy shutter |
| Keyboard | |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Keyboard layout | QWERTY |
| Keyboard backlit | Yes |
| Pointing device | ThinkPad UltraNav |
| Keyboard language | English |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | No |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 51 Wh |
| Weight & dimensions | |
| Weight | 1.09 kg |
| Height | 14.9 mm |
| Depth | 217 mm |
| Width | 323 mm |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
