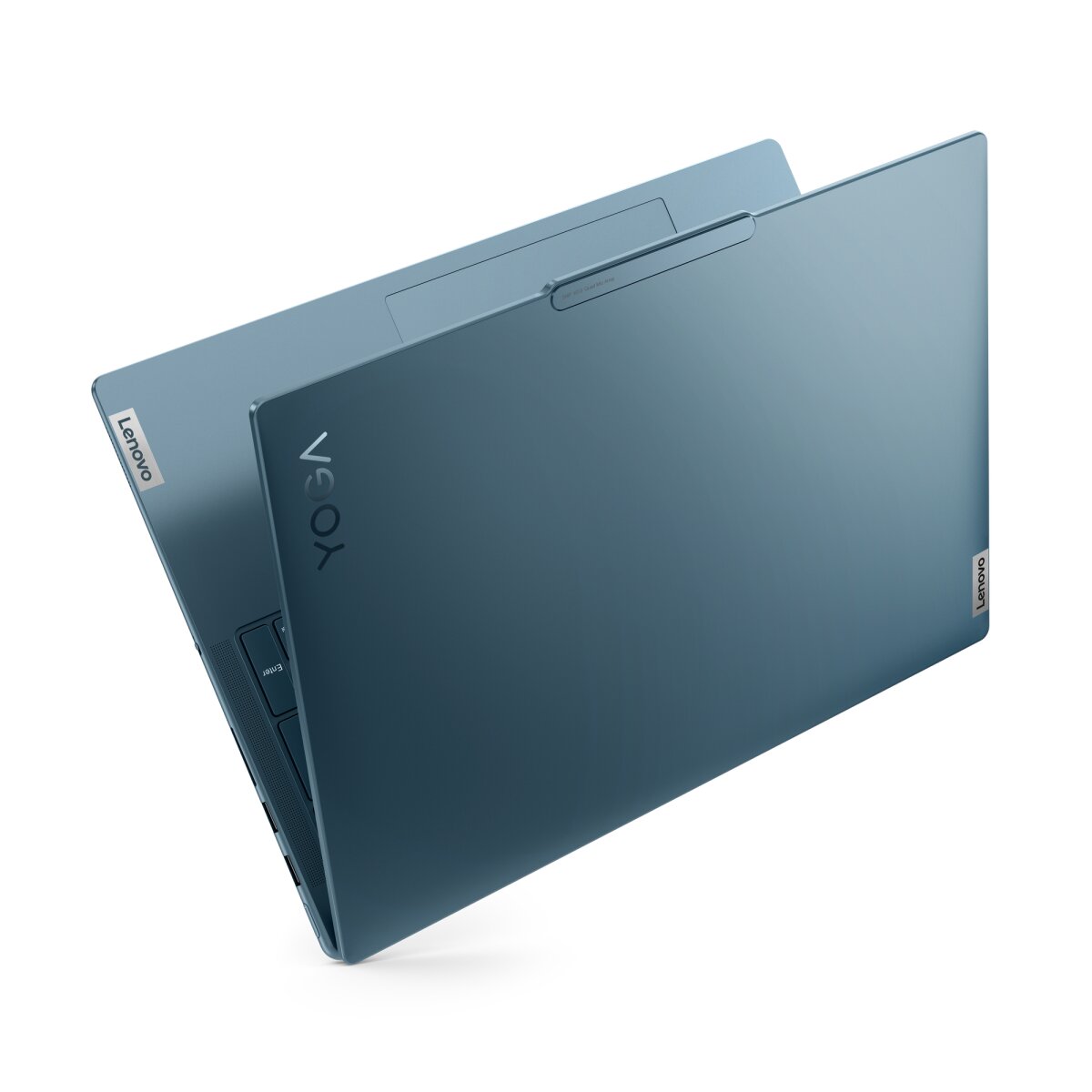

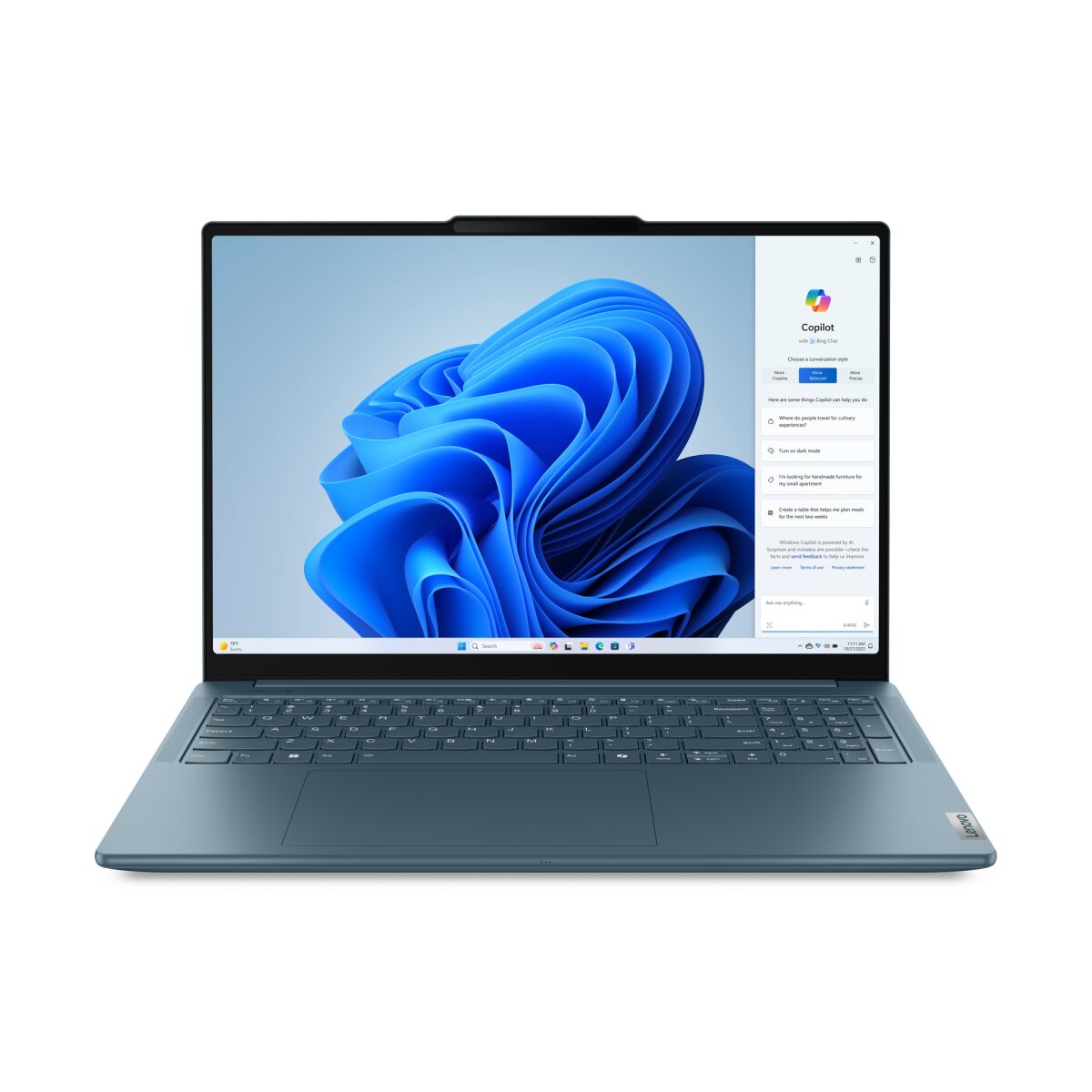

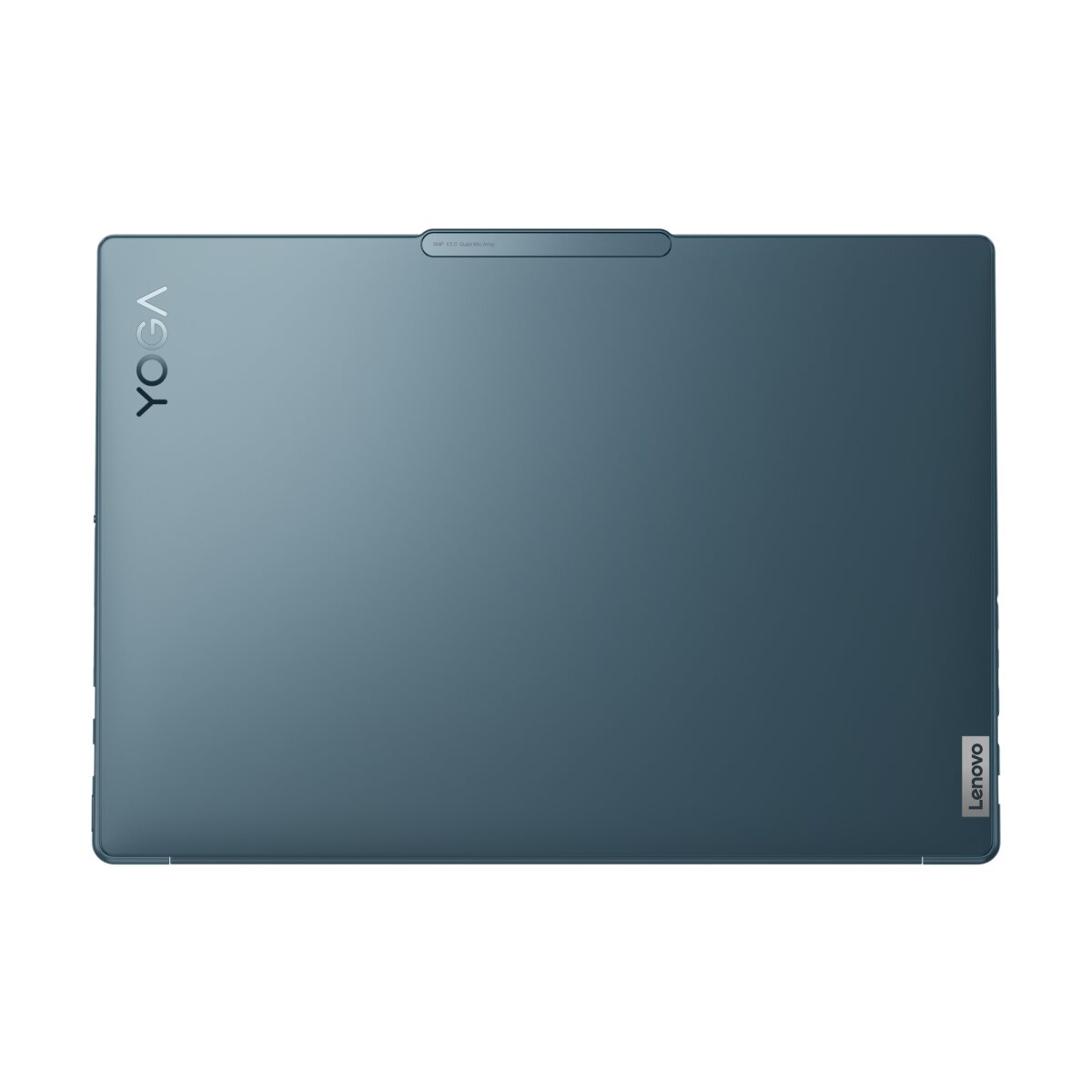

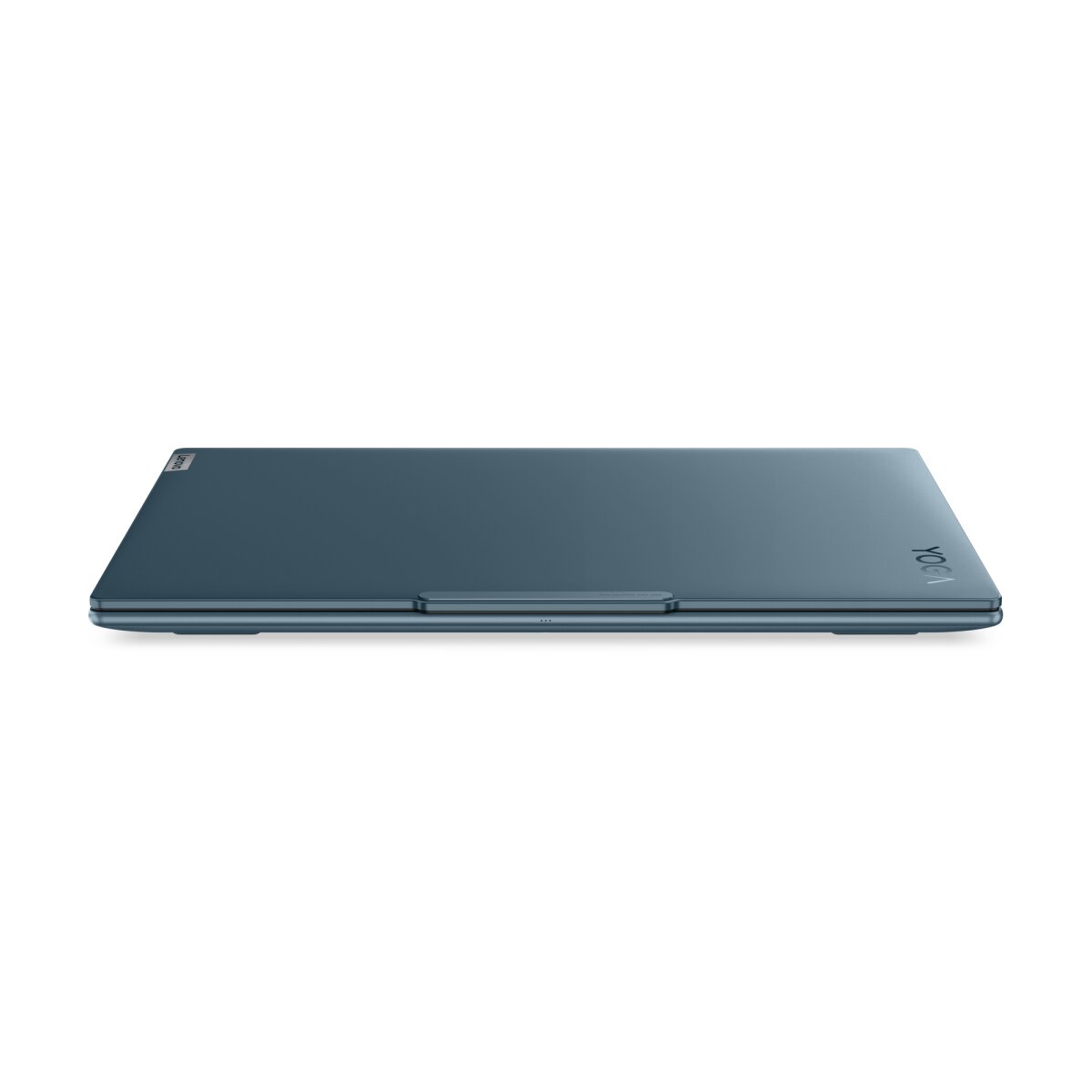

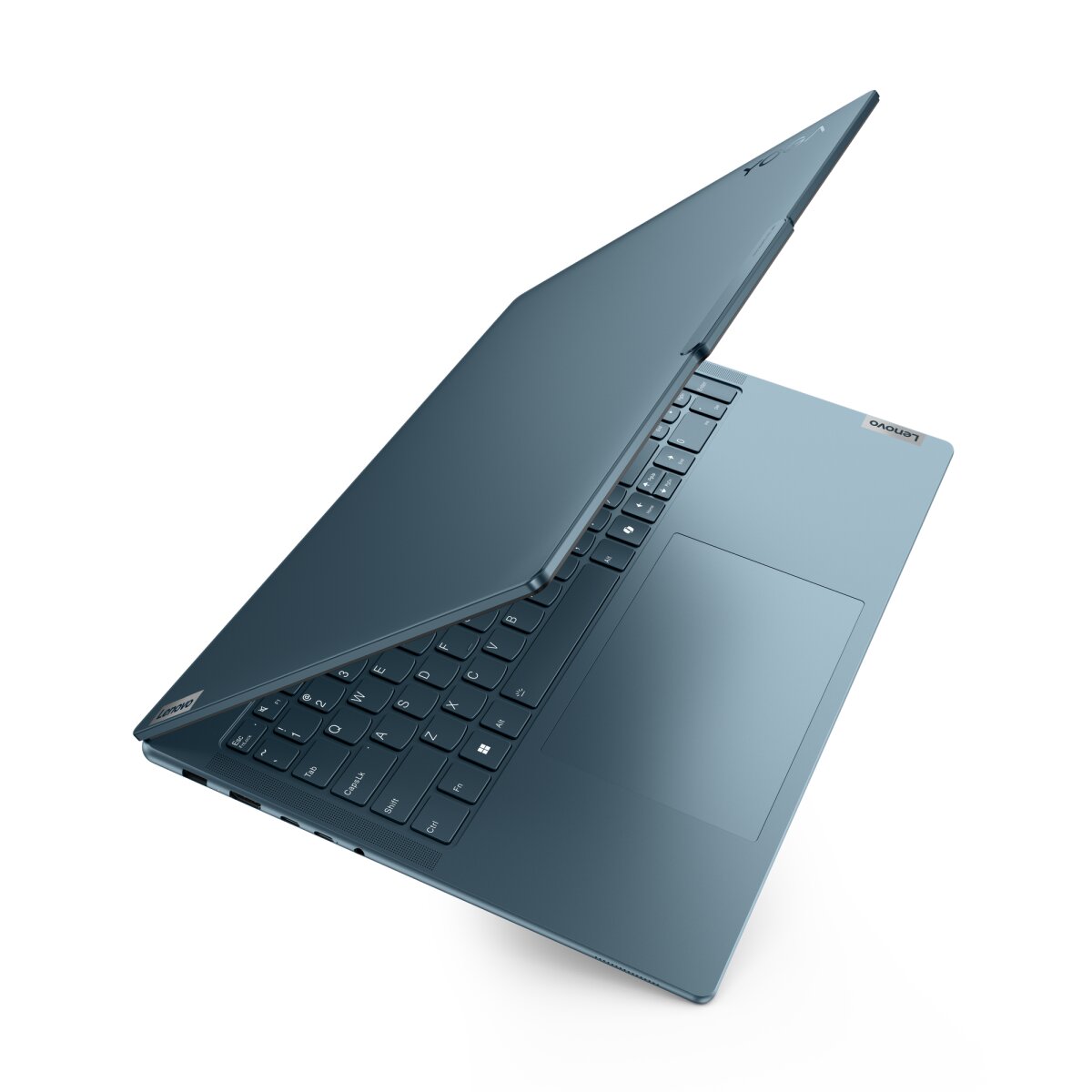

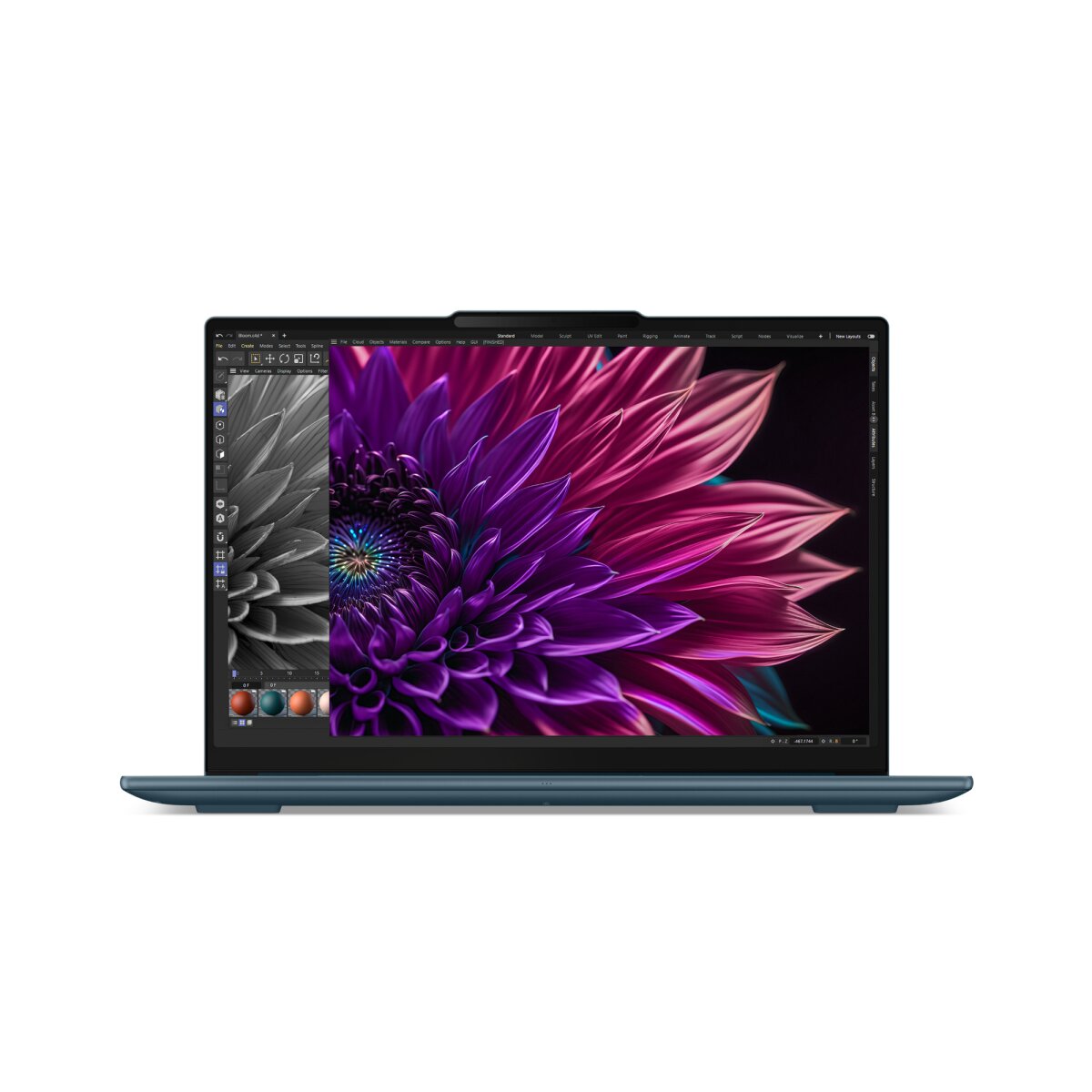

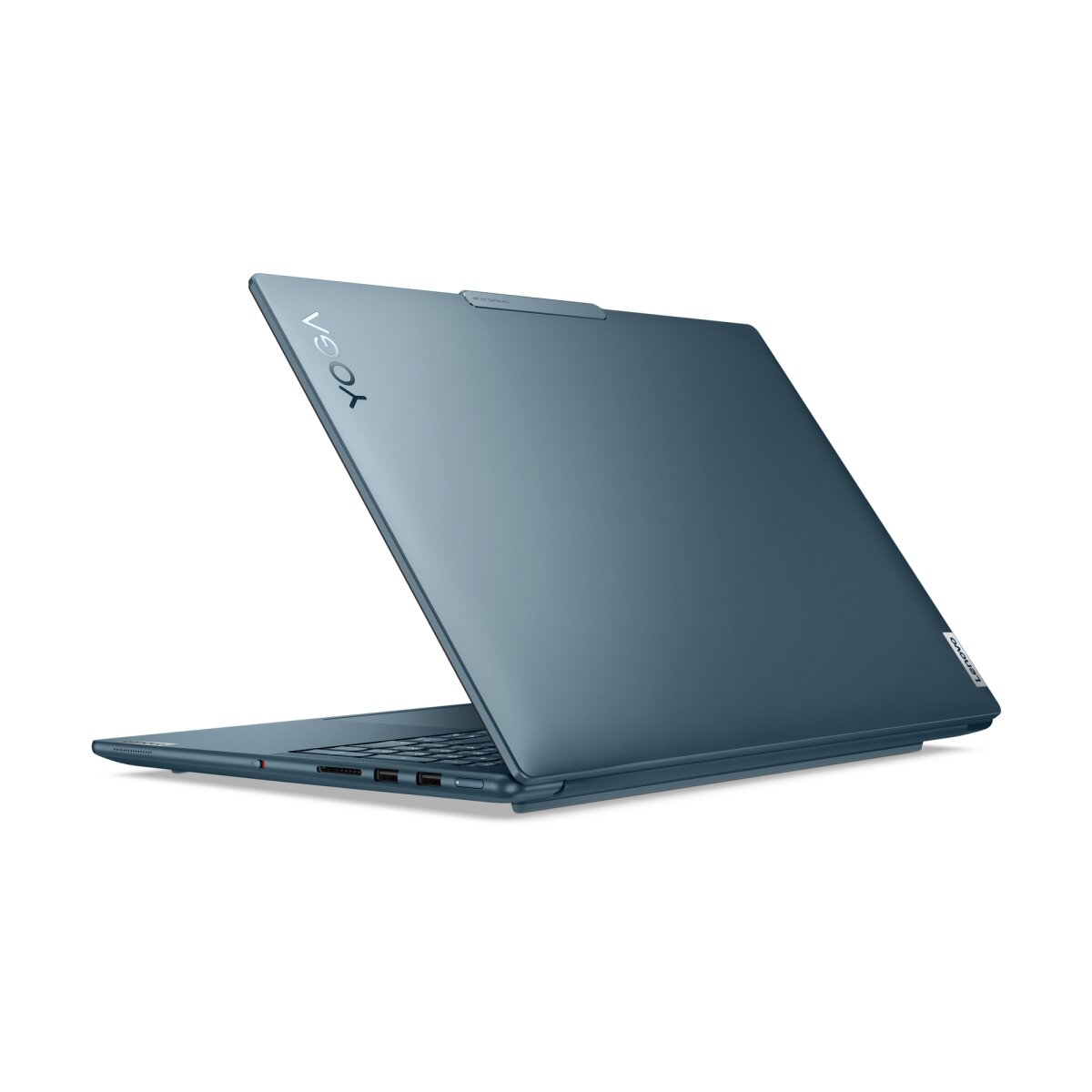

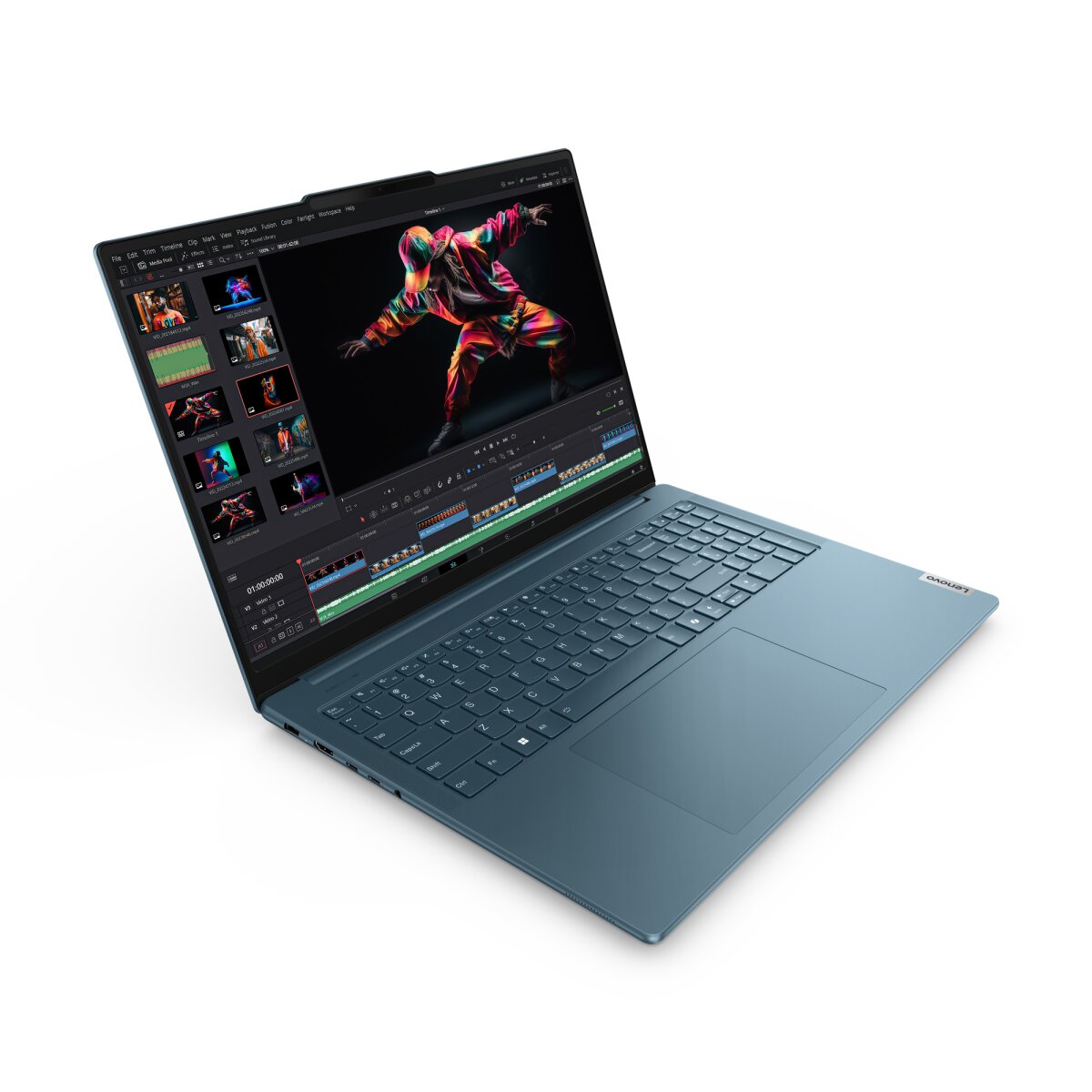

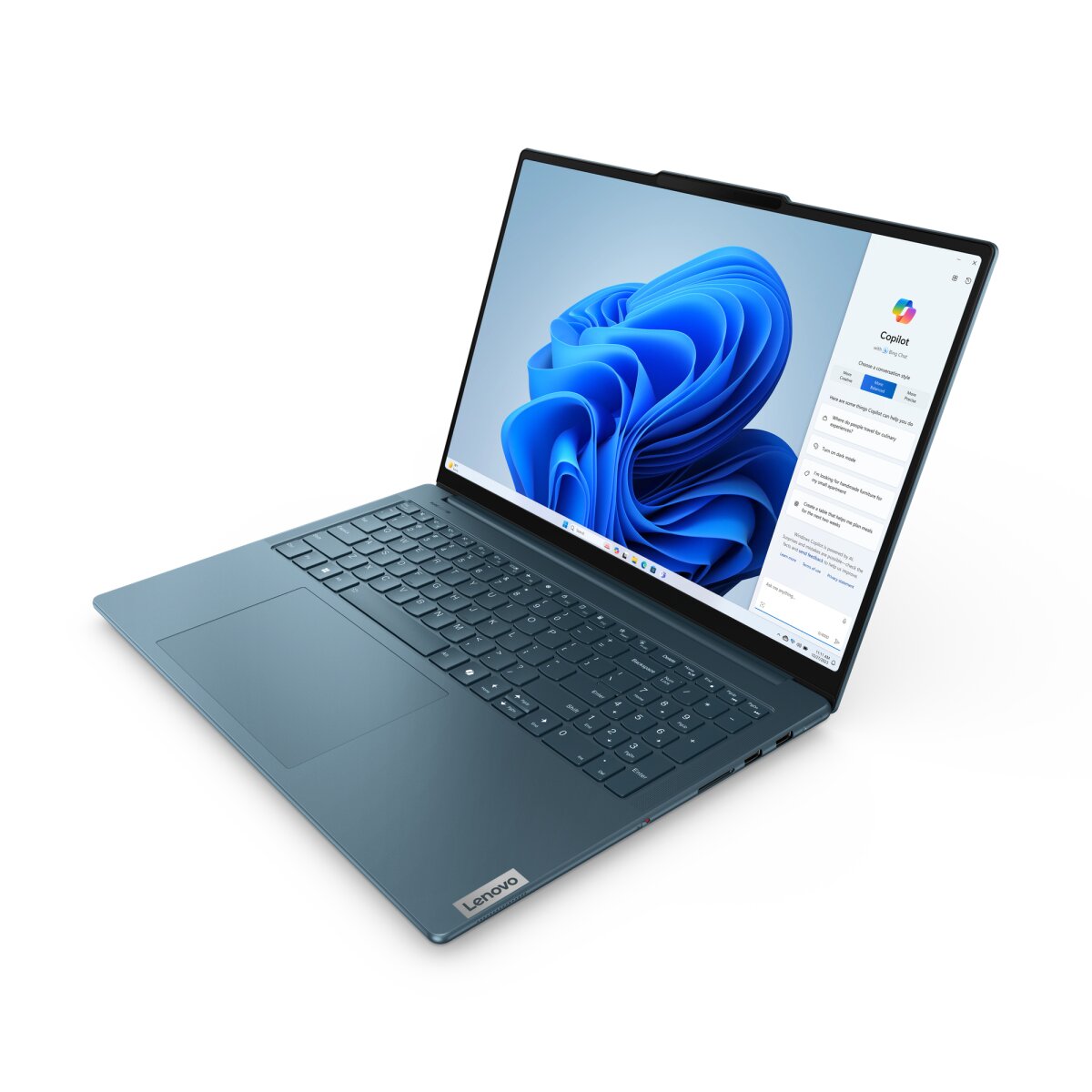

Lenovo Yoga Pro - 83DN005PMH
Lenovo Yoga Pro
Product code: 83DN005PMH
- 💻Display diagonal: 16 inch
- 🔳Processor model: 185H
- 🎫Internal memory: 32 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 1 TB
- ⚖️Weight: 2.05 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Teal |
| Product type | Laptop |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 16 inch |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 600 cd/m² |
| Panel type | Mini LED |
| HD type | 3.2K |
| LED backlight | Yes |
| Touchscreen | No |
| Display resolution | 3200 x 2000 pixels |
| High Dynamic Range (HDR) technology | DisplayHDR 1000, Dolby Vision |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Brand | Lenovo |
| Family | Yoga |
| Series | Pro 9 |
| Model name | Pro |
| Part Number | 83DN005PMH |
| EAN/UPC code | 0198153437474, 198153437474 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 5.1 GHz |
| Processor model | 185H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor cache | 24 MB |
| Processor generation | Intel Core Ultra (Series 1) |
| Efficient-core base frequency | 1.8 GHz |
| Efficient cores | 8 |
| Performance cores | 6 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
| Performance-core base frequency | 2.3 GHz |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-core Base Frequency | 1000 MHz |
| Memory | |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Memory form factor | On-board |
| Memory clock speed | 7467 MHz |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Graphics | |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card family | Intel Arc Graphics |
| Discrete graphics card memory | 8 GB |
| On-board GPU manufacturer | Intel |
| Storage | |
| Total storage capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Storage media | SSD |
| NVMe | Yes |
| Optical drive | |
| Optical drive type | No |
| Networking | |
| Ethernet LAN | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| WWAN | Not installed |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| USB Power Delivery (USB PD) | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of built-in speakers | 6 |
| Audio system | Dolby Atmos |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 4 |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Windows Hello | Yes |
| Infrared (IR) camera | Yes |
| Privacy type | Privacy shutter |
| Front camera resolution (numeric) | 5 MP |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Keyboard language | English |
| Performance | |
| Hall sensor | Yes |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system language | German, Dutch, English, French |
| Operating system architecture | 64-bit |
| Trial software | Office Trial |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Continuous video playback time | 11 h |
| Battery life (max) | 5 h |
| Battery capacity | 84 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Weight & dimensions | |
| Weight | 2.05 kg |
| Height | 18.3 mm |
| Depth | 253.7 mm |
| Width | 362.7 mm |
| Power | |
| AC adapter power | 170 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| Security | |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) version | 2.0 |
| Other features | |
| Anti-glare screen | Yes |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, FP32, Int8 |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
