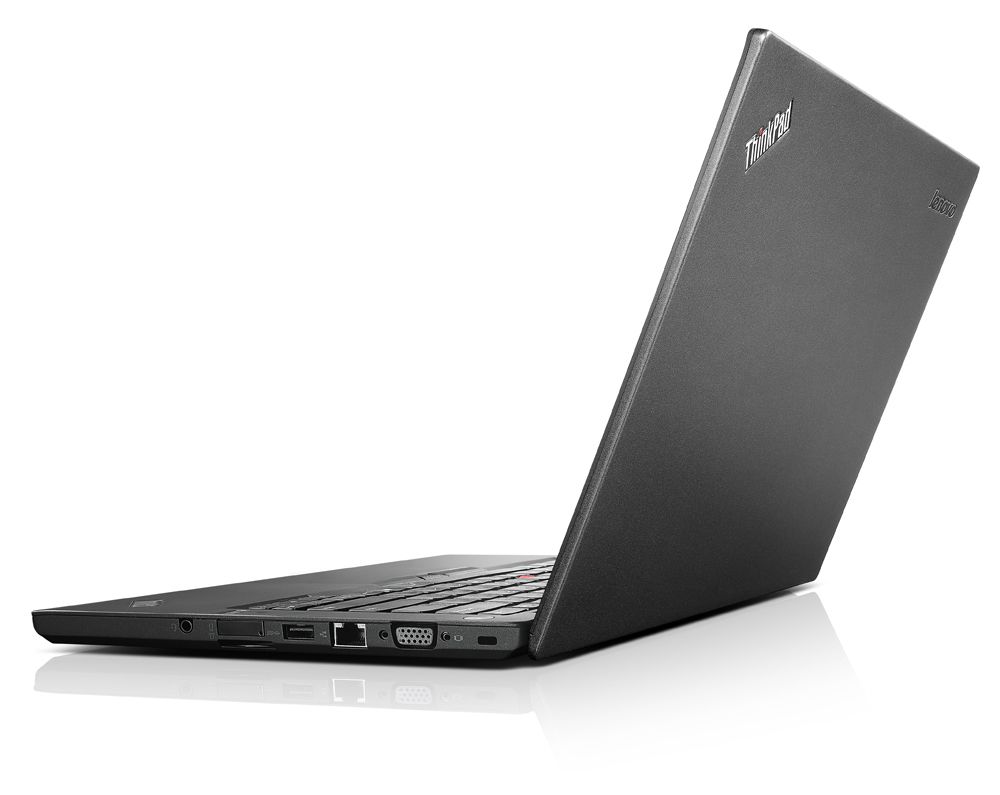

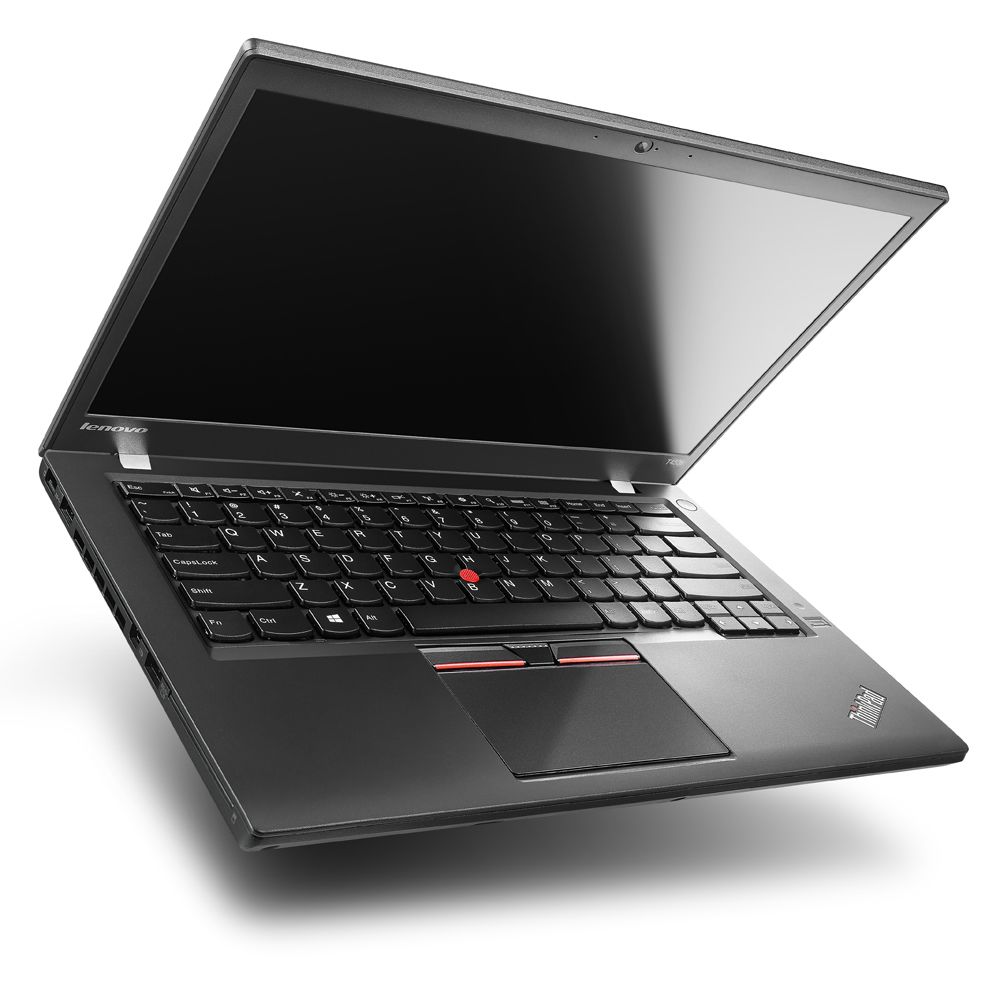

Lenovo ThinkPad T450s - 20BWS3TH00
Lenovo ThinkPad T450s
Product code: 20BWS3TH00
- 💻Display diagonal: 14 inch
- 🔳Processor model: i7-5600U
- 🎫Internal memory: 12 GB
- 🎮On-board graphics adapter model: Intel HD Graphics 5500
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.7 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Housing material | Aluminium, Carbon fibre, Magnesium |
| Display | |
| Display diagonal | 14 inch |
| Touchscreen type | Capacitive |
| Display brightness | 264 cd/m² |
| Panel type | IPS |
| Display surface | Gloss |
| Touch technology | Multi-touch |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | Y |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | T |
| Model name | T450s |
| Part Number | 20BWS3TH00 |
| Release Date | 05 August 2015 |
|
|
|
| Processor | |
| Processor series | Intel Core i7-5600 Mobile Series |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.6 GHz |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 3.2 GHz |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i7-5600U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1168 |
| Processor generation | 5th gen Intel Core i7 |
| Memory | |
| Internal memory type | DDR3L-SDRAM |
| Internal memory | 12 GB |
| Memory form factor | On-board + SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 12 GB |
| Maximum internal memory (64-bit) | 12 GB |
| Graphics | |
| On-board graphics adapter | Y |
| On-board graphics adapter family | Intel HD Graphics |
| On-board graphics adapter DirectX version | 11.2 |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel HD Graphics 5500 |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 950 MHz |
| Maximum on-board graphics adapter memory | 16 GB |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel HD Graphics 5500 |
| On-board graphics card family | Intel HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card ID | 0x1616 |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | SATA III |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Solid-state drive interface | Serial ATA III |
| Solid-state drive capacity | 512 GB |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| LightScribe | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.0 |
| 3G | N |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| Microphone in | N |
| ExpressCard slot | N |
| CardBus PCMCIA slot type | N |
| S/PDIF out port | N |
| SmartCard slot | N |
| USB Sleep-and-Charge ports | 1 |
| DVI port | N |
| Docking connector | Y |
| Combo headphone/mic port | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | Realtek ALC3232 |
| Speaker power | 2 W |

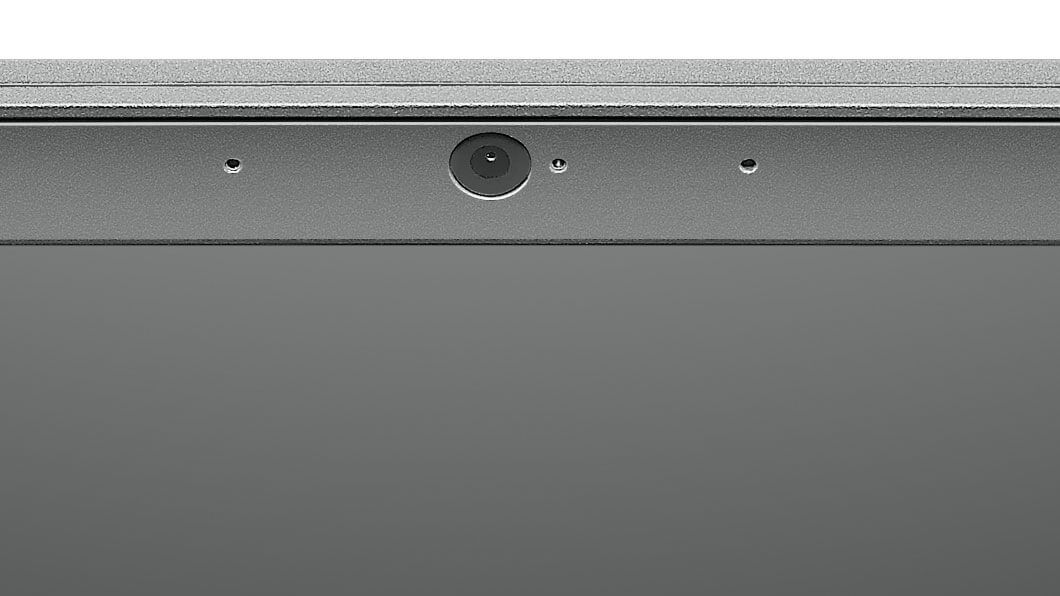

| Camera | |
| Front camera | Y |
| Front camera resolution | 1280 x 720 pixels |

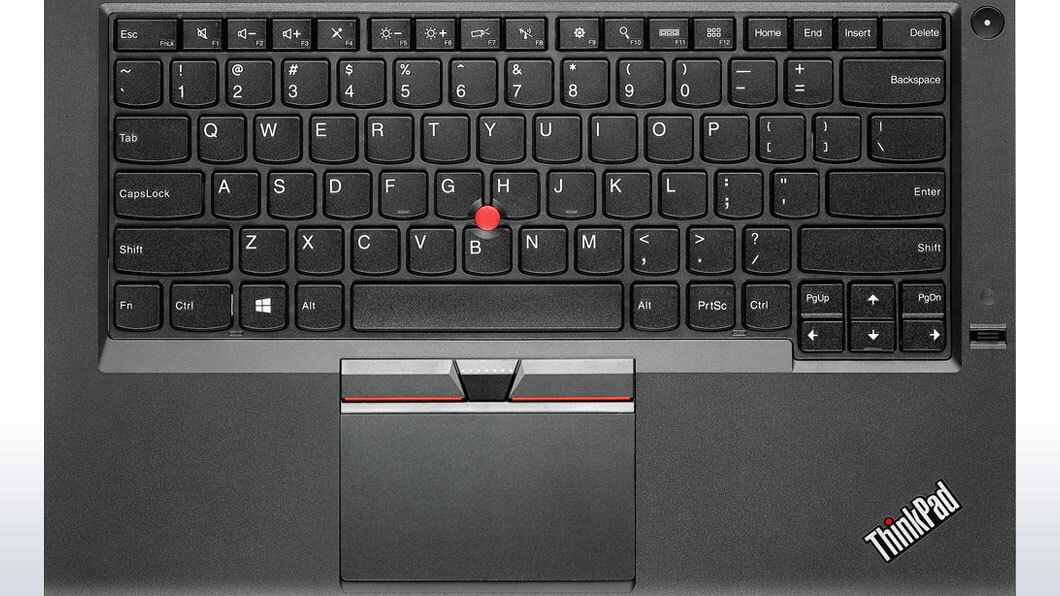

| Keyboard | |
| Numeric keypad | N |
| Spill-resistant keyboard | Y |
| Full-size keyboard | Y |
| Keyboard layout | QWERTY |
| Spill resistant keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | Trackpad |
| Keyboard language | US English |
| Software | |
| Operating system installed | FreeDOS |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3+3 |
| Battery life (max) | 10.16 h |
| Battery capacity | 47 Wh |
| Battery capacity (Watt hours) | 47 Wh |
| Weight & dimensions | |
| Weight | 1.7 kg |
| Height | 24 mm |
| Depth | 227 mm |
| Width | 332 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | HDD, Power on, Supervisor |
| Other features | |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
