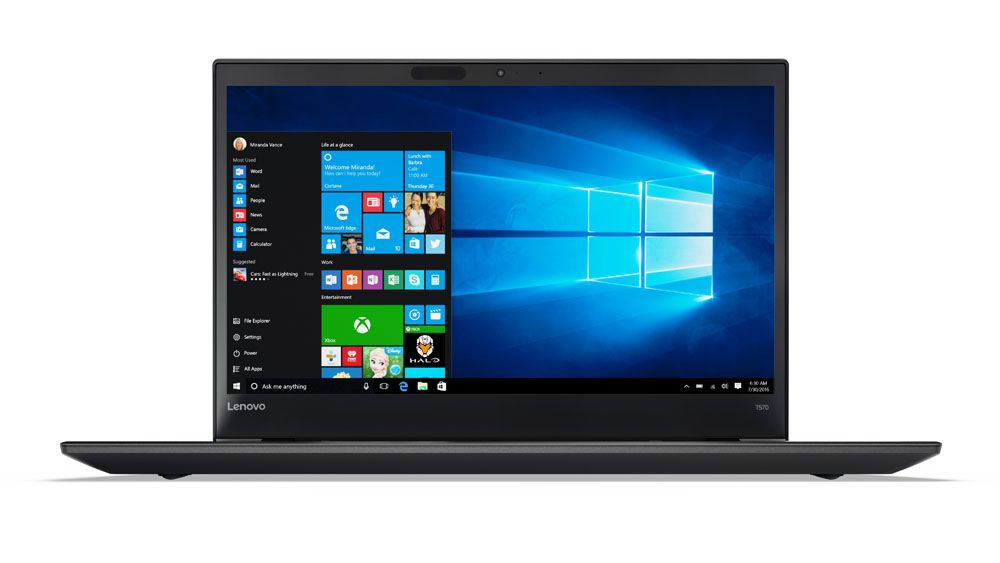

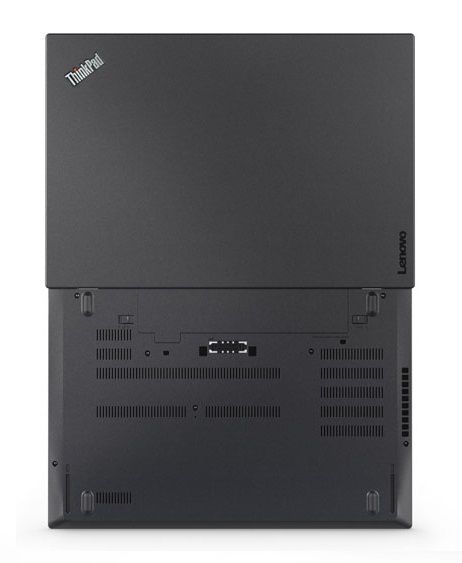

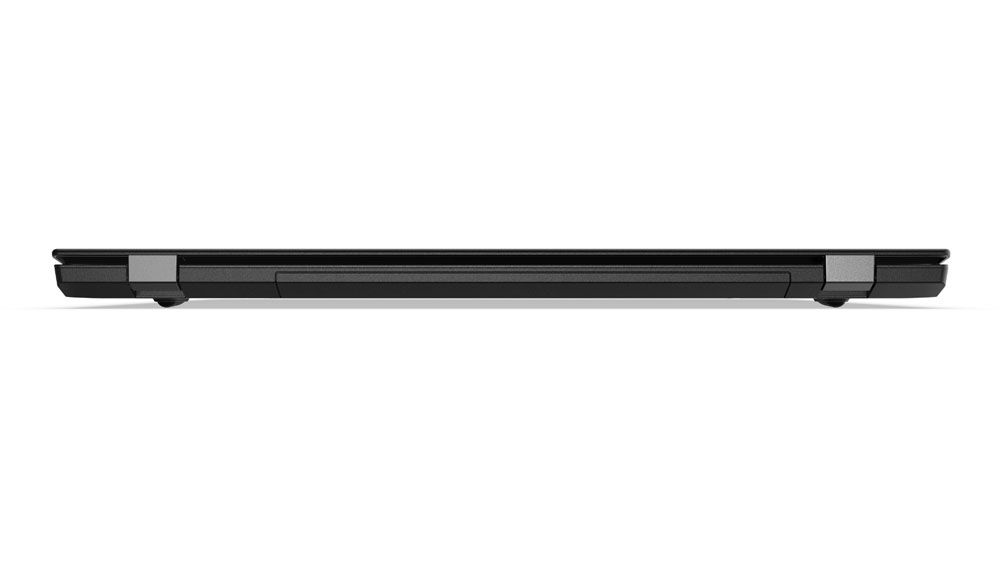

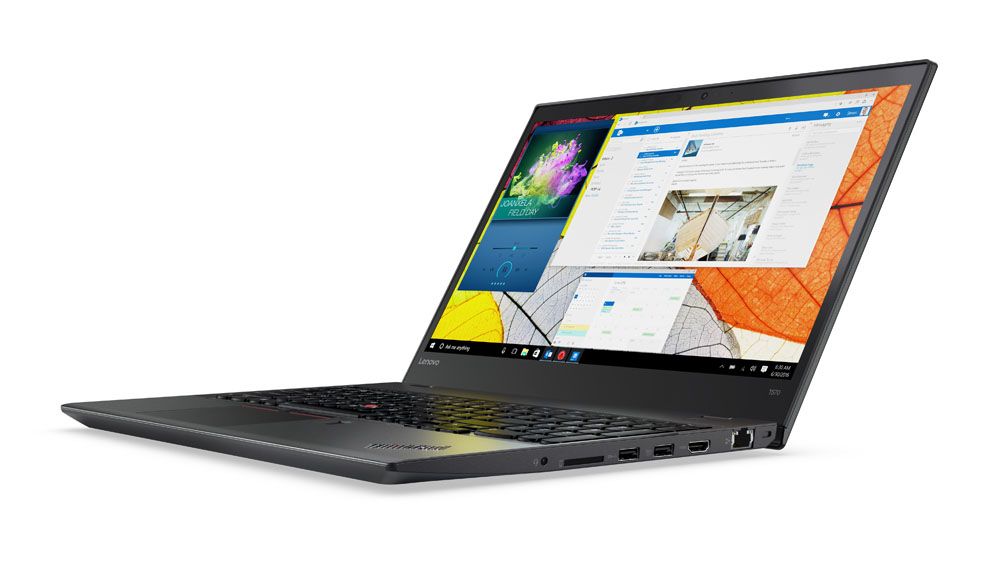

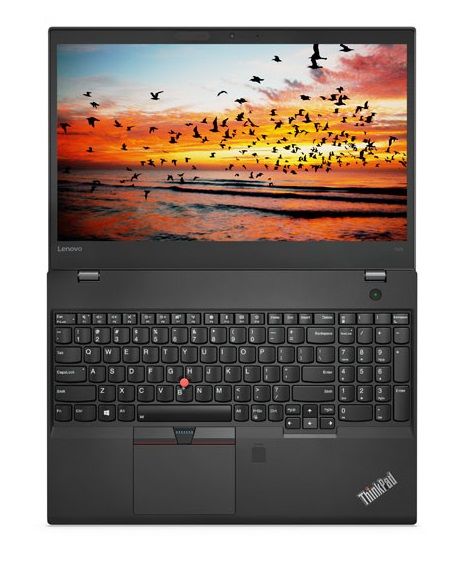

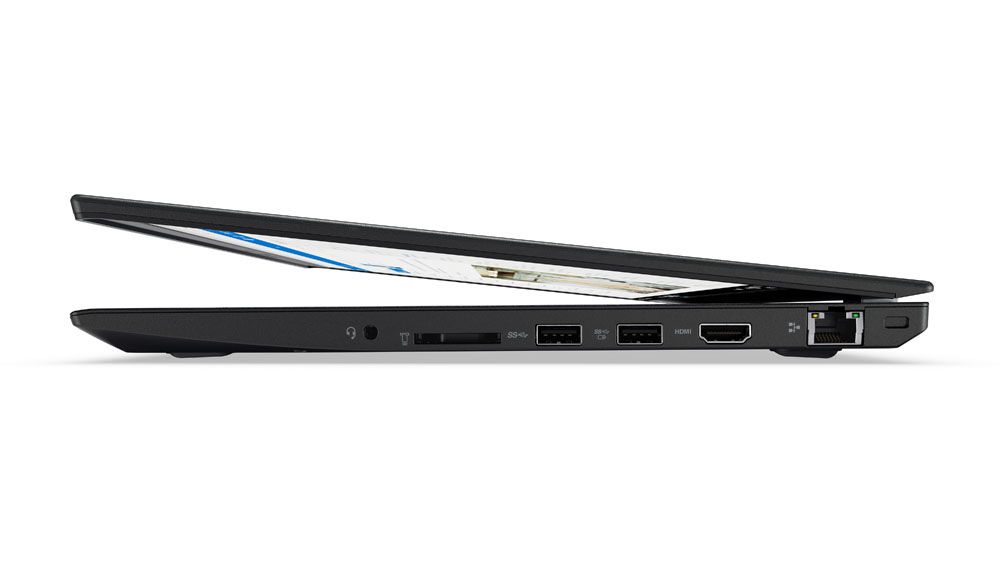

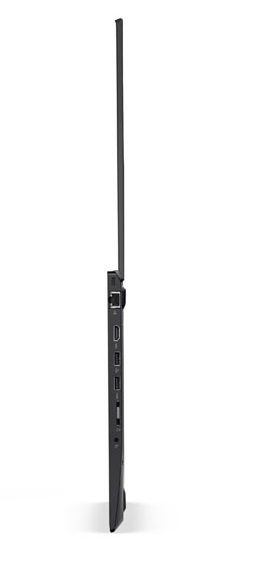

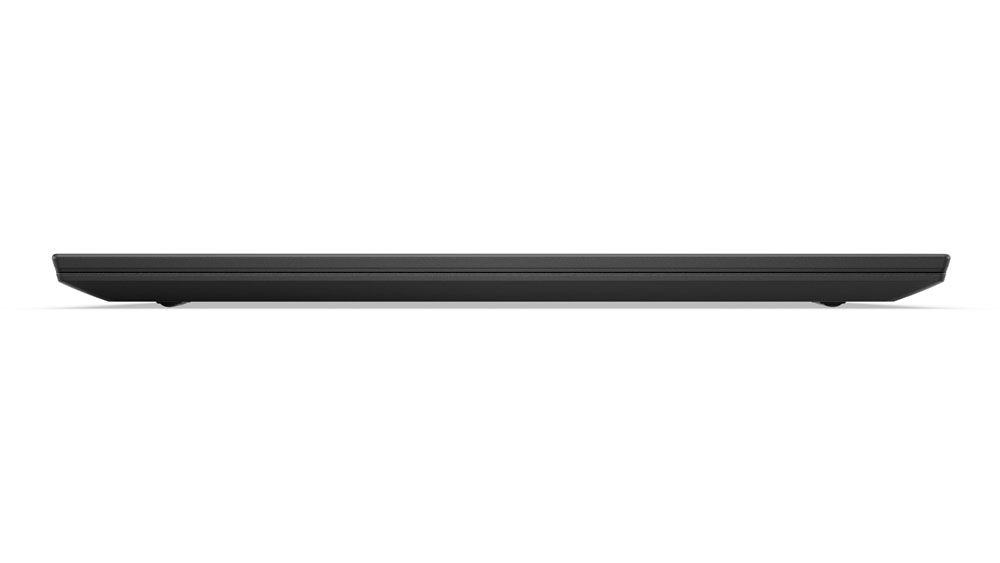

Lenovo ThinkPad T570 - 20H9001DMX
Lenovo ThinkPad T570
Product code: 20H9001DMX
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i5-7200U
- 🎫Internal memory: 8 GB
- 🎮On-board graphics adapter model: Intel HD Graphics 620
- 🎮Discrete graphics adapter model: NVIDIA GeForce 940MX
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.97 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Business |
| Housing material | Glass fibre |
| Display | |
| Display diagonal | 15.6 inch |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | T |
| Model name | T570 |
| Part Number | 20H9001DMX |
| Release Date | 12 February 2017 |
| Price | About 1981 USD |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 2.5 GHz |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 3.1 GHz |
| Processor codename | Kaby Lake |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-7200U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 3 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 2.7 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 7th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2133 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Maximum internal memory (64-bit) | 32 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter DirectX version | 12.0 |
| Discrete graphics adapter | Y |
| On-board graphics adapter model | Intel HD Graphics 620 |
| Discrete graphics adapter model | NVIDIA GeForce 940MX |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics card | Y |
| Discrete graphics card | Y |
| Discrete graphics card model | NVIDIA GeForce 940MX |
| On-board graphics card model | Intel HD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
| Discrete graphics card memory | 2 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| LightScribe | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.1 |
| WWAN | Installed |
| 4G | Y |
| 4G standard | LTE |
| 3G | Y |
| 3G standards | WCDMA |
| 2G standards | GSM |

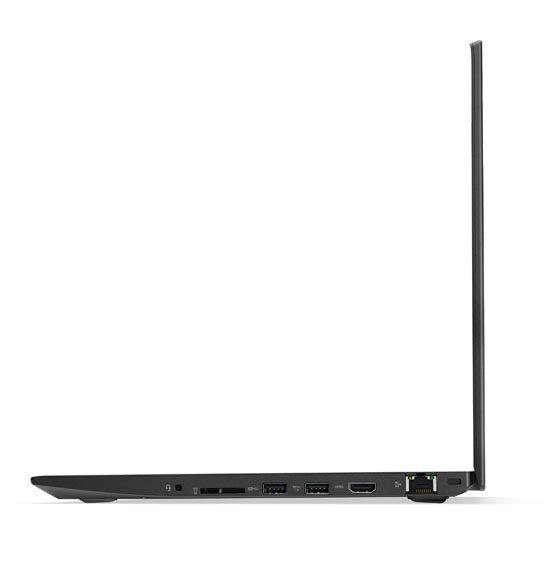

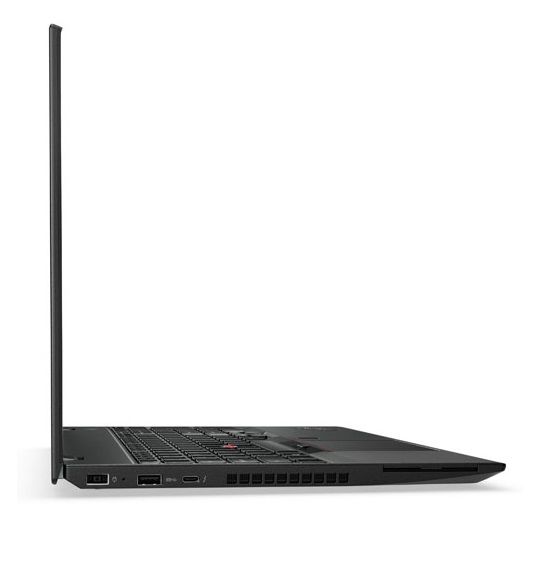

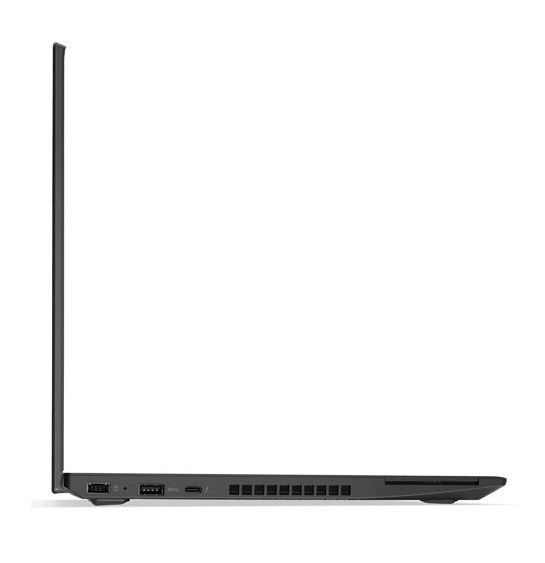

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Charging port type | DC-in jack |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI version | 1.4b |
| SmartCard slot | Y |
| USB Sleep-and-Charge ports | 1 |
| DVI port | N |
| Docking connector | Y |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3268 |
| Camera | |
| Front camera | Y |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera resolution (numeric) | 1 MP |

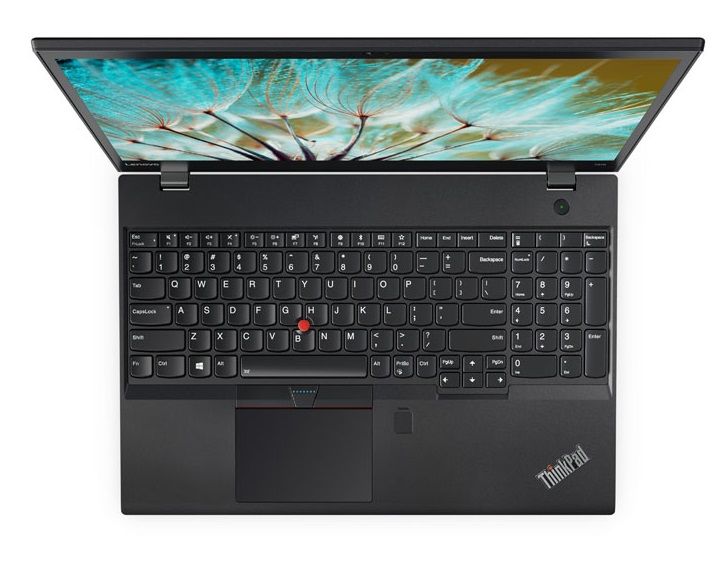

| Keyboard | |
| Numeric keypad | Y |
| Spill-resistant keyboard | Y |
| Full-size keyboard | Y |
| Spill resistant keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | ThinkPad UltraNav |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Trial software | McAfee LiveSafe |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3+4 |
| Battery life (max) | 13.8 h |
| Battery capacity | 56 Wh |
| Battery capacity (Watt hours) | 56 Wh |
| Weight & dimensions | |
| Weight | 1.97 kg |
| Height (rear) | 2.02 cm |
| Height (front) | 2 cm |
| Depth | 252.8 mm |
| Width | 365.8 mm |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Y |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | HDD, Power on, Supervisor |
Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
