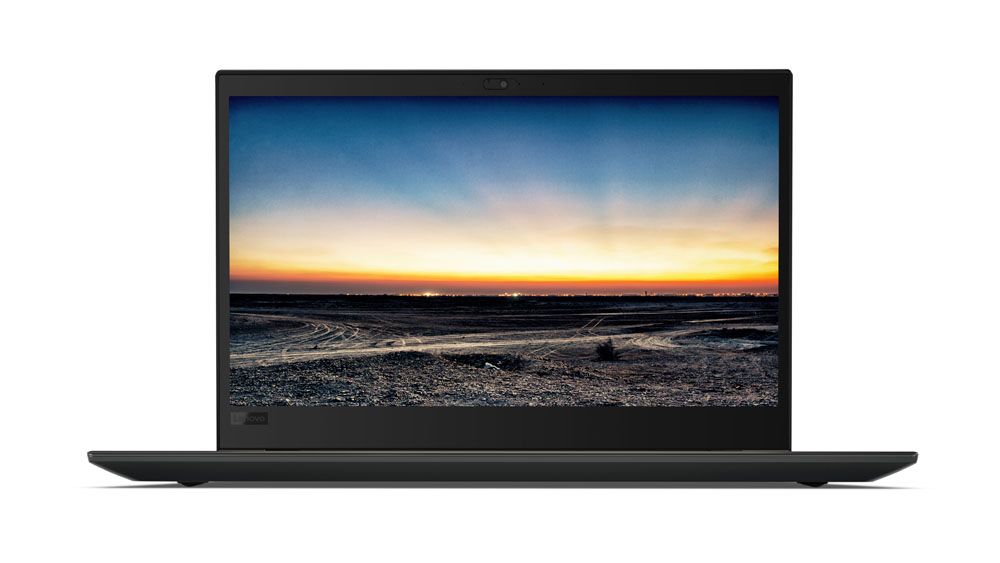

Lenovo ThinkPad T580 - 20L9003PMH
Lenovo ThinkPad T580
Product code: 20L9003PMH
- 💻Display diagonal: 15.6 inch
- 🔳Processor model: i5-8250U
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model: Intel UHD Graphics 620
- 🎮Discrete graphics adapter model: Not available
- 💽Total storage capacity: 256 GB
- ⚖️Weight: 1.95 kg
📊 Add to compare
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Colour of product | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 15.6 inch |
| Contrast ratio (typical) | 700:1 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Display surface | Matt |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| LED backlight | Y |
| Touchscreen | N |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | T |
| Model name | T580 |
| Part Number | 20L9003PMH |
| Release Date | 16 September 2018 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor frequency | 1.6 GHz |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 3.4 GHz |
| Processor codename | Kaby Lake R |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i5-8250U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| Processor lithography | 14 nm |
| Processor socket | BGA 1356 |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Processor generation | 8th gen Intel Core i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Graphics | |
| On-board graphics adapter | Y |
| Discrete graphics adapter | N |
| On-board graphics adapter model | Intel UHD Graphics 620 |
| Discrete graphics adapter model | Not available |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
| Storage | |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Solid-state drive capacity | 256 GB |
| Card reader integrated | Y |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | Y |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 4.1 |
| 4G | Y |
| 4G standard | LTE |
| 3G | Y |
| 3G standards | DC-HSDPA, HSPA, HSUPA, UMTS |
| 2G standards | Edge, GPRS, GSM |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| Microphone in | N |
| HDMI version | 1.4b |
| SmartCard slot | Y |
| USB Sleep-and-Charge ports | 1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Sleep-and-Charge | Y |
| Audio | |
| Built-in microphone | Y |
| Audio system | Dolby Audio Premium |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3287 |
| Camera | |
| Front camera | Y |
| Front camera HD type | HD |
| Front camera signal format | 720p |
| Keyboard | |
| Numeric keypad | Y |
| Spill-resistant keyboard | Y |
| Spill resistant keyboard | Y |
| Keyboard backlit | Y |
| Windows keys | Y |
| Pointing device | ThinkPad UltraNav |
| Performance | |
| GPS (satellite) | Y |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 13.8 V |
| Weight & dimensions | |
| Weight | 1.95 kg |
| Height (rear) | 2.02 cm |
| Height (front) | 2 cm |
| Depth | 252.8 mm |
| Width | 365.8 mm |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Cable lock slot | Y |
| Fingerprint reader | Y |
| Password protection | Y |
| Password protection type | HDD, Power on, Supervisor |
