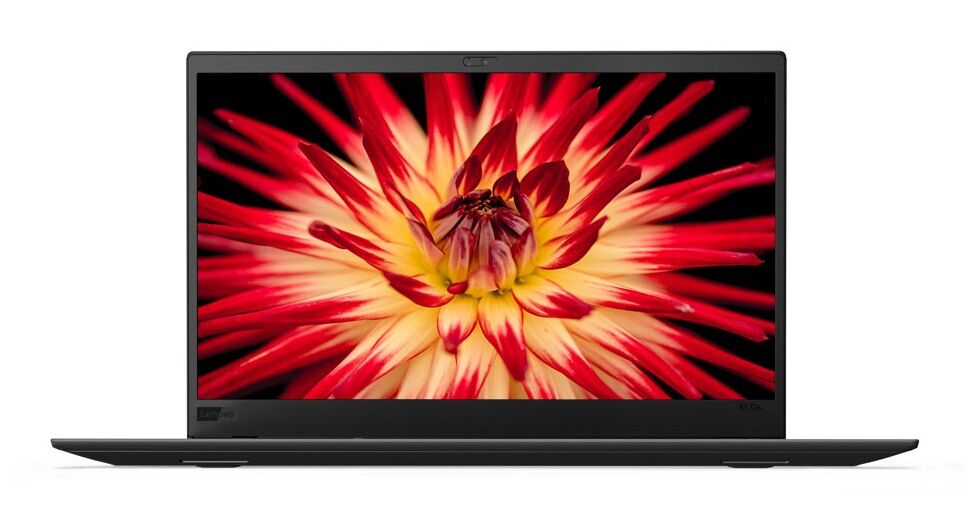

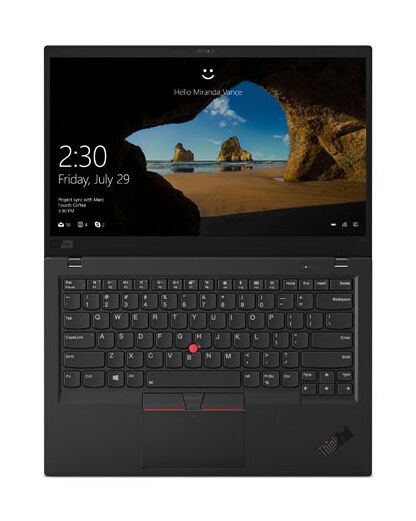

Lenovo ThinkPad X X1 Carbon - 20KHS35X00

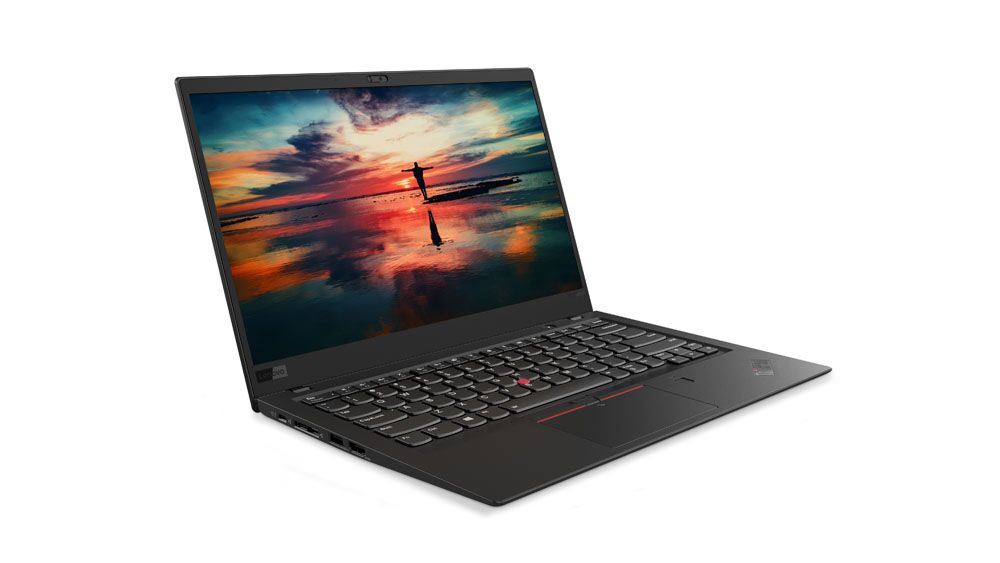

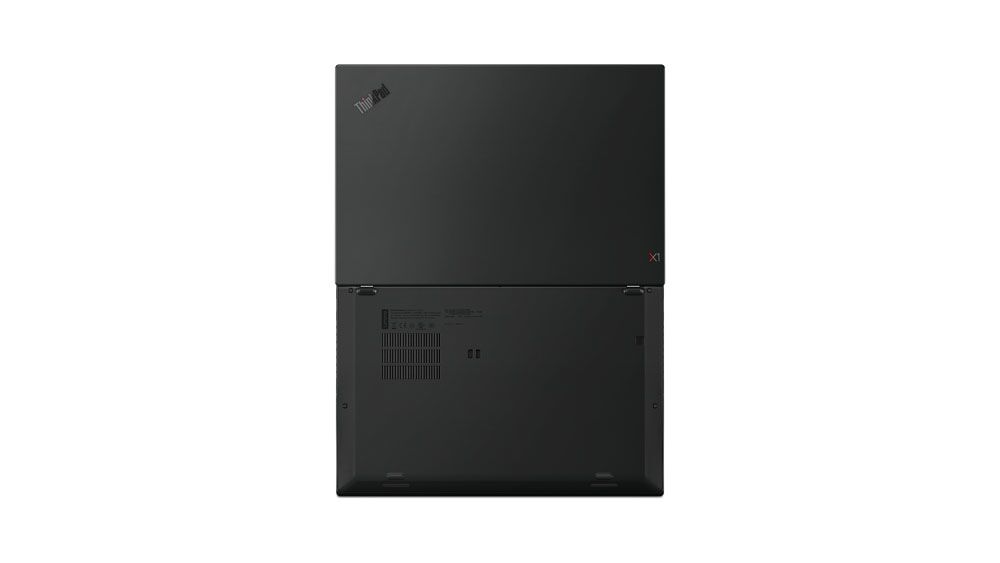

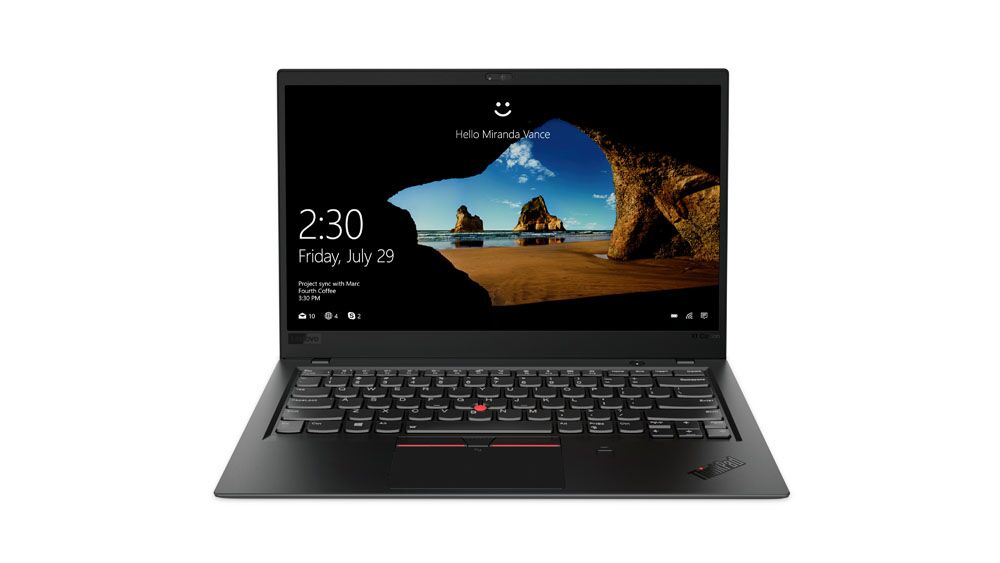

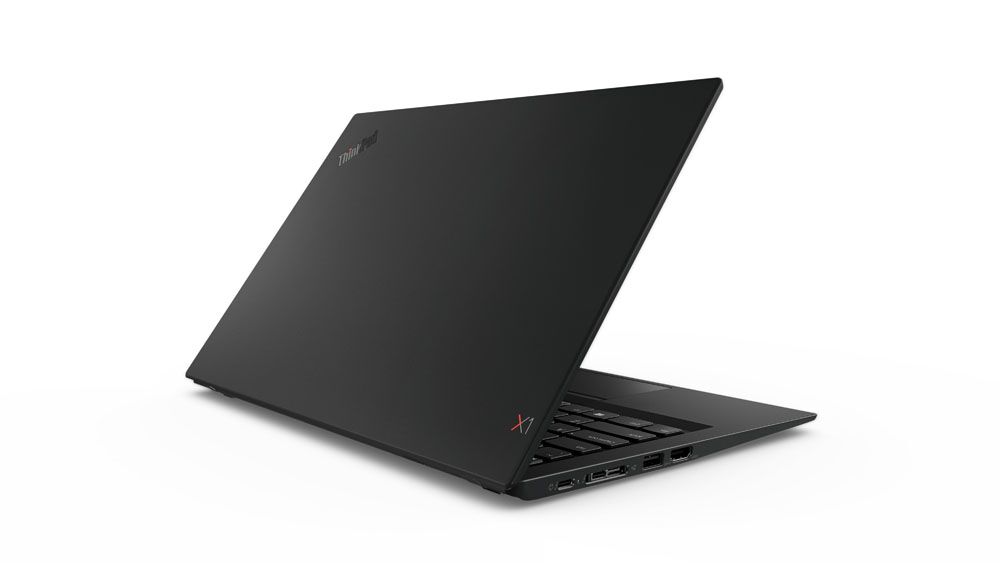

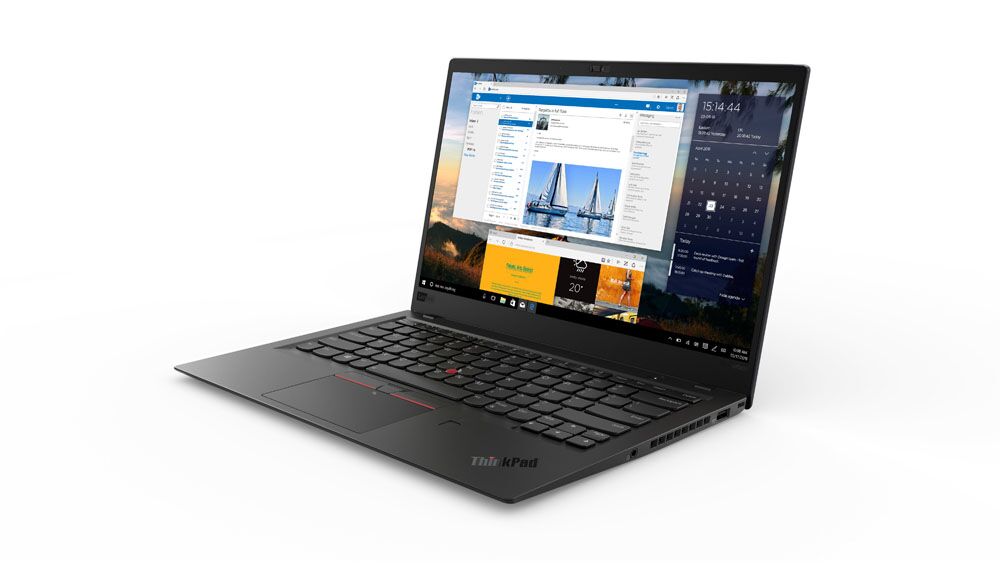

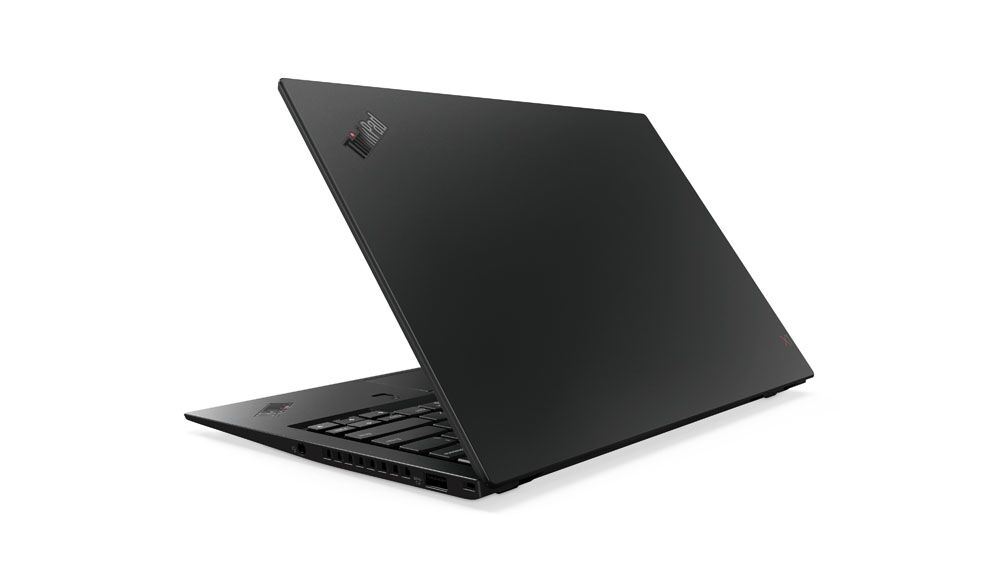

Lenovo ThinkPad X X1 Carbon

Product code: 20KHS35X00

  • Display diagonal: 14 inch
  • Processor: i7-8550U 1.8 GHz
  • Internal memory: 16 GB LPDDR3-SDRAM
  • Graphics:
  • Storage: 512 GB SSD
  • Battery: 19.3 hrs
  • Weight: 1.13 kg
📊 Add to compare

As an Amazon Associate I earn from qualifying purchases.

Specifications
Design
Product colourBlack
Product typeNotebook
Form factorClamshell
Market positioningBusiness
BrandLenovo
FamilyThinkPad
SeriesX
Model nameX1 Carbon
Part Number20KHS35X00
Release Date01 May 2019
Processor
Processor manufacturerIntel
Processor familyIntel Core i7
Processor frequency1.8 GHz
Motherboard chipsetIntel SoC
Processor boost frequency4 GHz
Processor codenameKaby Lake R
Thermal Design Power (TDP)15 W
Processor modeli7-8550U
Processor cores4
Processor threads8
Processor cache8 MB
Processor lithography14 nm
Processor socketBGA 1356
Configurable TDP-up frequency2 GHz
Configurable TDP-up25 W
Processor generation8th gen Intel Core i7
Memory
Internal memory typeLPDDR3-SDRAM
Internal memory16 GB
Memory form factorOn-board
Memory clock speed2133 MHz
Maximum internal memory16 GB
Display
Display diagonal14 inch
Panel typeIPS
LED backlightY
Native aspect ratio16:9
Graphics
On-board graphics card ID0x5917
On-board graphics cardY
Discrete graphics cardN
Discrete graphics card modelNot available
On-board graphics card modelIntel UHD Graphics 620
On-board graphics card familyIntel UHD Graphics
On-board graphics card base frequency300 MHz
On-board graphics card dynamic frequency (max)1150 MHz
Maximum on-board graphics card memory32 GB
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.4
Storage
Total storage capacity512 GB
Number of SSDs installed1
SSD capacity512 GB
Total SSDs capacity512 GB
Compatible memory cardsMicroSD (TransFlash)
Card reader integratedY
Storage mediaSSD
Optical drive
Optical drive typeN
Networking
Ethernet LANN
Wi-FiY
WLAN controller modelIntel Dual Band Wireless-AC 8265
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type2x2
BluetoothY
Bluetooth version4.1

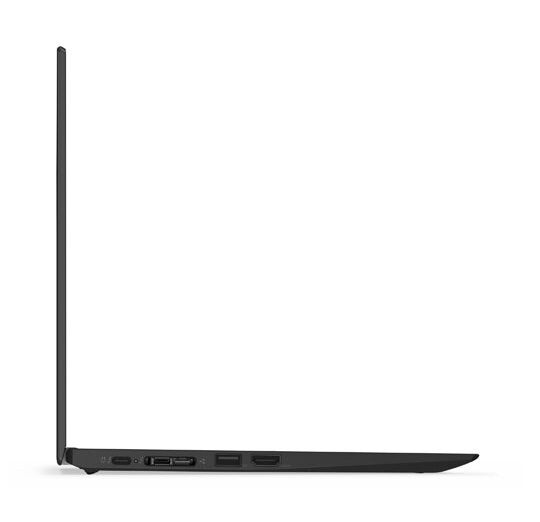

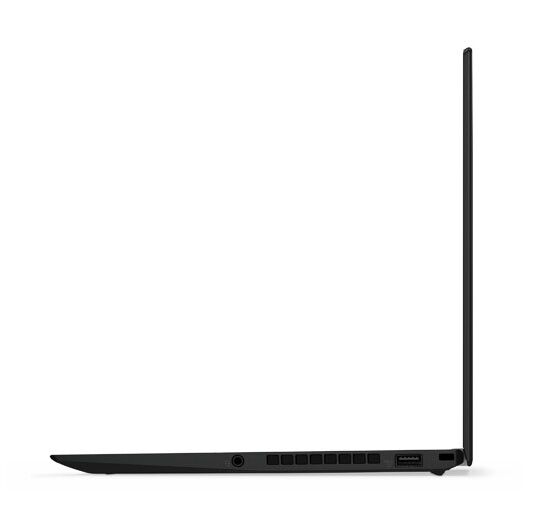

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Headphone outputs1
Microphone inN
HDMI version1.4b
USB Sleep-and-Charge ports1
Combo headphone/mic portY
HDMI ports quantity1
USB Sleep-and-ChargeY
Audio
Built-in microphoneY
Number of built-in speakers2
Audio systemDolby Audio Premium
Speaker power1 W
Camera
Front cameraY
Front camera HD typeHD
Front camera signal format720p
Keyboard
Numeric keypadN
Spill-resistant keyboardY
Keyboard backlitY
Windows keysY
Pointing deviceThinkPad UltraNav
Software
Operating system installedWindows 10 Pro
Operating system architecture64-bit
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity (Watt-hours)57 Wh
Battery life (max)19.3 h
Weight & dimensions
Weight1.13 kg
Height15.9 mm
Depth217.1 mm
Width323.5 mm
Security
Cable lock slotY
Fingerprint readerY
Password protectionY
Password protection typeHDD, Power on, Supervisor

Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
