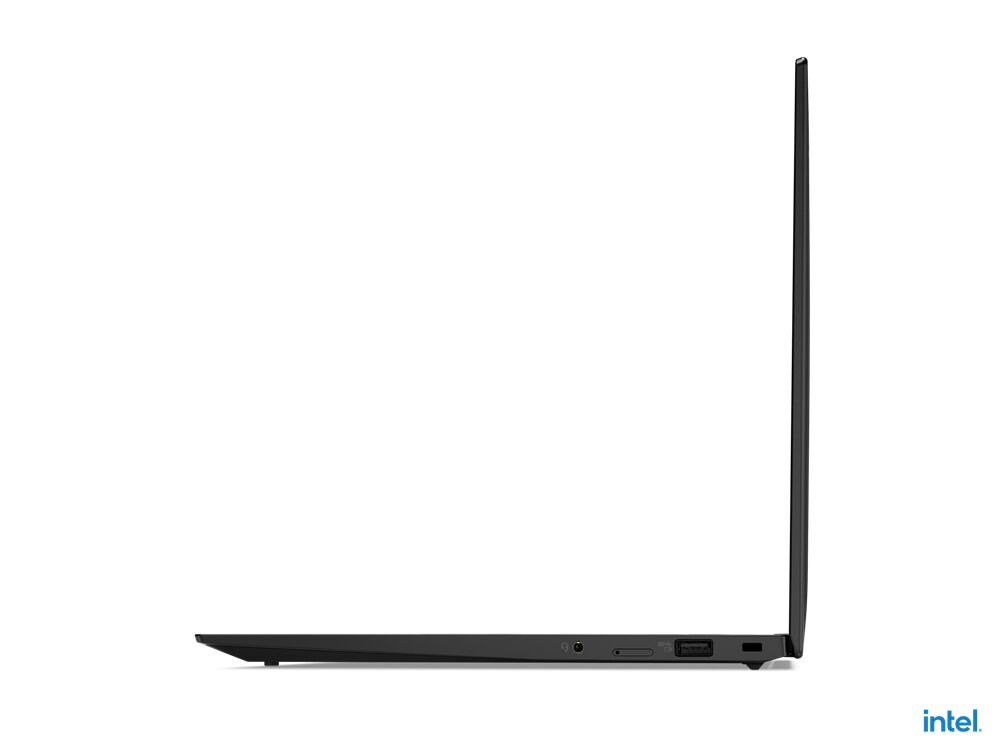

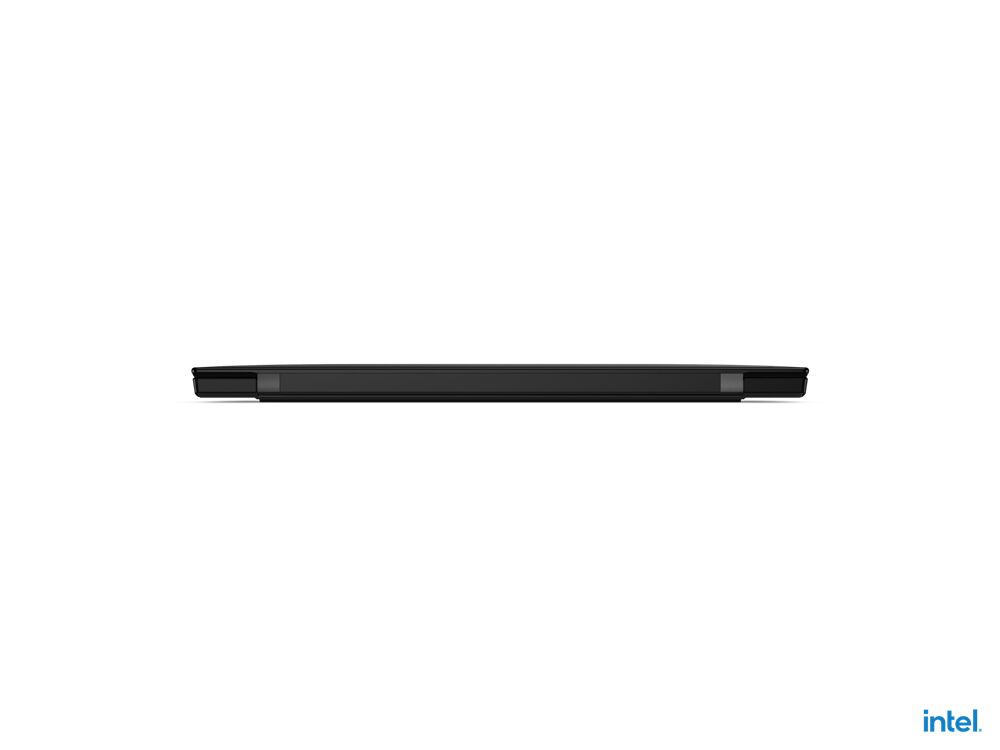

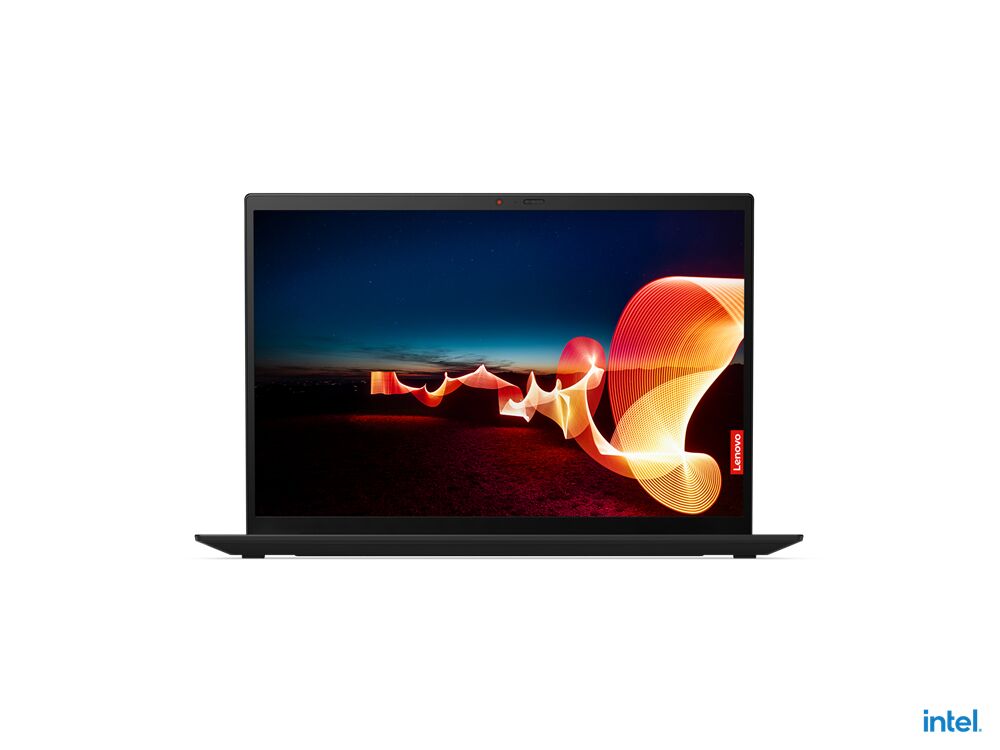

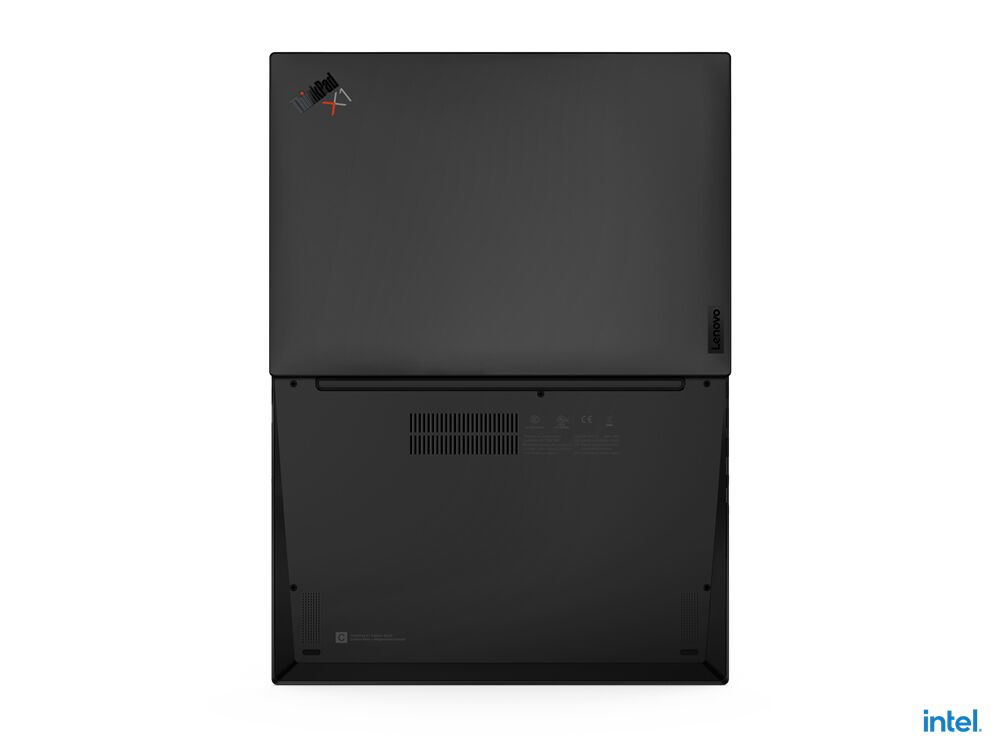

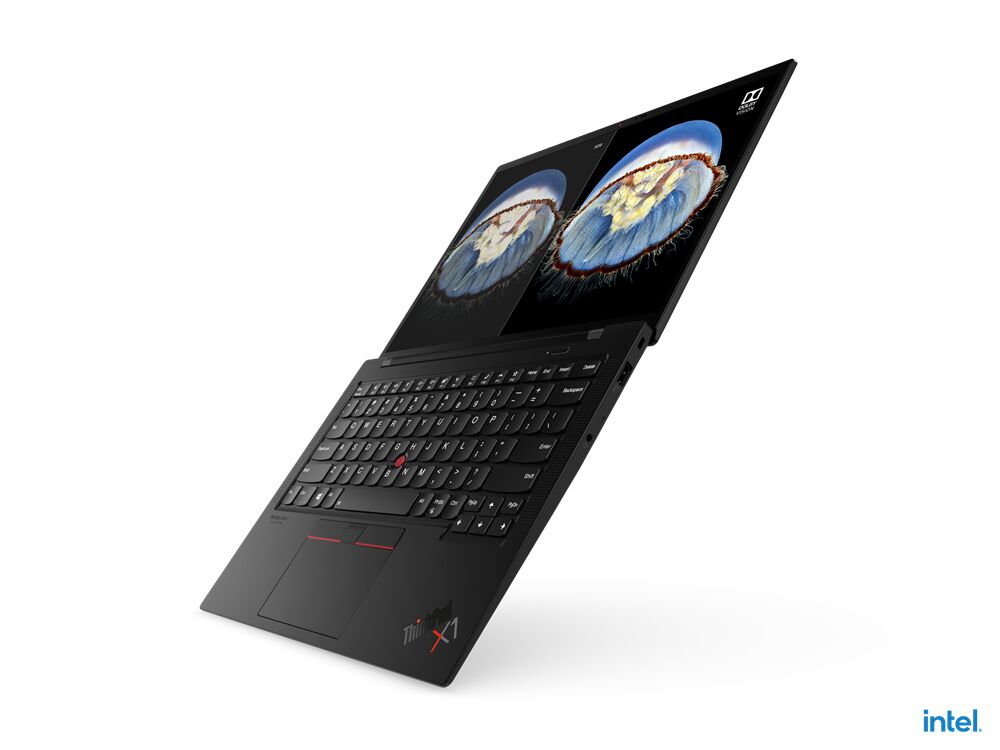

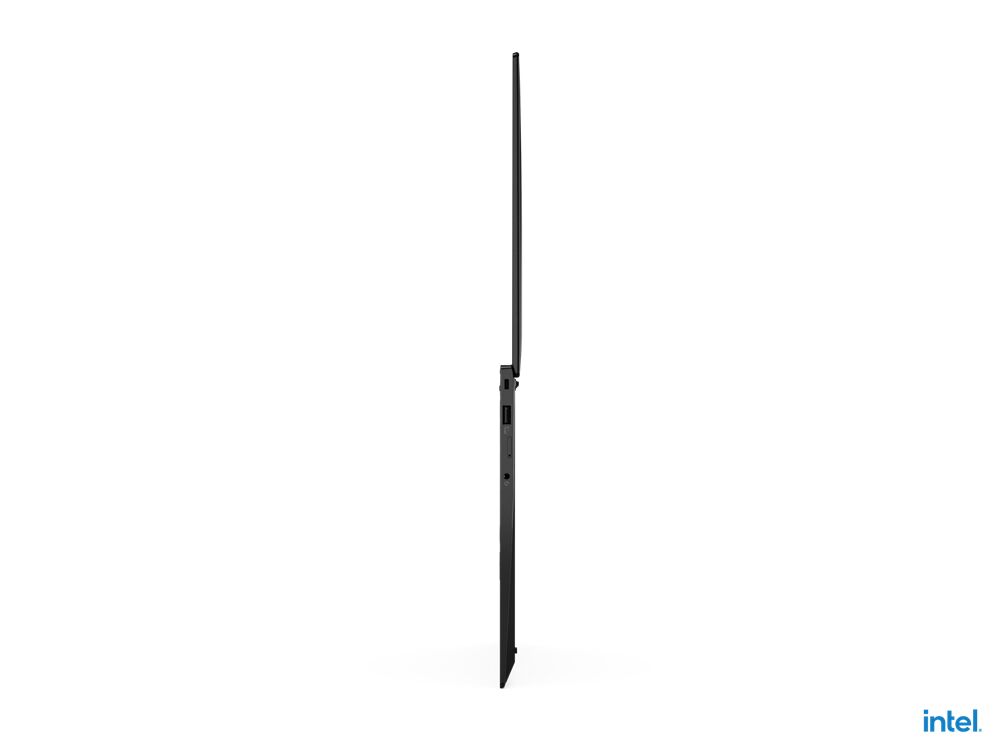

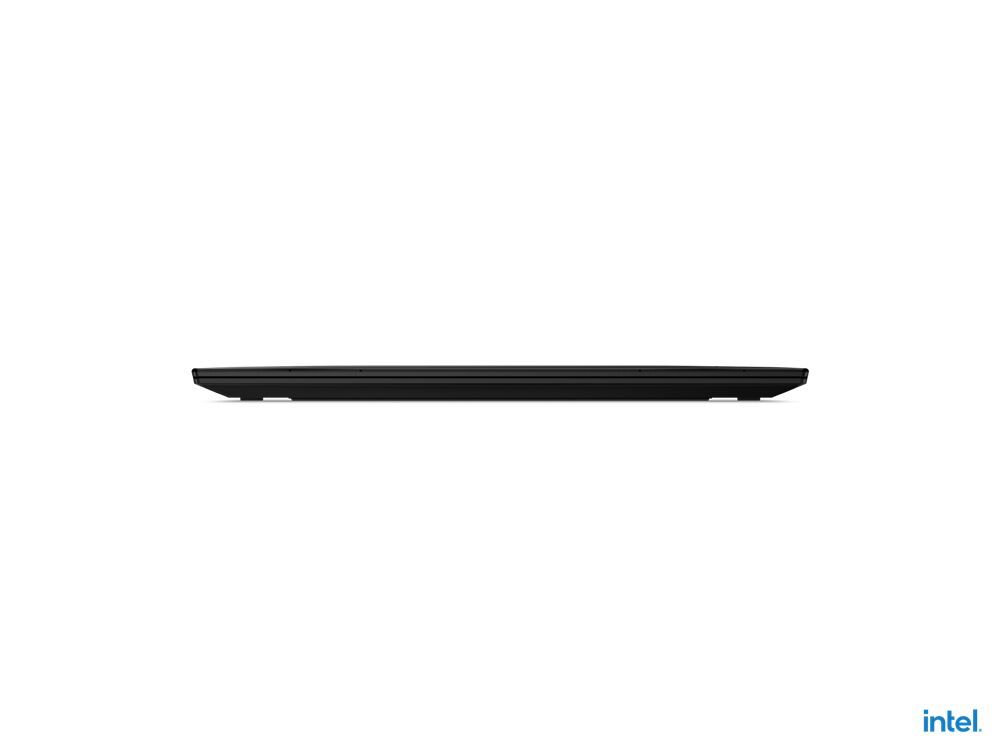

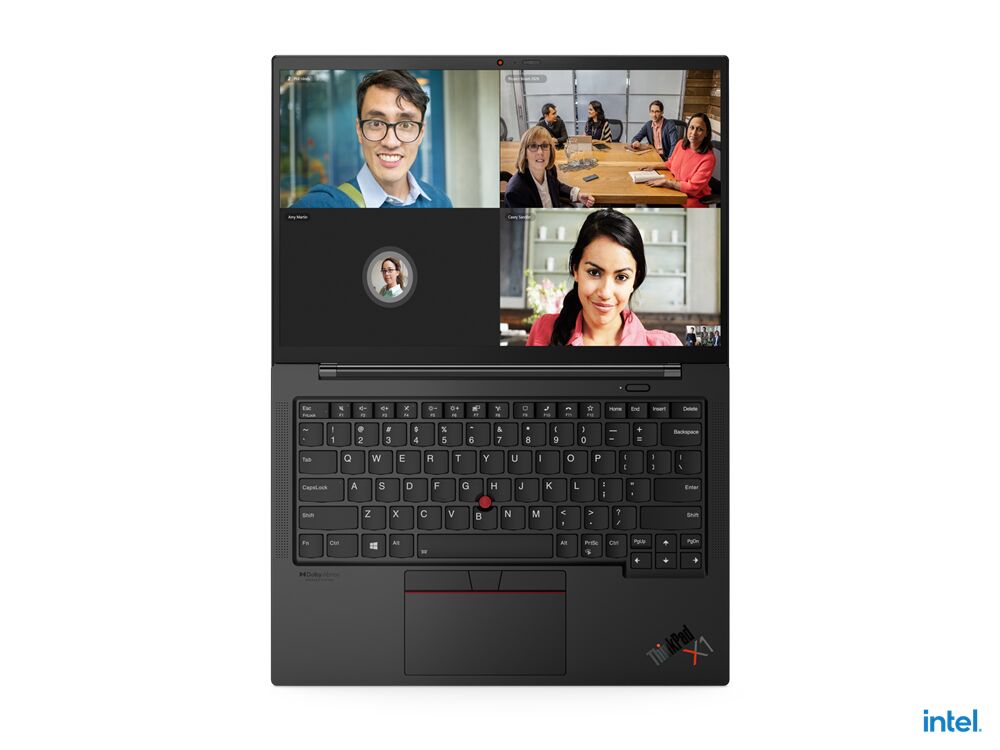

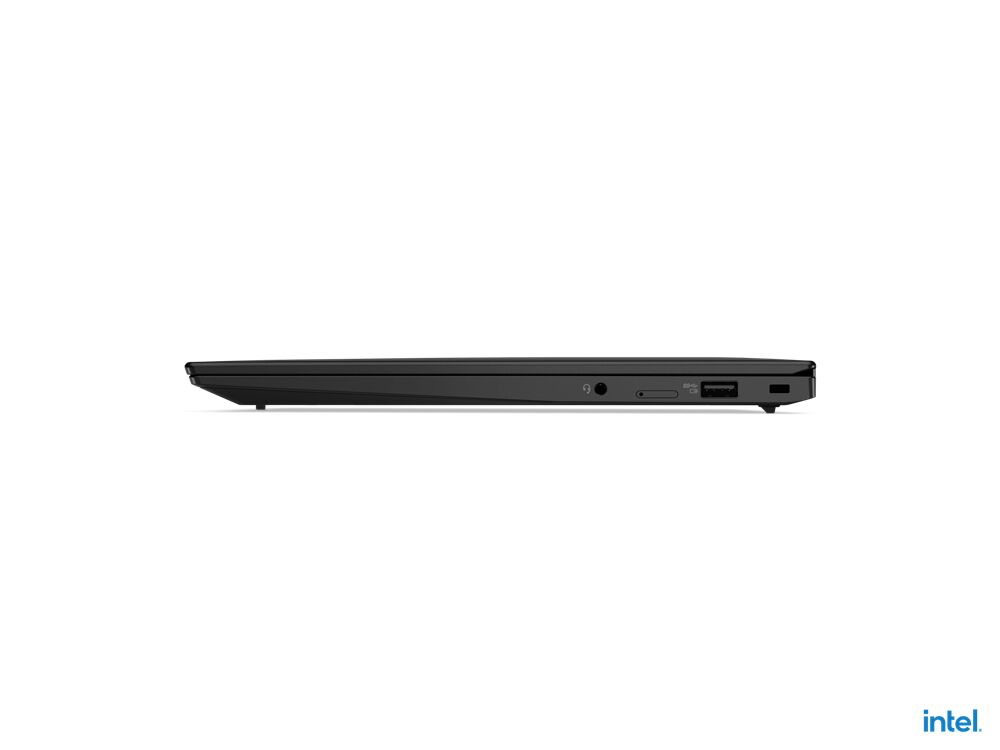

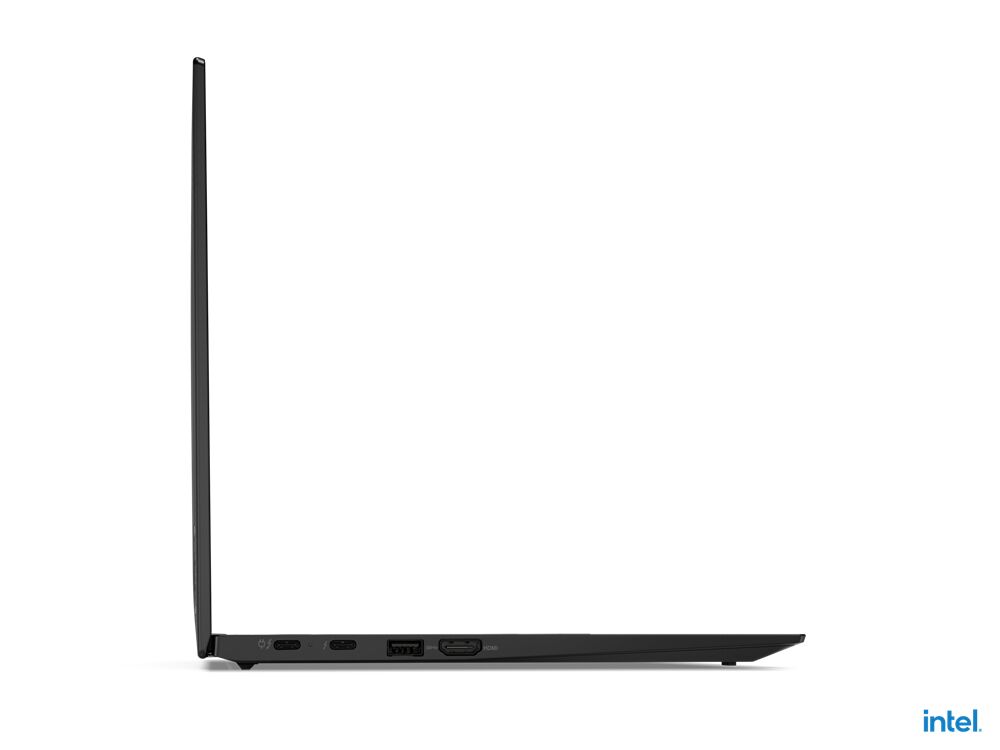

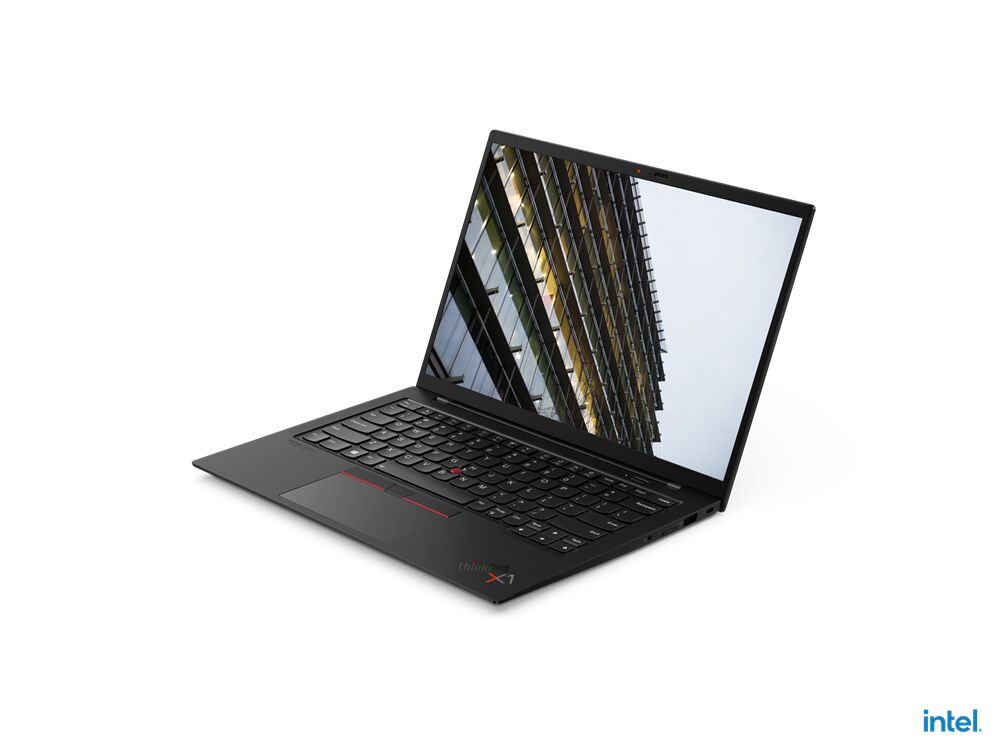

Lenovo ThinkPad X1 Carbon - 20XW0057PB

Lenovo ThinkPad X1 Carbon

Product code: 20XW0057PB

  • Display diagonal: 14 inch
  • Processor: i7-1165G7 2.8 GHz
  • Internal memory: 32 GB LPDDR4x-SDRAM
  • Graphics:
  • Storage: 1000 GB SSD
  • Battery: 16.7 hrs
  • Weight: 1.13 kg
📊 Add to compare

As an Amazon Associate I earn from qualifying purchases.

Specifications
Design
Product colourBlack
Product typeNotebook
Form factorClamshell
Housing materialCarbon fibre, Magnesium
BrandLenovo
FamilyThinkPad
SeriesX
Model nameX1 Carbon
Part Number20XW0057PB
Release Date08 February 2022
EAN/UPC code0195713376990, 195713376990
Processor
Processor manufacturerIntel
Processor familyIntel Core i7
Processor frequency2.8 GHz
Processor boost frequency4.7 GHz
Processor modeli7-1165G7
Processor cores4
Processor cache12 MB
Configurable TDP-up frequency2.8 GHz
Configurable TDP-up28 W
Memory
Internal memory typeLPDDR4x-SDRAM
Internal memory32 GB
Memory form factorOn-board
Memory clock speed4266 MHz
Maximum internal memory32 GB
Display
Display diagonal14 inch
Contrast ratio (typical)1500:1
Display brightness500 cd/m²
Panel typeIPS
Display surfaceGloss
HD typeWQUXGA
LED backlightY
TouchscreenN
Display resolution3840 x 2400 pixels
High Dynamic Range (HDR) technologyHigh Dynamic Range (HDR) 400
RGB colour spaceDCI-P3
Colour gamut100%
Native aspect ratio16:10
Graphics
On-board graphics cardY
Discrete graphics cardN
Discrete graphics card modelNot available
On-board graphics card modelIntel Iris Xe Graphics
Storage
Total storage capacity1000 GB
Number of SSDs installed1
SSD capacity1000 GB
Total SSDs capacity1000 GB
SSD interfaceNVMe, PCI Express 4.0
SSD form factorM.2
Card reader integratedN
Storage mediaSSD
Optical drive
Optical drive typeN
Networking
WLAN controller modelIntel Wi-Fi 6 AX201
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
Antenna type2x2
BluetoothY
Bluetooth version5.2
WWANY
4G standardLTE
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB Power DeliveryY
HDMI version2.0
USB Sleep-and-Charge ports1
Combo headphone/mic portY
HDMI ports quantity1
USB Type-C DisplayPort Alternate ModeY
USB Sleep-and-ChargeY
Thunderbolt 4 ports quantity2
Audio
Built-in microphoneY
Number of built-in speakers2
Audio systemDolby Atmos
Speaker power2 W
Audio chipRealtek ALC3306
Number of microphones4
Built-in subwooferN
Camera
Front cameraY
Privacy cameraY
Infrared (IR) cameraY
Front camera HD typeHD
Privacy typePrivacy shutter
Keyboard
Numeric keypadN
Spill-resistant keyboardY
Keyboard layoutQWERTY
Keyboard backlitY
Pointing deviceThinkPad UltraNav
Keyboard languageEnglish
Software
Operating system installedWindows 10 Pro
Operating system languageEnglish, Polish
Operating system architecture64-bit
Battery
Battery technologyLithium Polymer (LiPo)
Battery capacity (Watt-hours)57 Wh
Battery life (max)16.7 h
Fast chargingY
Weight & dimensions
Weight1.13 kg
Height14.9 mm
Depth221.6 mm
Width315 mm
Power
AC adapter power65 W
Security
Cable lock slotY
Smart card readerN
Cable lock slot typeKensington
Fingerprint readerY
Trusted Platform Module (TPM)Y
Password protectionY
Password protection typeBIOS, Power on, SSD, Supervisor
Trusted Platform Module (TPM) version2.0

Disclaimer: Although we try to make the information as accurate as posible we do not guarantee it is 100% correct.
