Lenovo ThinkPad X1 Carbon Gen 9 - 20XW00JSUK

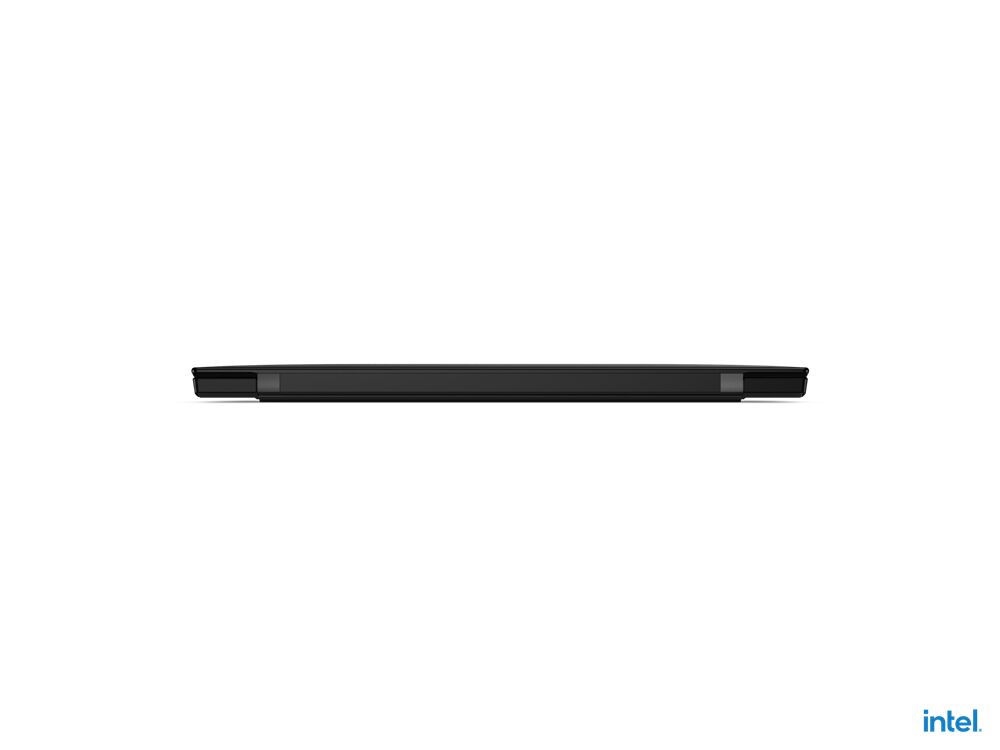

Lenovo ThinkPad X1 Carbon Gen 9
Product code: 20XW00JSUK
- 💻Display diagonal: 14 inch
- 🔳Processor model: i7-1165G7
- 🎫Internal memory: 16 GB
- 🎮On-board graphics adapter model:
- 🎮Discrete graphics adapter model:
- 💽Total storage capacity: 512 GB
- ⚖️Weight: 1.13 kg
📊 Add to compare
As an Amazon Associate I earn from qualifying purchases.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Product type | Notebook |
| Form factor | Clamshell |
| Housing material | Carbon fibre, Magnesium |
| Display | |
| Display diagonal | 14 inch |
| Display brightness | 500 cd/m² |
| Panel type | IPS |
| Display surface | Gloss |
| HD type | WQUXGA |
| Touchscreen | N |
| Display resolution | 3840 x 2400 pixels |
| Brand | Lenovo |
| Family | ThinkPad |
| Series | X |
| Model name | X1 Carbon Gen 9 |
| Part Number | 20XW00JSUK |
| Release Date | 22 January 2022 |
| EAN/UPC code | 0196119989906, 196119989906 |
|
|
|
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor frequency | 2.8 GHz |
| Motherboard chipset | Intel SoC |
| Processor boost frequency | 4.7 GHz |
| Processor model | i7-1165G7 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 2.8 GHz |
| Configurable TDP-up | 28 W |
| Processor generation | 11th gen Intel Core i7 |
| Memory | |
| Internal memory type | LPDDR4x-SDRAM |
| Internal memory | 16 GB |
| Memory form factor | On-board |
| Memory clock speed | 4266 MHz |
| Maximum internal memory | 16 GB |
| Memory channels | Octa-channel |
| Graphics | |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| Storage | |
| Total storage capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| SSD interface | NVMe, PCI Express 4.0 |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive | |
| Optical drive type | N |
| Networking | |
| Ethernet LAN | N |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11ad, 802.11b, Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Charging port type | DC-in jack |
| Headphone outputs | 1 |
| Microphone in | Y |
| HDMI version | 2.0 |
| Combo headphone/mic port | Y |
| HDMI ports quantity | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Audio | |
| Built-in microphone | Y |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Speaker power | 2 W |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 4 |
| Camera | |
| Front camera | Y |
| Privacy type | Privacy shutter |
| Front camera resolution | 1280 x 720 pixels |
| Keyboard | |
| Numeric keypad | N |
| Keyboard backlit | Y |
| Keyboard language | English |
| Software | |
| Operating system installed | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | Y |
| Battery | |
| Battery capacity (Watt-hours) | 57 Wh |
| Battery life (max) | 26 h |
| Weight & dimensions | |
| Weight | 1.13 kg |
| Height | 14.9 mm |
| Depth | 221.6 mm |
| Width | 315 mm |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Cable lock slot | Y |
| Smart card reader | N |
| Cable lock slot type | Kensington |
| Fingerprint reader | Y |
| Trusted Platform Module (TPM) | Y |
| Password protection | Y |
| Password protection type | User |
| Trusted Platform Module (TPM) version | 2.0 |
